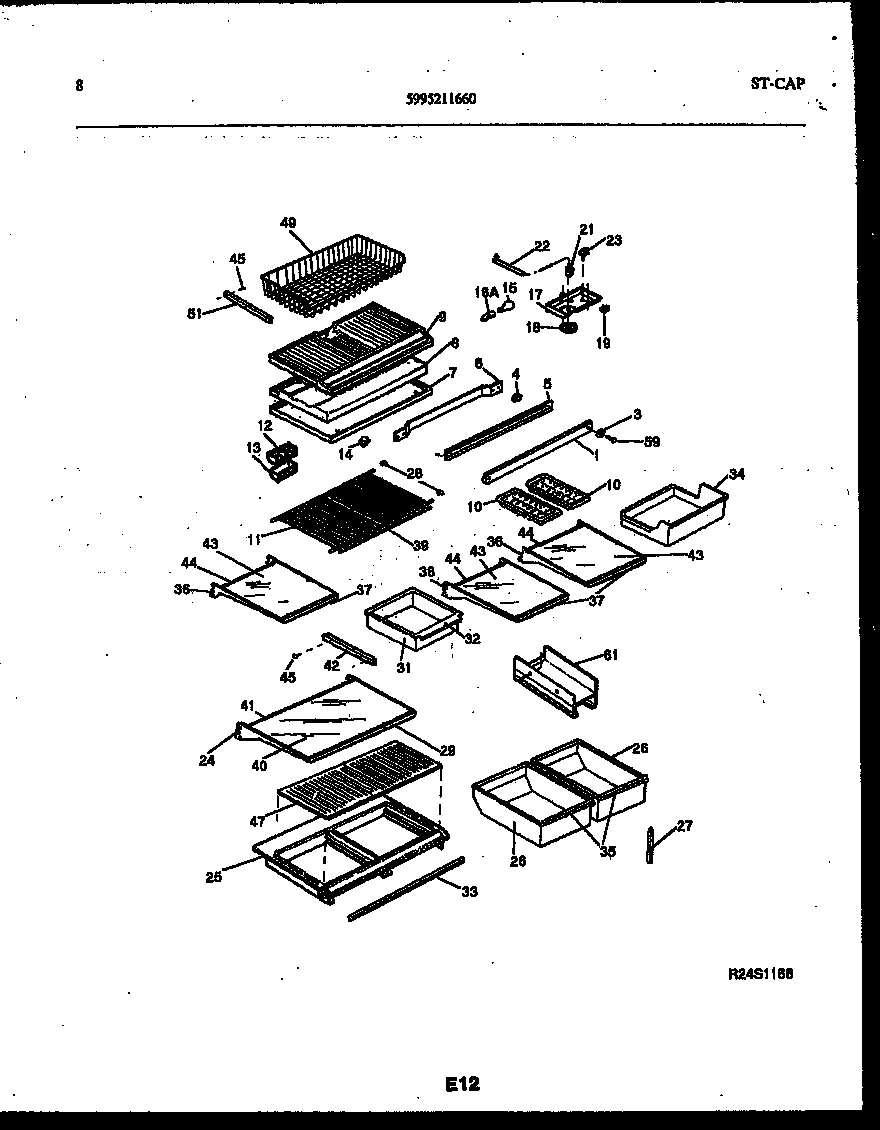

RT219PCD0 05 – SHELVES AND SUPPORTS

RT219PCD0 05 – SHELVES AND SUPPORTS

Written by

in

RT219PCD0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*53665WCI 5303280075
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7WCI 5303001380
7WCI 3019038
8HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8WCI 5303019039
93205266 Frigidaire Refrigerator Edge Protector
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF
12EXTENSION, AIR DEFLECTOR, WITH INSULATION
125303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
175304455650 Frigidaire Refrigerator Screw
17WCI 3206130
18WCI 5303209251
19WCI 3206129
21WCI 5303018894
21WCI 5303001260
22WCI 3018891
235304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24CLIP-CANTILEVER SHLF
24FRAME-FULL SHELF, CANTILEVER, (2)
25WCI 5303206538
26WCI 5303279508
26WCI 5303280260
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 5303280077
31WCI 5303279570
32WCI 5303280134
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
345303212918 Frigidaire Refrigerator Cont
35WCI 5303280133
35WCI 5303280130
36WCI 5303209266
36WCI 5303209270
37WCI 5303280076
37WCI 5303280078
39WCI 5303280082
40WCI 5303209274
40WCI 5303280003
41WCI 5303210045
41LOCK-SHELF TRIM, REAR
42HANGER-PAN/BASKET, RH
42HANGER-PAN/BASKET, LH
43WCI 5303280002
43WCI 5303280004
43RETAINER-GLASS, (3) (NON-ILLUSTRATED)
44TRIM, REAR (2)
44TRIM-HALF SHELF, MEAT KPR SHELF, REAR
45WCI 08014528
47WCI 5303279701
49WCI 5303206649
51HANGER-BASKET, LH (NON-ILLUSTRATED)
51WCI 5303206521
59WCI 5308012258
61WCI 5318609501
53667WCI 5303280051
