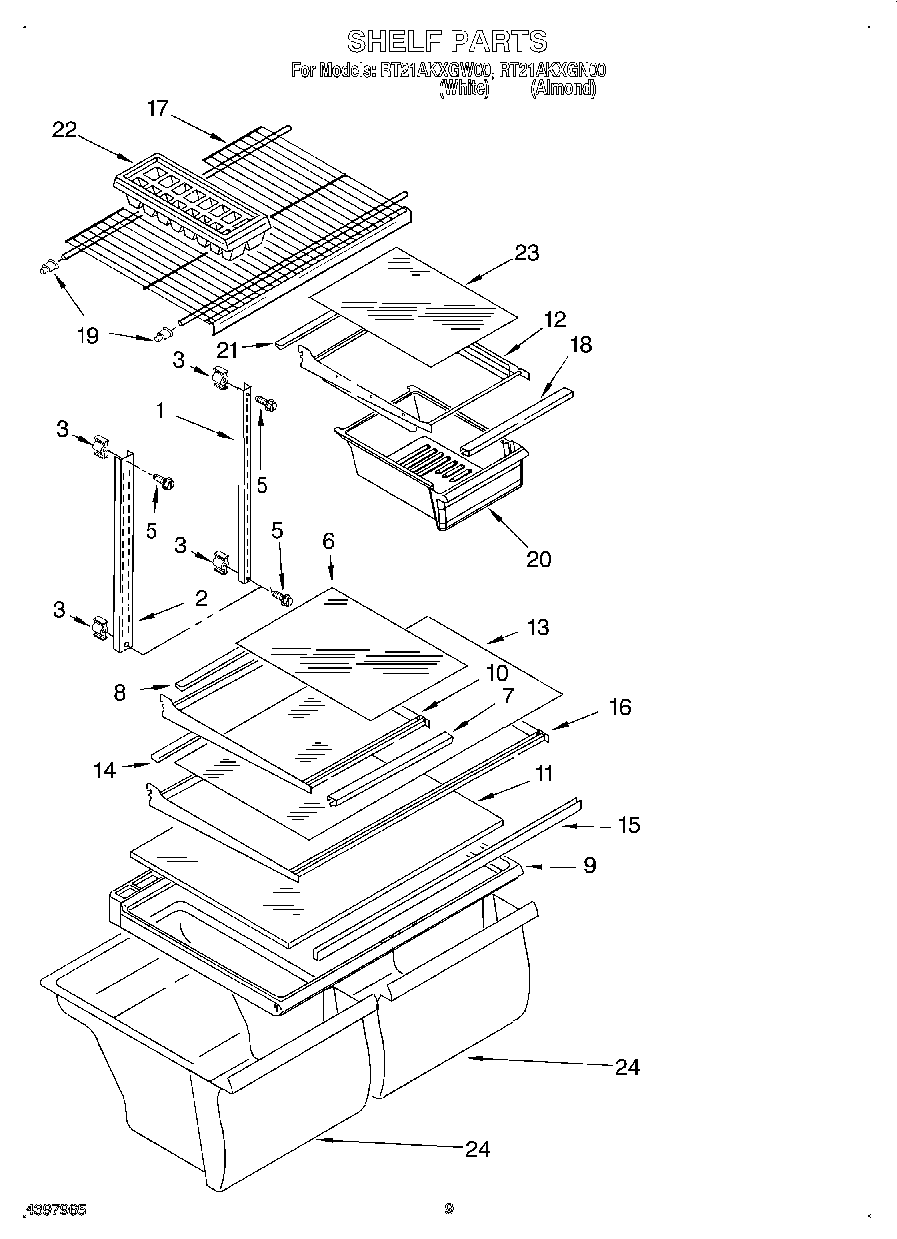

RT21AKXGW00 05 – SHELF, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	WPL LIT2195481
	WPL LIT2199064
	WPL LIT2195381
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	Support, Screw
5	W11544659 Whirlpool Refrigerator Screw
7	Trim, Shelf
9	WP2314549 Whirlpool Refrigerator Cover
10	Shelf, Cantilever
11	WP2176225 Whirlpool Glass Shelf
12	Pan Shelf, Cantilever
13	Glass, Full Shelf
14	Trim, Rear Shelf
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Full Cantilever
17	Shelf, Freezer
18	Trim, Shelf
19	2163762 Whirlpool Refrigerator Cup Assembly
20	WP2218132K Whirlpool Crisper Meat Pan
21	Trim, Shelf Rear
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Glass, Shelf
24	W10854037 Whirlpool Refrigerator Crisper Pan
100	WPL 876029
100	350942 Whirlpool Spray Paint
100	Almond (Uncut)
100	WP72107 Whirlpool Touchup
100	799344 Whirlpool Refrigerator Paint
100	212643 Whirlpool Refrigerator Permagum Sealer
100	72017 Whirlpool Appliance Touch-Up Paint White
100	350956 Whirlpool Spray Assembly
100	FeaturePak (Includes 6, 10, 12, 18, 20, 21, 23) Also See Door Page.
100	511873 Whirlpool Refrigerator Paint
100	Door Reversal Instructions
100	606755 Whirlpool Refrigerator Bag
100	WPL 799833
100	WPL 799832
100	285006 Whirlpool Spray
100	72032 Whirlpool Touch Up Paint Black
100	TAPE, VINYL (3/4 X 108“)
100	WP542638 Whirlpool Refrigerator Grease
100	WP505587 Whirlpool Refrigerator Sealer
100	CEMENT, ALUMILASTIC (1 1/4 OZ.)
100	WP503695 Whirlpool Refrigerator Sealer
100	876370 Whirlpool Refrigerator Insulation
100	833938 Whirlpool Refrigerator Terminal
100	350930 Whirlpool White Spray Paint
