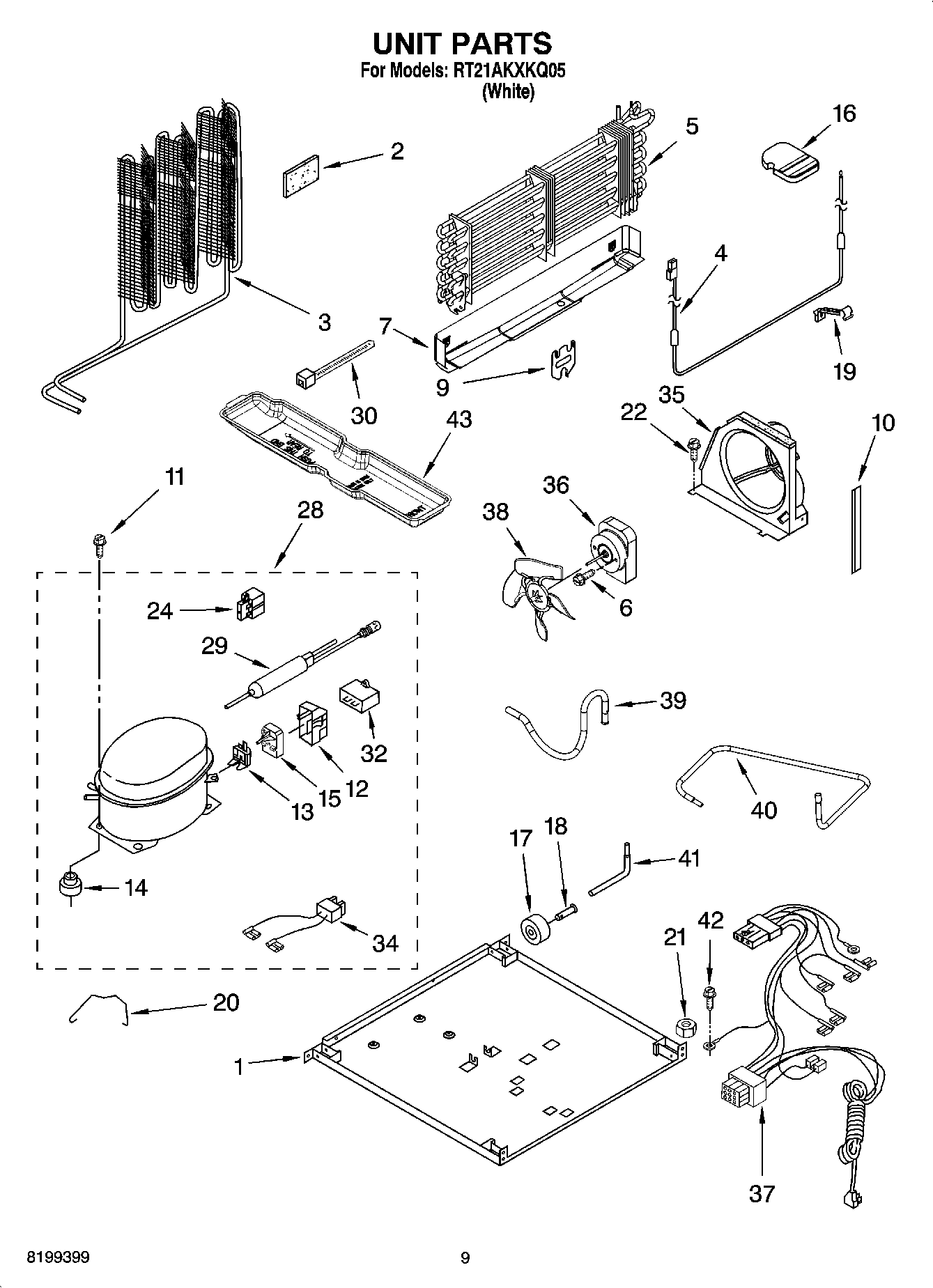

RT21AKXKQ05 06 – UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI127886A
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI127882A
WPL ARI127883A
WPL ARI127884A
WPL ARI127885A
WP505587 Whirlpool Refrigerator Sealer
350942 Whirlpool Spray Paint
350930 Whirlpool White Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
212643 Whirlpool Refrigerator Permagum Sealer
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
4392901 Whirlpool Biscuit Spray Paint
WP503695 Whirlpool Refrigerator Sealer
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
1Plate, Unit Mounting
2W11553819 Whirlpool Refrigerator Insulation
3WP2214960 Whirlpool Refrigerator Condenser
4WPW10140847 Whirlpool Refrigerator Heater
5Evaporator Assy.
6WPW10171469 Whirlpool Refrigerator Screw
7Drain Pan
9Bracket, Heater
10Extension, Air Baffle
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2214067 Whirlpool Refrigerator Overload Relay
14876811 Whirlpool Grommet
14WP4387558 Whirlpool Refrigerator Compressor Grommet
15WP2225785 Whirlpool Refrigerator Start Device
16Support Block
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
202212996 Whirlpool Refrigerator Retainer
21Nut (Not Serviced)
223400518 Whirlpool Oven Foot Mount Screw
24W10920279 Whirlpool Refrigerator Start Relay
28W10309988 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32WPW10662129 Whirlpool Refrigerator Run Capacitor
34WP2172890 Whirlpool Refrigerator Wire
35Air Baffle
36WP2188874 Whirlpool Refrigerator Condenser Motor
372187382 Whirlpool Refrigerator Wire Harness
38W11458267 Whirlpool Refrigerator Fan Blade
39Tube, Discharge
40Tube, Suction
412154109 Whirlpool Refrigerator Tube
42WP489128 Whirlpool Refrigerator Screw
43REFRIGERANT CHARGE 4.0 Ozs. (R134A)
43Following Parts Not Illustrated and Optional Parts Not Included
43VALVE, ACCESS (5/8“)
438201826 Whirlpool Refrigerator Evaporator Tray
43VALVE, ACCESS (1/2“)
43978026 Whirlpool Refrigerator Primary Valve
43WP978025 Whirlpool Refrigerator Valve
43978030 Whirlpool Refrigerator Valve
43876764 Whirlpool Refrigerator Primary Valve
43978027 Whirlpool Refrigerator Primary Valve
