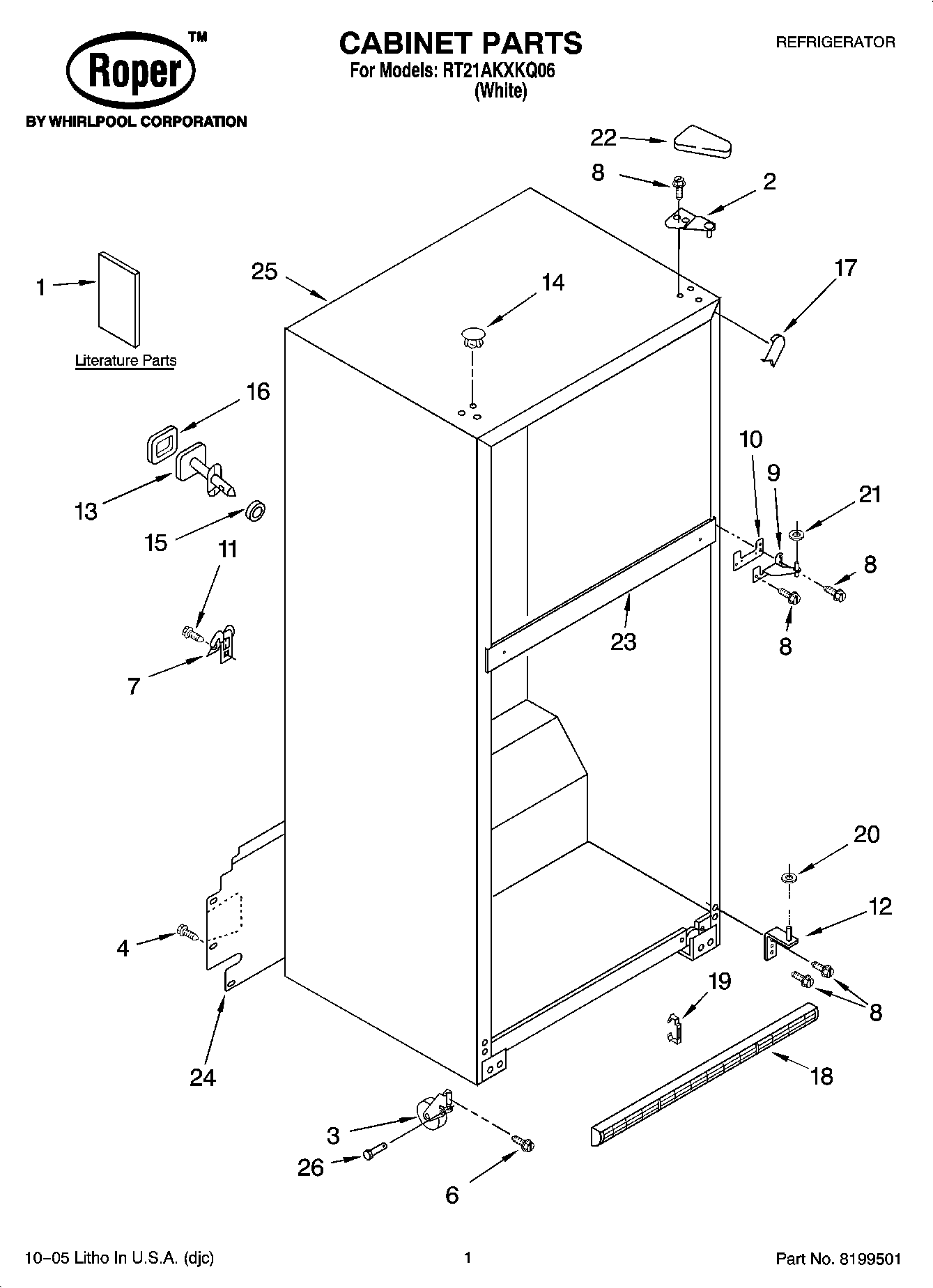

RT21AKXKQ06 01 – CABINET PARTS

Products

PositionProduct
1Energy Label
1Use & Care Guide
1Customer Instructions
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP489427 Whirlpool Refrigerator Screw
6WP3400504 Whirlpool Refrigerator Screw
7549193 Whirlpool Refrigerator Power Clamp
8WP489497 Whirlpool Screw
9WP2254618 Whirlpool Center Door Hinge
10WP2183854 Whirlpool Refrigerator Shim
11WP489464 Whirlpool Refrigerator Screw
12WP2254473 Whirlpool Refrigerator Door Hinge
13Fitting, Water Tube (Not Serviced)
14WP2151652 Whirlpool Refrigerator Button Plug
15Seal, Front (Not Serviced)
16Seal, Rear (Not Serviced)
17WPW10283959 Whirlpool Refrigerator Filler
18Grille (White)
19CLIP, GRILLE
20WP487576 Whirlpool Washer
21WP489467 Whirlpool Hinge Shim
22WP2213360 Whirlpool Refrigerator Cover
23Rail Center (Not Serviced)
24Cover, Unit
25Cabinet (Not A Serviceable Part)
26W11594405 Whirlpool Axle
