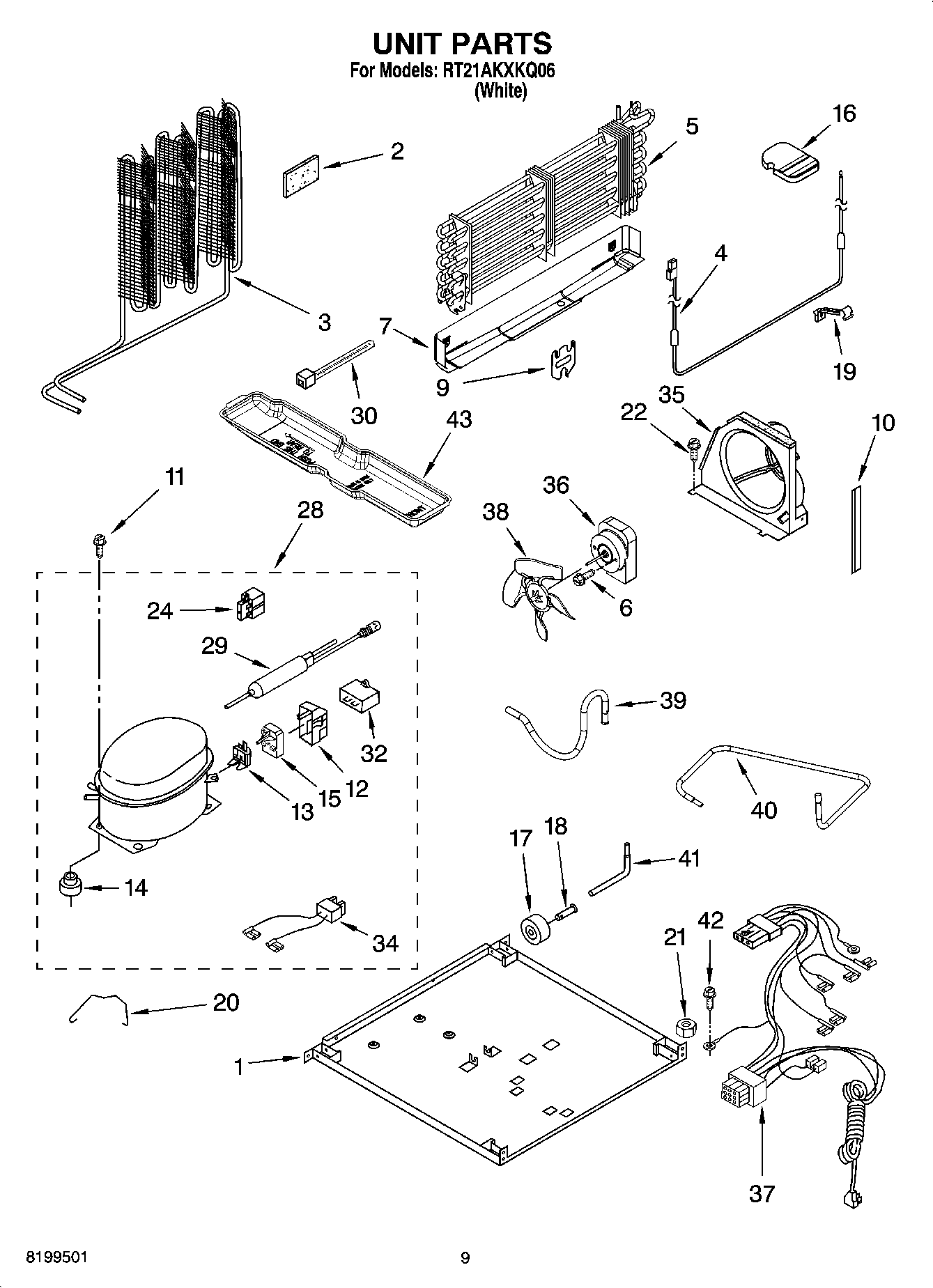

RT21AKXKQ06 06 – UNIT PARTS, OPTIONAL PARTSadmin2025-04-26T08:53:01+00:00RT21AKXKQ06 06 – UNIT PARTS, OPTIONAL PARTS
Products
| Position | Product |
|---|
| 72032 Whirlpool Touch Up Paint Black |
| CEMENT, ALUMILASTIC (1 1/4 OZ.) |
| WP505587 Whirlpool Refrigerator Sealer |
| WPL ARI127900A |
| WP542638 Whirlpool Refrigerator Grease |
| Torx Key |
| PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) |
| TAPE, VINYL (3/4 X 108``) |
| Enamel, Black (1 Qt. Uncut) |
| WPL 799832 |
| WPL 799833 |
| WPL 876029 |
| W11729596 Whirlpool Ice Maker Field Install Kit |
| 285006 Whirlpool Spray |
| WPL ARI127896A |
| WP503695 Whirlpool Refrigerator Sealer |
| WPL ARI127897A |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 799344 Whirlpool Refrigerator Paint |
| WPL ARI127899A |
| 350930 Whirlpool White Spray Paint |
| WPL ARI127898A |
| 212643 Whirlpool Refrigerator Permagum Sealer |
| 350942 Whirlpool Spray Paint |
| 4392899 Whirlpool Biscuit Touch-Up Paint |
| 606755 Whirlpool Refrigerator Bag |
| 876370 Whirlpool Refrigerator Insulation |
| 833938 Whirlpool Refrigerator Terminal |
| 4392901 Whirlpool Biscuit Spray Paint |
| 511873 Whirlpool Refrigerator Paint |
| 1 | Plate, Unit Mounting |
| 2 | W11553819 Whirlpool Refrigerator Insulation |
| 3 | WP2214960 Whirlpool Refrigerator Condenser |
| 4 | WPW10140847 Whirlpool Refrigerator Heater |
| 5 | EVAPORATOR ASSY. |
| 6 | WPW10171469 Whirlpool Refrigerator Screw |
| 7 | Drain Pan |
| 9 | Bracket, Heater |
| 10 | Extension, Air Baffle |
| 12 | WP2162358 Whirlpool Refrigerator Terminal Cover |
| 13 | WP2214067 Whirlpool Refrigerator Overload Relay |
| 14 | WP4387558 Whirlpool Refrigerator Compressor Grommet |
| 14 | 876811 Whirlpool Grommet |
| 15 | WP2225785 Whirlpool Refrigerator Start Device |
| 16 | Support Block |
| 17 | WPW10475495 Whirlpool Roller Assembly |
| 18 | W11594405 Whirlpool Axle |
| 19 | Clip, Heater |
| 20 | 2212996 Whirlpool Refrigerator Retainer |
| 21 | Nut (Not Serviced) |
| 22 | 3400518 Whirlpool Oven Foot Mount Screw |
| 24 | W10920279 Whirlpool Refrigerator Start Relay |
| 28 | W10309988 Whirlpool Refrigerator Compressor |
| 29 | W10843121 Whirlpool Refrigerator Tube |
| 30 | WPW10339879 Whirlpool Wire Tie |
| 32 | WPW10662129 Whirlpool Refrigerator Run Capacitor |
| 34 | WP2172890 Whirlpool Refrigerator Wire |
| 35 | Air Baffle |
| 36 | WP2188874 Whirlpool Refrigerator Condenser Motor |
| 37 | 2187382 Whirlpool Refrigerator Wire Harness |
| 38 | W11458267 Whirlpool Refrigerator Fan Blade |
| 39 | Tube, Discharge |
| 40 | Tube, Suction |
| 41 | 2154109 Whirlpool Refrigerator Tube |
| 42 | WP489128 Whirlpool Refrigerator Screw |
| 43 | 8201826 Whirlpool Refrigerator Evaporator Tray |
| 43 | VALVE, ACCESS (5/8``) |
| 43 | VALVE, ACCESS (1/2``) |
| 43 | 876764 Whirlpool Refrigerator Primary Valve |
| 43 | WP978025 Whirlpool Refrigerator Valve |
| 43 | 978030 Whirlpool Refrigerator Valve |
| 43 | REFRIGERANT CHARGE 4.0 Ozs. (R134A) |
| 43 | 978026 Whirlpool Refrigerator Primary Valve |
| 43 | 978027 Whirlpool Refrigerator Primary Valve |
| 43 | Following Parts Not Illustrated and Optional Parts Not Included |
