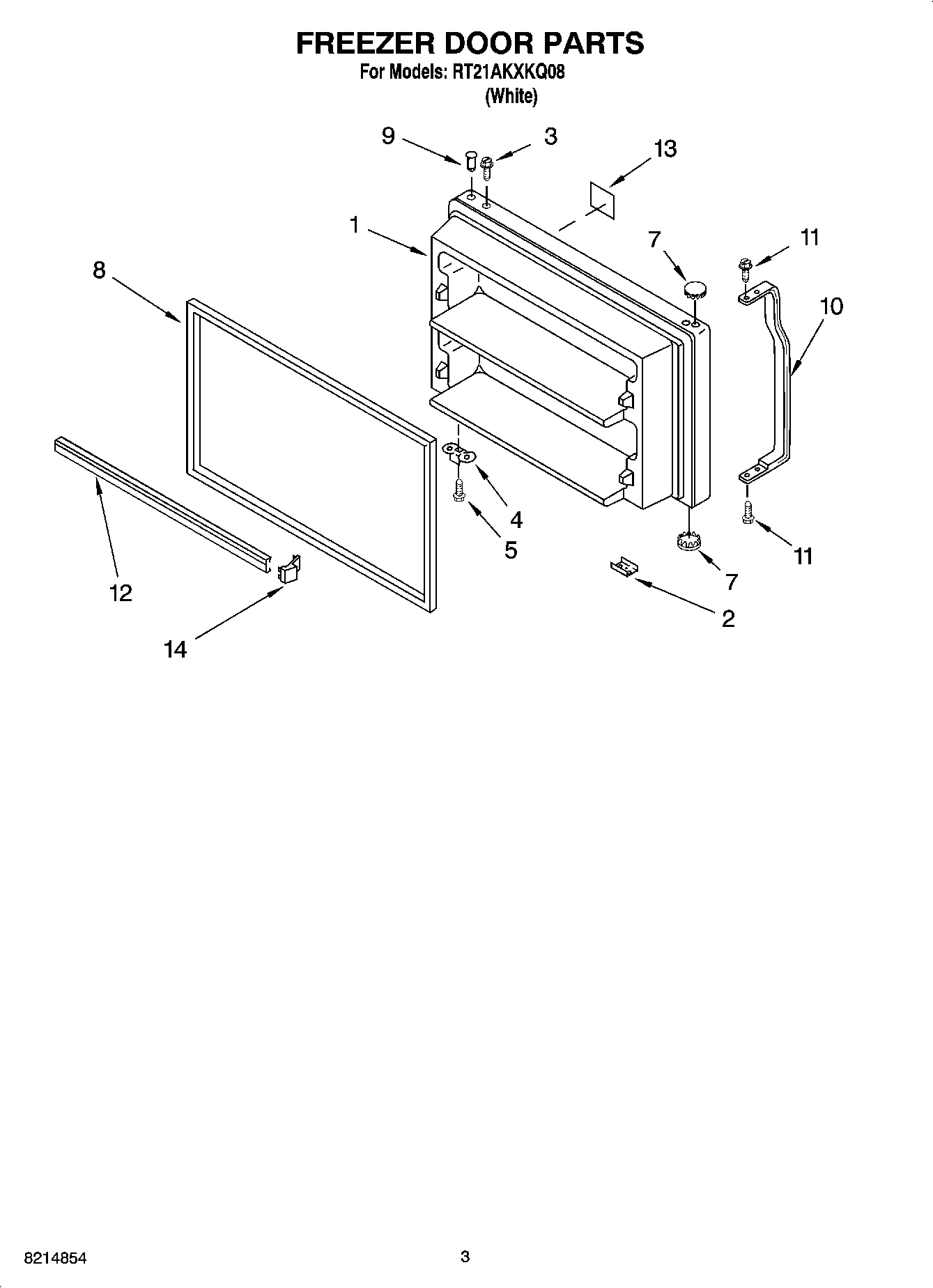

RT21AKXKQ08 02 – FREEZER DOOR PARTS

RT21AKXKQ08 02 – FREEZER DOOR PARTS

Written by

in

RT21AKXKQ08 02 – FREEZER DOOR PARTS

Products

PositionProduct
1W11023679 Whirlpool Refrigerator Door Assembly
2W10833053 Whirlpool Refrigerator Plate
3WP8281206 Whirlpool Refrigerator Screw
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8WHITE DOOR GASKET-FIP
9WP2183003 Whirlpool Thimble
10WP2202806W Whirlpool Refrigerator Handle
11WP489357 Whirlpool Recessed Screw
12WP2201060 Whirlpool Refrigerator Door Trim
13Nameplate (White)
14WP2156003 Whirlpool Refrigerator Door Shelf End Cap
