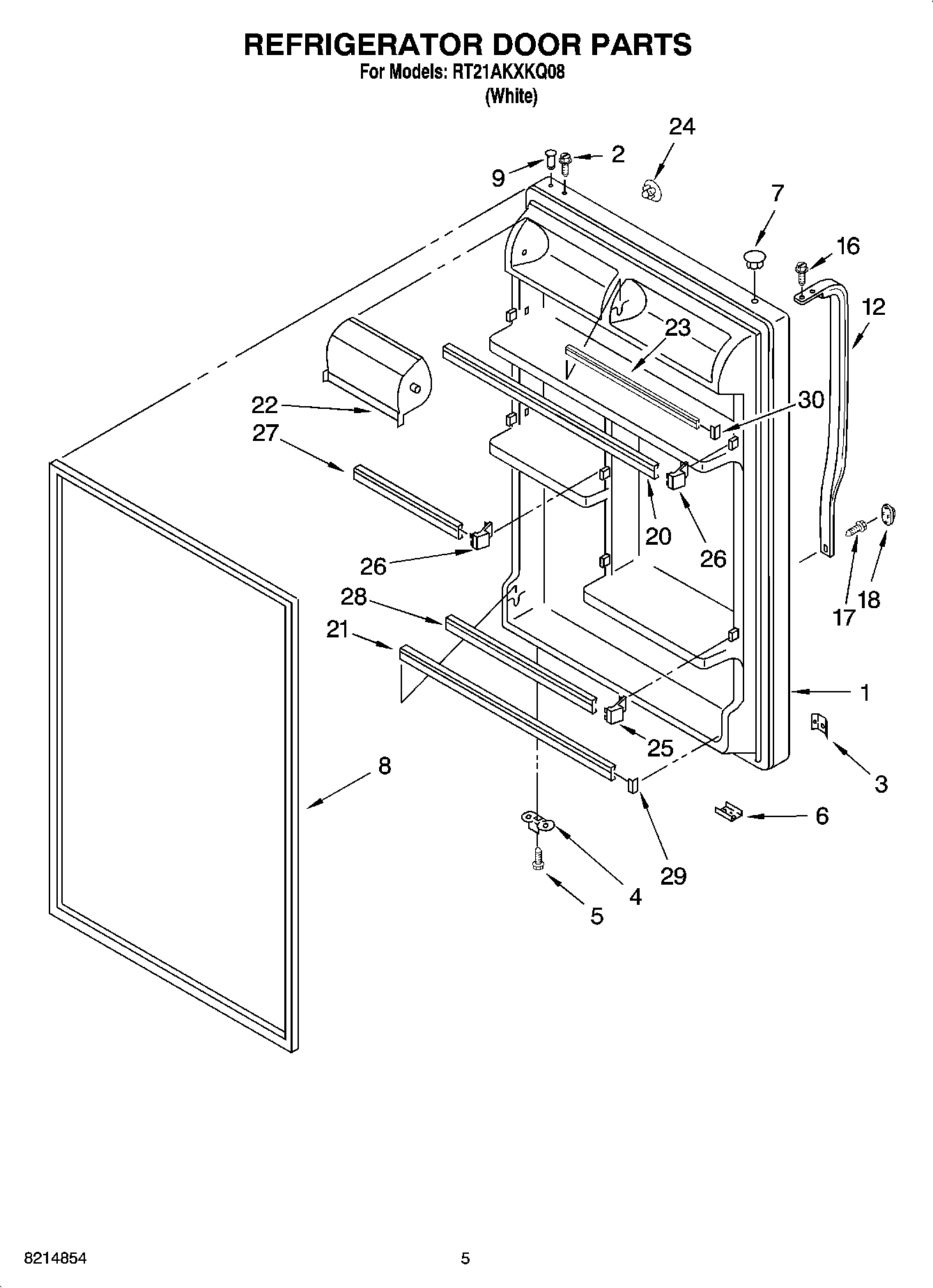

RT21AKXKQ08 04 – REFRIGERATOR DOOR PARTS

RT21AKXKQ08 04 – REFRIGERATOR DOOR PARTS

Written by

in

RT21AKXKQ08 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes 8 & 9) (White)
2WP8281206 Whirlpool Refrigerator Screw
3WP939101 Whirlpool Refrigerator Plate
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6W10833053 Whirlpool Refrigerator Plate
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159061 Whirlpool Refrigerator Door Gasket
9WP2183003 Whirlpool Thimble
12WP2202807W Whirlpool Handle Door
16WP489357 Whirlpool Recessed Screw
17WP8281146 Whirlpool Screw
18WP2202819W Whirlpool Refrigerator Cover
21WPW10421486 Whirlpool Refrigerator Door Trim
22WP2218118 Whirlpool Refrigerator Door Compressor
23TRIM-DOOR
24WP2189000 Whirlpool Refrigerator Handle Plug
25WP2195915 Whirlpool Door Shelf Support
26WP2156003 Whirlpool Refrigerator Door Shelf End Cap
27WP2201062 Whirlpool Refrigerator Door Trim
28WP2195943 Whirlpool Shelf Retainer Bar
29WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
30ENDCAP-TRM
