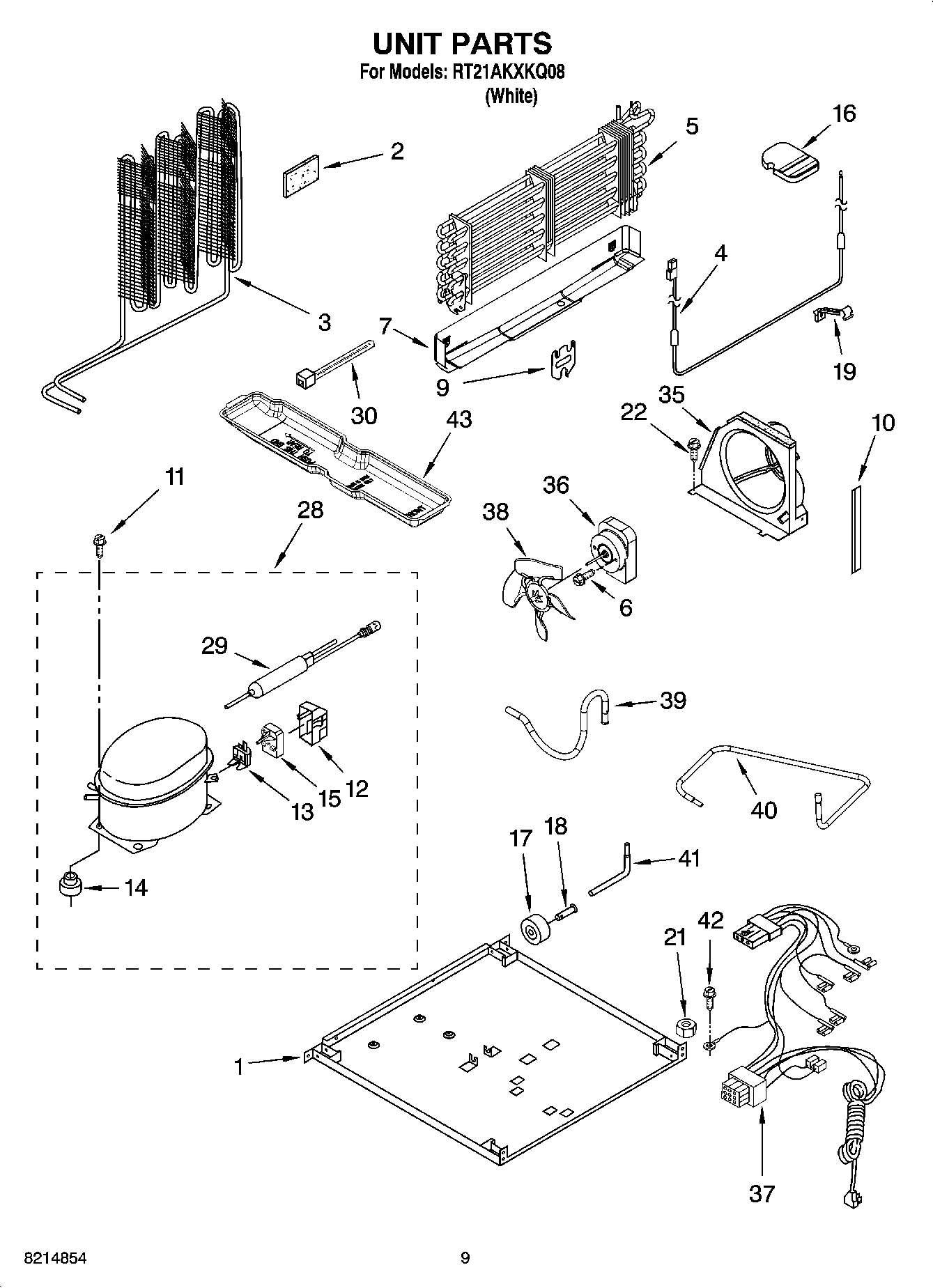

RT21AKXKQ08 06 – UNIT PARTS, OPTIONAL PARTS

RT21AKXKQ08 06 – UNIT PARTS, OPTIONAL PARTS

Written by

in

RT21AKXKQ08 06 – UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL ARI127917A
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
72032 Whirlpool Touch Up Paint Black
Torx Key
285006 Whirlpool Spray
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
W11729596 Whirlpool Ice Maker Field Install Kit
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WP503695 Whirlpool Refrigerator Sealer
WPL ARI127918A
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI127921A
WPL ARI127920A
WPL ARI127919A
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
WPL 876029
1Plate, Unit Mounting
2W11553819 Whirlpool Refrigerator Insulation
3WP2214960 Whirlpool Refrigerator Condenser
4WPW10140847 Whirlpool Refrigerator Heater
5EVAPORATOR ASSY.
6WPW10171469 Whirlpool Refrigerator Screw
7Drain Pan
9Bracket, Heater
10Extension, Air Baffle
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2302290 Whirlpool Refrigerator Overload
13WP4387938 Whirlpool Refrigerator Overload
14876811 Whirlpool Grommet
14WP4387558 Whirlpool Refrigerator Compressor Grommet
15WP2258450 Whirlpool Refrigerator Start Device
16Support Block
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
21Nut (Not Serviced)
223400518 Whirlpool Oven Foot Mount Screw
28W10823815 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
35Air Baffle
36WP2188874 Whirlpool Refrigerator Condenser Motor
37Wire Assy. Unit
38W11458267 Whirlpool Refrigerator Fan Blade
39Tube, Discharge
402205293 Whirlpool Refrigerator Tube
41W11676464 Whirlpool Tube
42WP489128 Whirlpool Refrigerator Screw
43WP978025 Whirlpool Refrigerator Valve
43VALVE, ACCESS (5/8“)
43VALVE, ACCESS (1/2“)
43978027 Whirlpool Refrigerator Primary Valve
43876764 Whirlpool Refrigerator Primary Valve
43REFRIGERANT CHARGE 4.0 Ozs. (R134A)
43Following Parts Not Illustrated and Optional Parts Not Included
438201826 Whirlpool Refrigerator Evaporator Tray
43978030 Whirlpool Refrigerator Valve
43978026 Whirlpool Refrigerator Primary Valve
