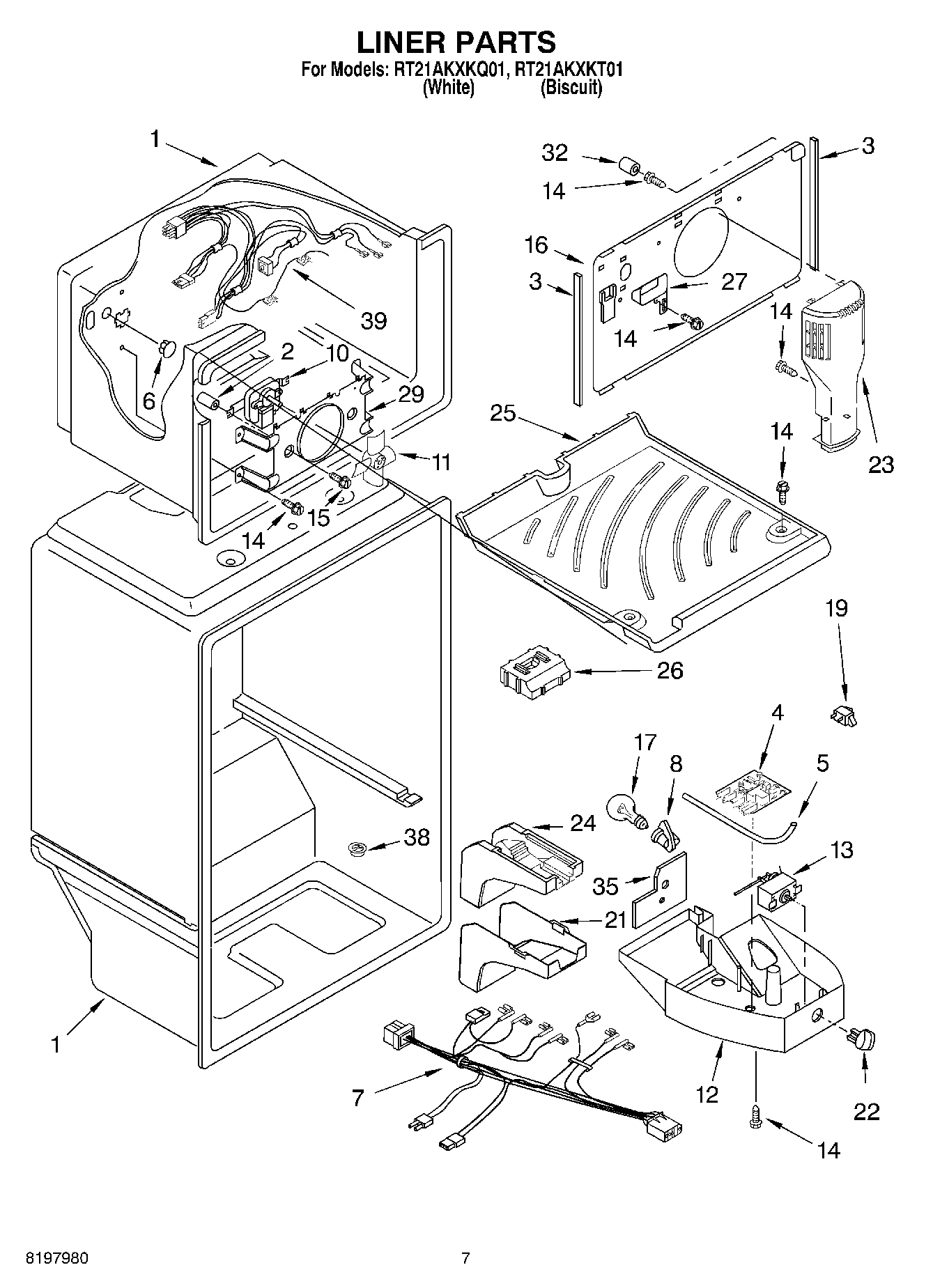

RT21AKXKT01 05 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5WP2196003 Whirlpool Refrigerator Bar Riser
6WP941839 Whirlpool Refrigerator Button Plug
7Defrost Bi-metal
84387478 Whirlpool Refrigerator Light Socket
10Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13WP2204605 Whirlpool Refrigerator Thermostat
14WP98129 Whirlpool Screw
15Screw
16Cover, Evaporator
17W10887190 Whirlpool Refrigerator Light Bulb
19W11384469 Whirlpool Door Switch
21Cover, Air Diffuser
22WP2202885 Whirlpool Refrigerator Thermal Knob
23Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
25Floor, Freezer
26AIR SEPARATOR ASSEMBLY
27Cover, Hole
29Bracket, Fan Motor
32WP487996 Whirlpool Refrigerator Cap Tube
35Shield, heat
38WP2210509 Whirlpool Refrigerator Tub Valve
39Wire Assembly
