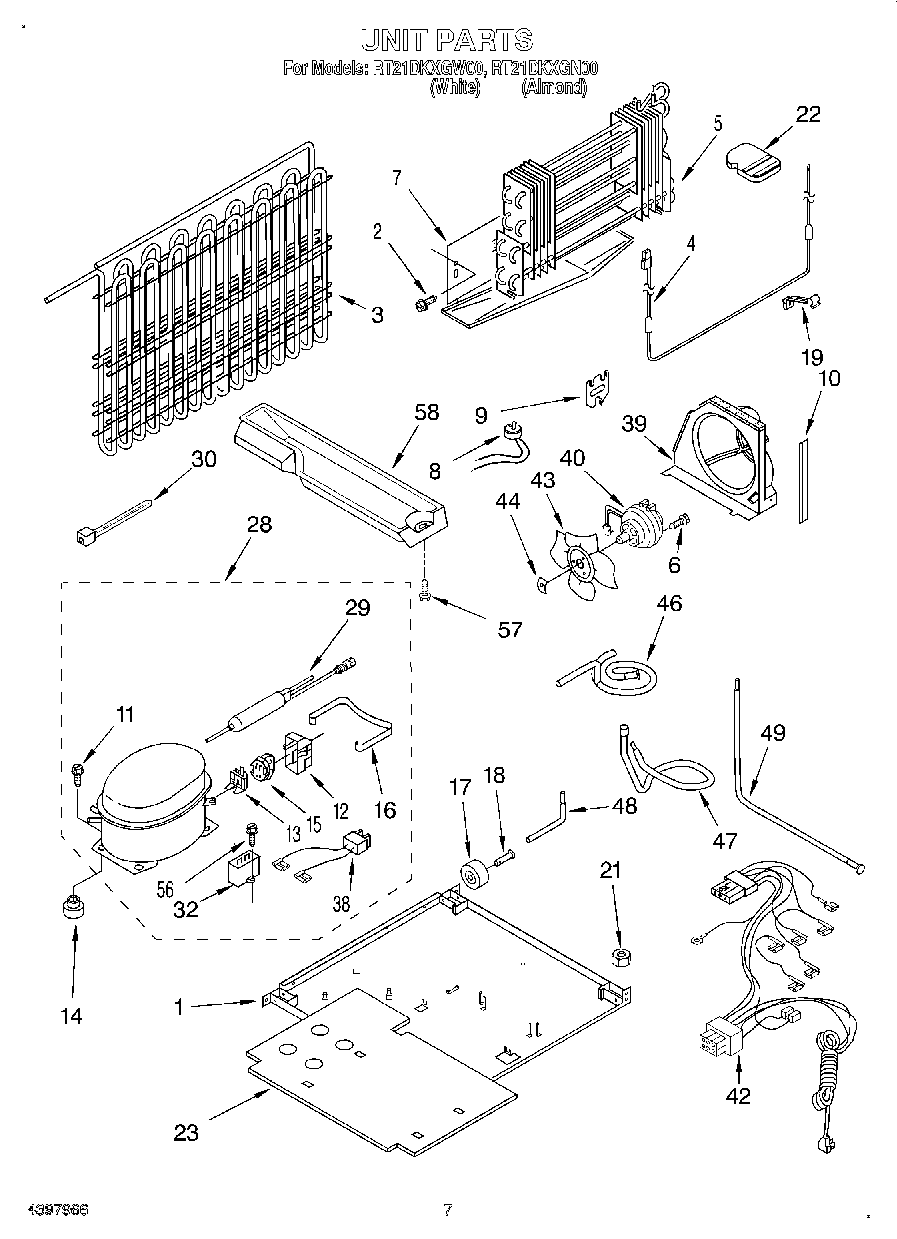

RT21DKXGW00 04 – UNIT

Products

Position	Product
1	Plate, Unit Mounting
2	WP489478 Whirlpool Refrigerator Screw
3	Condenser
4	WP2315530 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	WP8281196 Whirlpool Screw
7	Drain Pan
8	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
9	Bracket, Heater
10	Extension, Air Baffle
11	SCREW
12	Case, Relay
13	2183409 Whirlpool Refrigerator Overload
13	4387913 Whirlpool Refrigerator Primary Overload Relay
14	876811 Whirlpool Grommet
14	W11661108 Whirlpool Grommet
15	Relay (See Overload)
16	case spring
17	4388239 Whirlpool Refrigerator Primary Cabinet Roller
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	Nut (Not Serviced)
22	Support Block
23	Cover, Unit
28	W10309988 Whirlpool Refrigerator Compressor
28	Installation Kit
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	Capacitor
38	WP2172890 Whirlpool Refrigerator Wire
39	Air Baffle
40	W10822259 Whirlpool Refrigerator Condenser Fan Motor
42	Wire Assy. Unit
43	Blade, Fan
44	WP486692 Whirlpool Refrigerator Nut
46	Tube, Discharge
47	Tube, Suction
48	2154109 Whirlpool Refrigerator Tube
49	Tube, Condenser To Heat Loop
57	Screw
58	WP978025 Whirlpool Refrigerator Valve
58	978026 Whirlpool Refrigerator Primary Valve
58	978027 Whirlpool Refrigerator Primary Valve
58	876764 Whirlpool Refrigerator Primary Valve
58	VALVE, ACCESS (5/8“)
58	978030 Whirlpool Refrigerator Valve
58	Tray, Evaporator
58	VALVE, ACCESS (1/2“)
58	Start Kit
