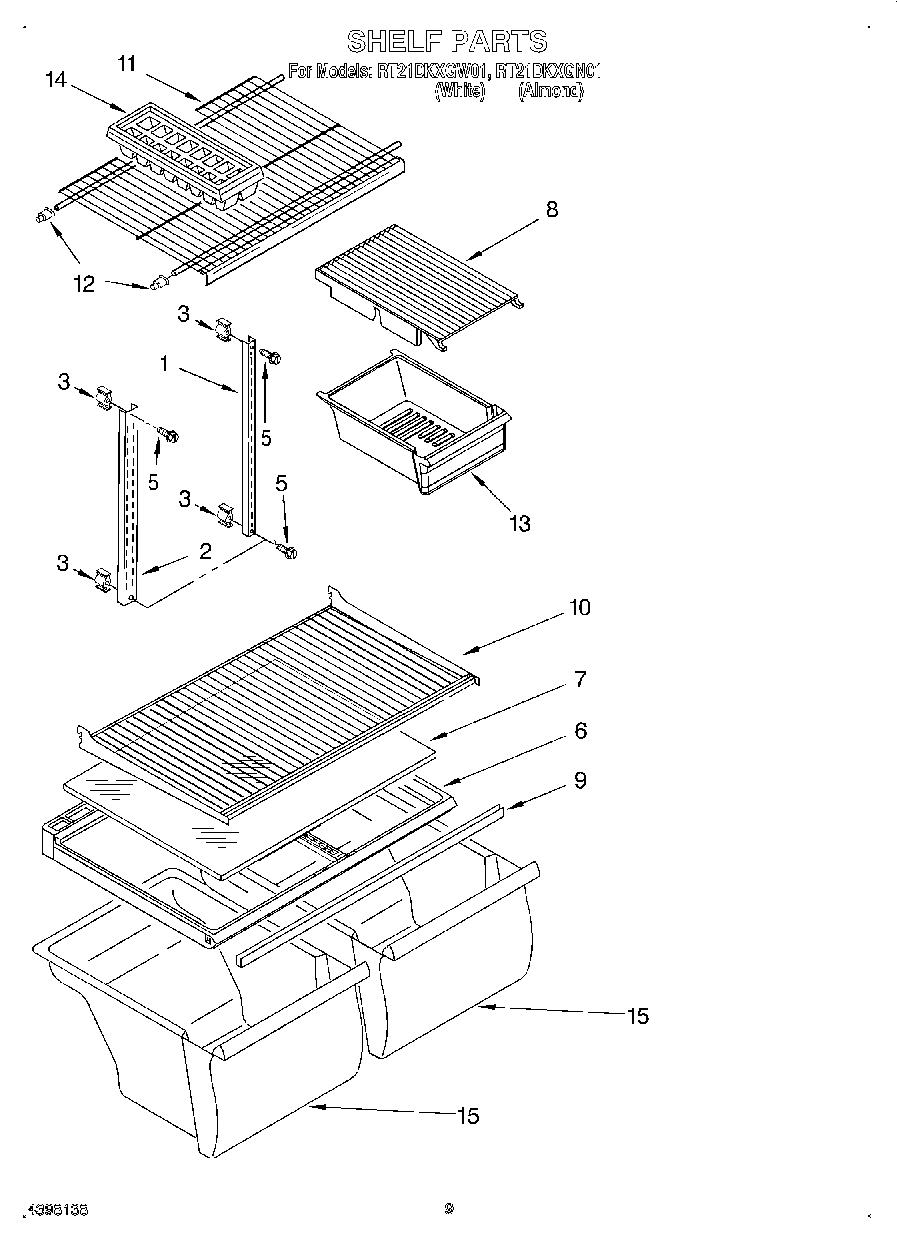

RT21DKXGW01 05 – SHELF, LIT/OPTIONALadmin2025-04-26T12:52:37+00:00RT21DKXGW01 05 – SHELF, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Torx Key |
| WPL LIT2195481 |
| WPL LIT2199064 |
| WPL LIT2195381 |
| 1 | Shelf, Ladder (2) |
| 2 | Shelf, Ladder Center |
| 3 | Support, Screw |
| 5 | W11544659 Whirlpool Refrigerator Screw |
| 6 | WP2314549 Whirlpool Refrigerator Cover |
| 7 | WP2176225 Whirlpool Glass Shelf |
| 8 | Cover, Meat Pan |
| 9 | WP2172748 Whirlpool Drawer Support |
| 10 | Shelf, Full Cantilever |
| 11 | Shelf, Freezer |
| 12 | 2163762 Whirlpool Refrigerator Cup Assembly |
| 13 | Pan, Meat |
| 14 | WP841180A Whirlpool Microwave Glass Turntable Tray |
| 15 | W10854037 Whirlpool Refrigerator Crisper Pan |
| 100 | Door Reversal Instructions |
| 100 | 285006 Whirlpool Spray |
| 100 | 72032 Whirlpool Touch Up Paint Black |
| 100 | FeaturePak (Includes 8,13) Also See Door Pg. |
| 100 | Almond (Uncut) |
| 100 | WPL 876029 |
| 100 | 350956 Whirlpool Spray Assembly |
| 100 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 100 | 799344 Whirlpool Refrigerator Paint |
| 100 | WP72107 Whirlpool Touchup |
| 100 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 100 | 350942 Whirlpool Spray Paint |
| 100 | 511873 Whirlpool Refrigerator Paint |
| 100 | 606755 Whirlpool Refrigerator Bag |
| 100 | 833938 Whirlpool Refrigerator Terminal |
| 100 | 876370 Whirlpool Refrigerator Insulation |
| 100 | WP503695 Whirlpool Refrigerator Sealer |
| 100 | WP505587 Whirlpool Refrigerator Sealer |
| 100 | WP542638 Whirlpool Refrigerator Grease |
| 100 | TAPE, VINYL (3/4 X 108``) |
| 100 | CEMENT, ALUMILASTIC (1 1/4 OZ.) |
| 100 | WPL 799832 |
| 100 | WPL 799833 |
| 100 | 350930 Whirlpool White Spray Paint |
