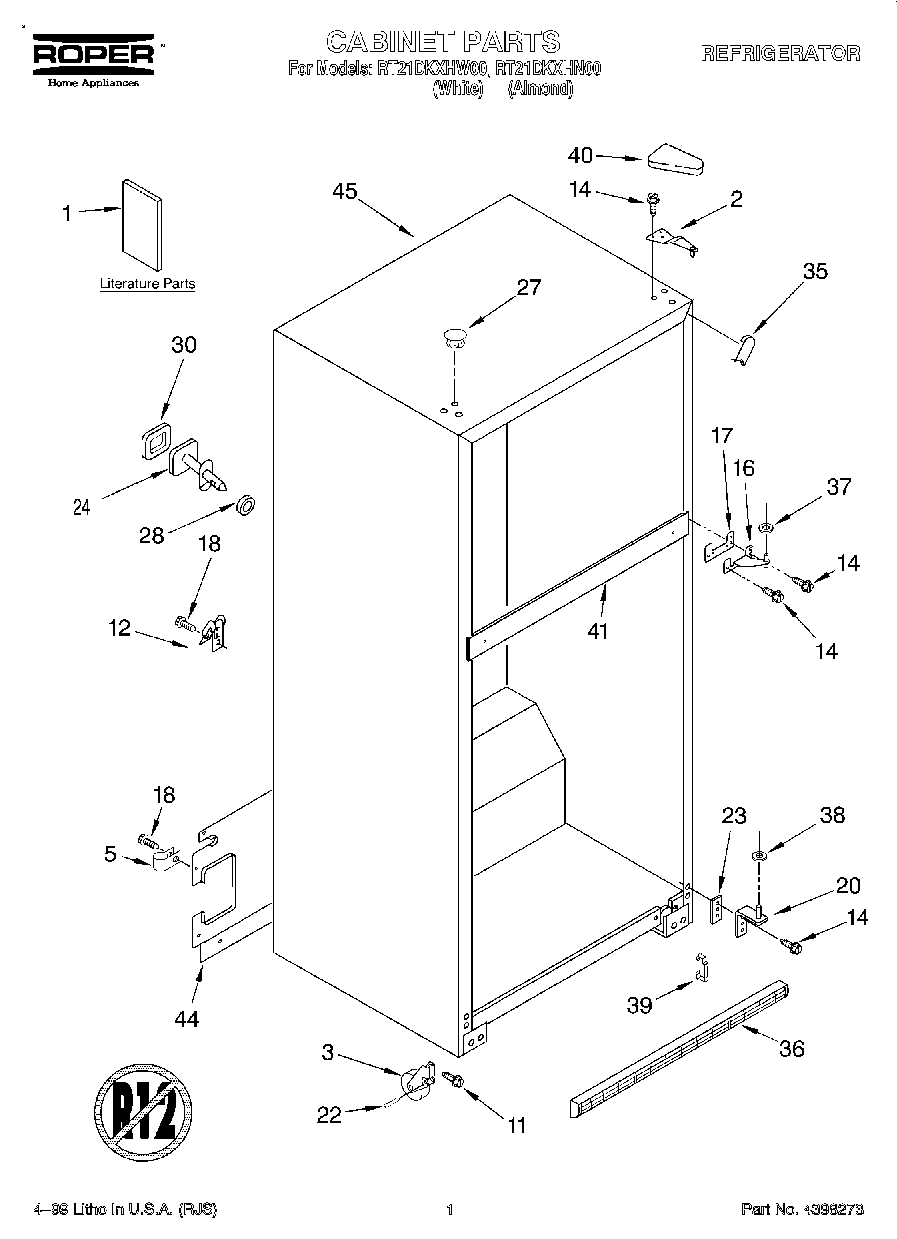

RT21DKXHW00 01 – CABINET, LITERATURE

Products

PositionProduct
1WPL LIT2195481
1WPL LIT2199011
1Energy Label
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
5WP488366 Whirlpool Refrigerator Clamp
11Screw
12549193 Whirlpool Refrigerator Power Clamp
14WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
22W11594405 Whirlpool Axle
23Shim, Bottom Hinge
24Fitting, Water Tube (Not Serviced)
27Hole Plug (6) (Almond)
27WP2151652 Whirlpool Refrigerator Button Plug
28Seal, Front (Not Serviced)
30Seal, Rear (Not Serviced)
35WPW10283959 Whirlpool Refrigerator Filler
35Corner Filler (2) (Almond)
36Grille (White)
36Grille (Almond)
37WP489467 Whirlpool Hinge Shim
38WP487576 Whirlpool Washer
39CLIP, GRILLE
40WP2213360 Whirlpool Refrigerator Cover
40Cover, Hinge (Almond)
41Rail Center (Not Serviced)
44Cover, Unit
