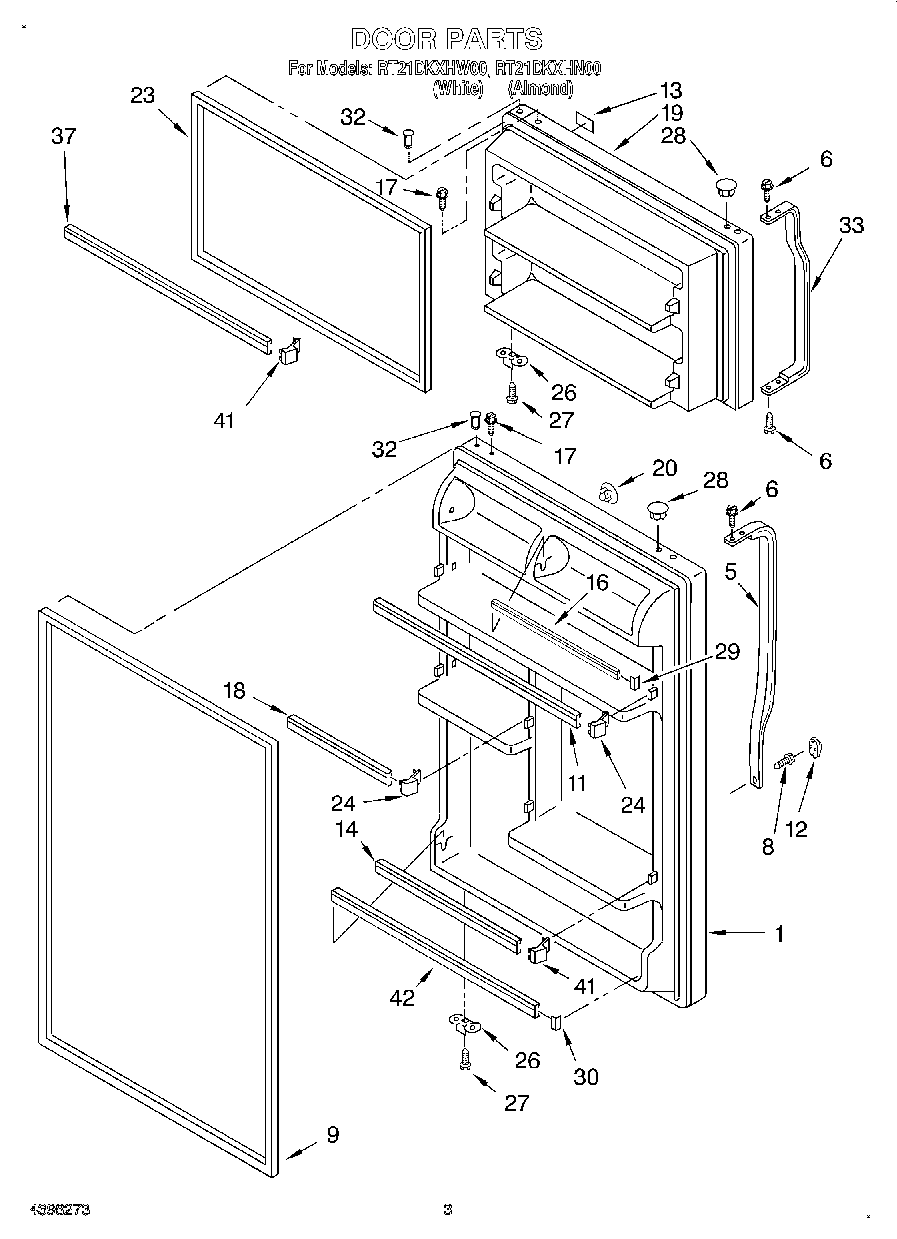

RT21DKXHW00 02 – DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.9 & No.32) (White)
1Refrigerator Door (Includes No.9 & No.32) (Almond)
5WP2202807W Whirlpool Handle Door
5Handle Center (Almond)
6WP489357 Whirlpool Recessed Screw
8WP488729 Whirlpool Refrigerator Door Screw
92159061 Whirlpool Refrigerator Door Gasket
12Cover, Screw (Almond)
12WP2202819W Whirlpool Refrigerator Cover
13Nameplate (White)
13Nameplate (Almond)
14WP2195943 Whirlpool Shelf Retainer Bar
16TRIM-DOOR
17WP8281206 Whirlpool Refrigerator Screw
18WP2201062 Whirlpool Refrigerator Door Trim
19W11023679 Whirlpool Refrigerator Door Assembly
19Freezer Door (Includes No.23 & No.32) (Almond)
20Hole Plug (Almond)
20WP2189000 Whirlpool Refrigerator Handle Plug
23WHITE DOOR GASKET-FIP
24WP2195915 Whirlpool Door Shelf Support
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28Hole Plug (Almond)
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
32WP2183003 Whirlpool Thimble
33WP2202806W Whirlpool Refrigerator Handle
33Handle, F.C. (Almond)
37WP2201060 Whirlpool Refrigerator Door Trim
41WP2156003 Whirlpool Refrigerator Door Shelf End Cap
42WPW10421486 Whirlpool Refrigerator Door Trim
100FeaturePak (Includes 11, 14, 16, 18, 29, 30, 37, 41, 42) Also See Shelf Parts Page.
