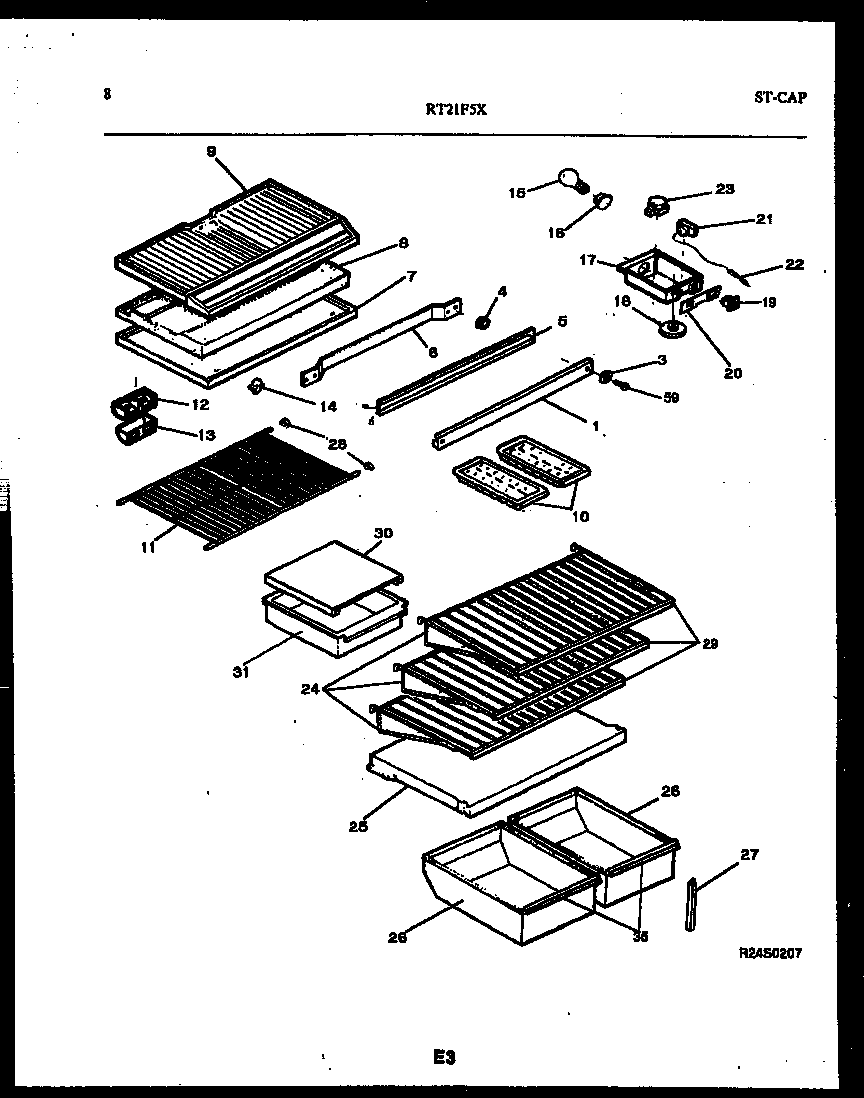

RT21F5DX3A 05 – SHELVES AND SUPPORTS

RT21F5DX3A 05 – SHELVES AND SUPPORTS

Written by

in

RT21F5DX3A 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7WCI 5303001380
7WCI 3019038
8WCI 5303019039
8HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
93205266 Frigidaire Refrigerator Edge Protector
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 3916129
12EXTENSION, AIR DEFLECTOR, WITH INSULATION
12DEFLECTRO, AIR, W/SEAL
125303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17WCI 5303272507
175304455650 Frigidaire Refrigerator Screw
18WCI 5303209251
19WCI 5303272508
21WCI 5303001260
21WCI 5303018894
22WCI 3018891
235304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF-CANTILEVER, REFR
24CLIP-CANTILEVER SHLF
25COVER-CRISPER PAN
26WCI 5303275274
26WCI 5303274981
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29TRIM-FULL SHELF, SNAP-ON, FRONT
30WCI 5303206773
31WCI 5303275012
35WCI 5303274986
35WCI 5303274987
59WCI 5308012258
