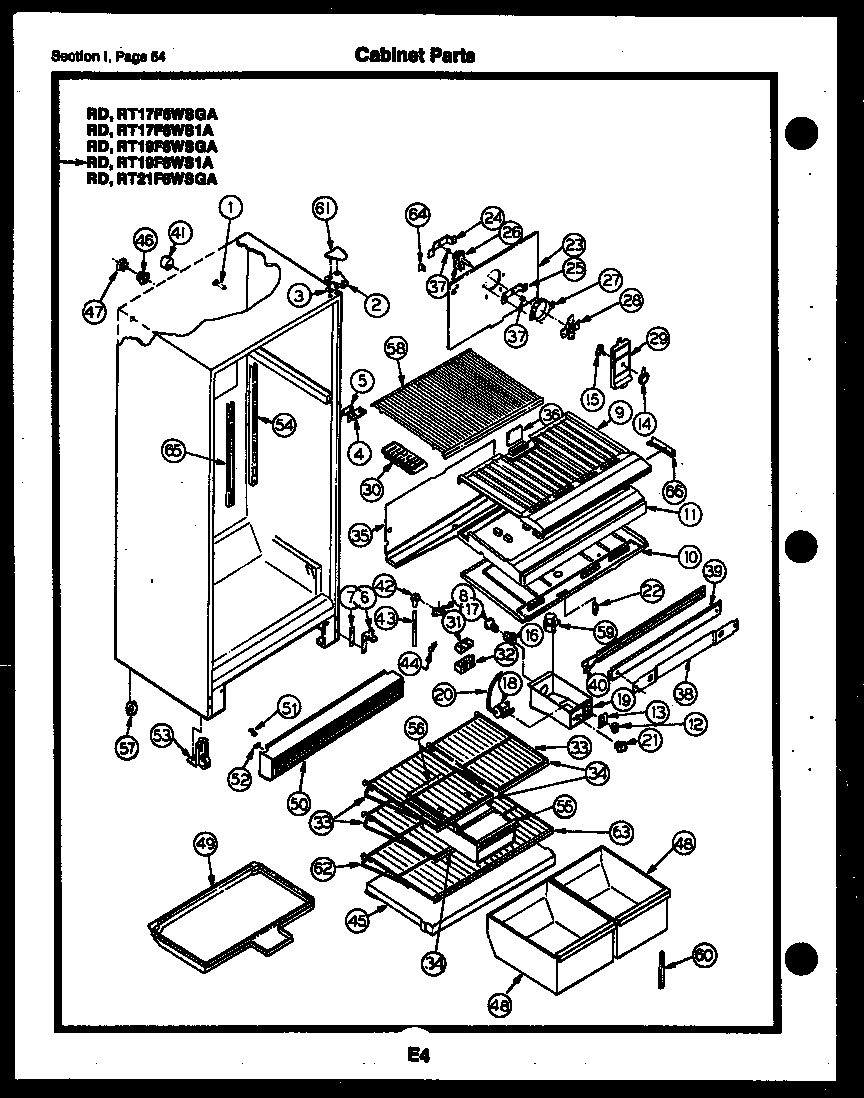

RT21F6WSGA 27 – CABINET PARTS

Products

Position	Product
1	WCI G163669
2	WCI G174747–01
2	WASHER, NYLON
2	BRACKET, TOP HINGE
2	241710601 Frigidaire Refrigerator Screw
3	WCI G183861
4	WCI G162384
4	WCI G142220
4	SCREW, BRACKET MOUNTING (4)
5	SHIM, HINGE
6	WASHER, NYLON
6	NUT, SPEED (2)
6	WCI G141673
6	WCI G103903
6	BRACKET-LOWER HINGE
6	SCREW – 1/4 X 1 (2)
6	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
6	WCI G142361
6	TAPPING PLATE (2)
7	SHIM, HINGE
8	SPOUT DRAIN TUBE
8	PIN PUSH SPOUT (2)
9	WCI G174744
10	SCREW (5)
10	WCI G174757
11	WCI G174758
12	WCI G178402-05
13	LABEL – CONTROL BOX
14	WCI G162747-06
15	DAMPER FAN COVER
16	SOCKET LIGHT
17	316538904 Frigidaire Oven Lamp Light
18	COLD CONTROL
18	WCI G107080
19	WCI G174765-03
19	5304455650 Frigidaire Refrigerator Screw
20	TUBE
21	KNOB-TEMP CONTROL
22	5309918806 Frigidaire Refrigerator Light Switch Door
23	WCI G162050-02
24	BRACKET, REAR MOTOR MOUNTING
25	BRACKET, FRONT MOTOR MOUNTING
26	5300158289 Frigidaire Evaporator Fan Motor
27	NUT, ORIFICE (2)
27	RING, FAN ORIFICE
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	LABEL – UPPER
29	LABEL – LOWER
29	WCI G162512-08
30	215667501 Frigidaire Refrigerator Ice Tray Primary
31	WCI G162178
32	DEFLECTOR AIR
33	WCI G162129-10
34	CLIP – TRIM (12)
34	WCI G141727-43
35	WCI G170071
36	PAD, FOAM (2)
37	G187559 Frigidaire Refrigerator Bushing
38	STRAP, MULLION MOUNTING
39	WCI G162051
40	WCI G177254
41	TUBE, INSULATION (2)
42	ELBOW, DRAIN
43	WCI G155529-01
44	5308000039 Frigidaire Refrigerator Screw
44	240396801 Frigidaire Refrigerator Tube Clamp
45	WCI G180108-02
45	WCI G161901-02
46	WCI G174733
47	WCI G174734
48	WCI G179706-32
48	WCI G179706-33
49	PAN, DEFROST
50	WCI G161904-01
51	WCI G162994
52	PLUG – LOWER GRILLE
53	ROLLER ASSEMBLY – FRONT (2)
53	BOLT, HOUSING TO FRONT RAIL (2)
54	5304455852 Frigidaire Refrigerator Screw
54	CHANNEL, SHELF (2)
55	MEAT PAN
56	WCI G177106-01
57	ROLLER (2)
57	WCI G162809
57	NUT, DAMPER MOUNTING
58	SUPPORT, SHELF (8)
58	SCREW – SUPPORT TO LINER (8)
58	WCI G163002-06
59	215846604 Frigidaire Refrigerator Defrost Timer
59	5304455649 Frigidaire Refrigerator Screw
60	WCI G166310-01
61	COVER HINGE, WHITE
62	WCI G162129-11
63	TRIM – SHELF – FR.
64	5304455651 Frigidaire Refrigerator Screw
64	WCI G164571
65	CHANNEL, CENTER SHELF, MOUNTING
65	WCI G163989
22265	BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES
22268	BUTTON-DECORATIVE
22270	BUTTON, PLUG, WATER INLET
22271	BUTTON, PLUG, ICE MAKER HARNESS
22274	WCI G184337
22281	WCI G176588
22283	BUTTON, PLUG, LINER (2)
22284	WCI G175254
22287	WCI G183100-40
