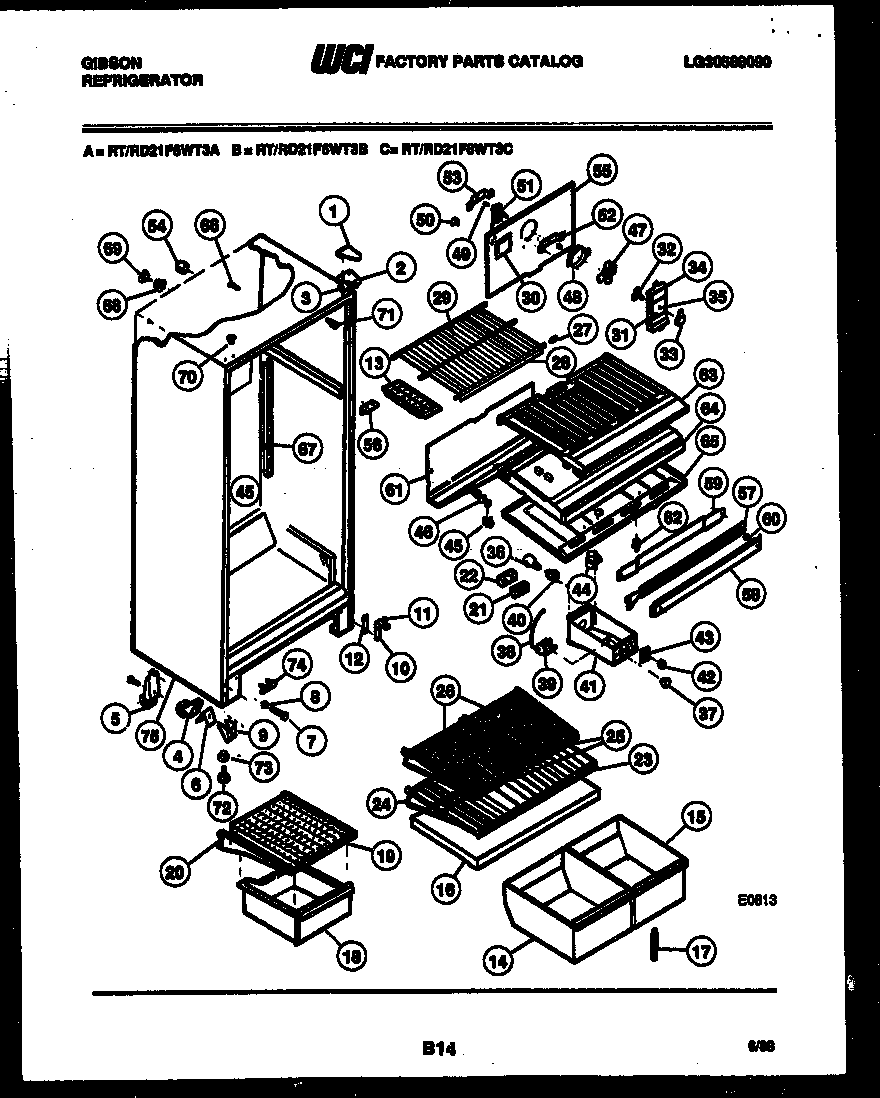

RT21F6WT3B 03 – CABINET PARTS

Products

Position	Product
1	COVER HINGE, WHITE
1	COVER, TOP HINGE, AVOCADO
1	COVER, TOP HINGE, ALMOND
1	COVER HINGE, WHEAT
1	COVER HINGE, COFFEE
2	BRACKET, TOP HINGE
3	WCI G183861
3	WCI G103903
3	241710601 Frigidaire Refrigerator Screw
4	ROLLER FRONT, ADJUSTABLE (2)
5	BOLT ROLLER (2)
5	ROLLER, REAR (2)
5	5304455651 Frigidaire Refrigerator Screw
6	SPRING-ROLLER (2)
7	BOLT-ROLLER (2)
8	WASHER
9	SUPPORT, ROLLER (2)
10	BRACKET, HINGE, LOWER
11	5303001321 Frigidaire Refrigerator Lower Hinge Pin
12	SHIM, HINGE
13	215667501 Frigidaire Refrigerator Ice Tray Primary
14	PAN-CRISPER-LS
15	PAN-CRISPER-RS
16	WCI G490064-08
16	GASKET, COVER
17	SUPPORT, CRISPER COVER
18	WCI G187181-01
19	WCI G187195-01
20	WCI G115932
20	WCI G187213-03
20	RAIL-STRAIGHT (NON-ILLUSTRATED)
21	WCI G162178
22	DEFLECTOR AIR
23	TRIM
24	WCI G177390-18
25	TRIM (2)
26	WCI G177390-17
27	WCI G166495-01
28	TRIM-SHELF
29	SHELF-FREEZER
30	PLUG, DECORATIVE
31	WCI G162512-08
32	NUT, DAMPER MOUNTING
32	DAMPER FAN COVER
33	KNOB
34	LABEL – UPPER
35	LABEL – LOWER
36	316538904 Frigidaire Oven Lamp Light
37	KNOB
38	TUBE
39	WCI G107080
39	CONTROL
40	SOCKET LIGHT
41	WCI G176722-03
42	WCI G178402-02
43	WCI G188379-02
44	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
44	5304455649 Frigidaire Refrigerator Screw
45	SPOUT DRAIN TUBE
45	PIN PUSH SPOUT (2)
46	RING, SEAL (NON-ILLUSTRATED)
46	TUBE, DRAIN
47	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
48	RING, FAN ORIFICE
49	G187559 Frigidaire Refrigerator Bushing
50	WCI G164571
51	5300158289 Frigidaire Evaporator Fan Motor
52	WCI G185302
53	WCI G185303
54	TUBE, INSULATION (2)
55	NUT, ORIFICE (2)
55	WCI G184609
56	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
56	BRACKET, HINGE CENTER
56	WASHER (2)
56	WCI G142220
56	SCREW, BRACKET MOUNTING (4)
57	WCI G177254
58	WCI G180373-08
58	WCI G180373-11
58	WCI G180373-10
58	WCI G180373-09
58	MULLION, WHITE
59	STRAP, MULLION MOUNTING
60	SPACER, MULLION (2)
61	WCI G177534
62	5309918806 Frigidaire Refrigerator Light Switch Door
63	WCI G184604
64	WCI G184683
65	TOP-REFRIGERATOR
65	SCREW (5)
66	WCI G163669
67	SPACER, FREEZER (2)
67	CHANNEL, SHELF (2)
67	5304455852 Frigidaire Refrigerator Screw
67	CHANNEL, CENTER SHELF, MOUNTING
67	SCREW (3) (NON-ILLUSTRATED)
68	WCI G174733
69	WCI G174734
70	WCI G174747-10
70	WCI G174747-08
70	WCI G174747-11
70	WCI G174747–01
70	WCI G174747-09
71	WCI G179684-10
71	WCI G179684-09
71	WCI G179684-01
71	TRIM-CORNER, ALMOND (4)
71	TRIM CORNER (4), AVOCADO
74	WCI G16691
