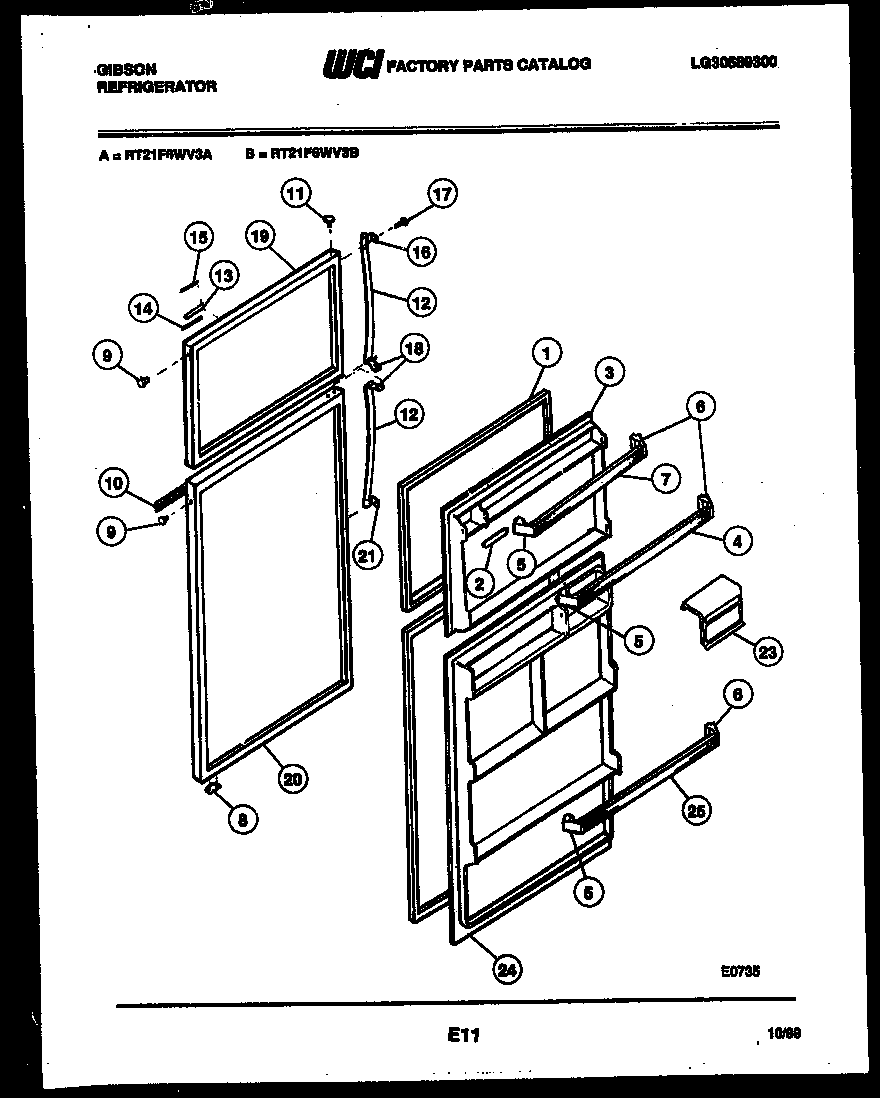

RT21F6WV3A 02 – DOOR PARTS

Products

Position	Product
*16001	WCI G89643
1	GASKET
2	DISPENSER-JUICE CAN
3	PANEL-INNER FRZR
5	SUPPORT, RACK, LH (PC) (2)
6	SUPPORT, RACK, RH, (PC) (2)
7	WCI G161019-66
8	STOP, DOOR. PC & FC (2)
9	WCI G162977-09
9	WCI G162977-10
9	240494001 Frigidaire Refrigerator Plug Button
9	WCI G162977-08
9	WCI G162977-11
10	TRIM-REFRIG DOOR
11	WCI G169332-01
11	WCI G169332-08
11	WCI G169332-11
11	WCI G169332-09
11	WCI G169332-10
12	WCI G170495-24
13	NAMEPLATE
13	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
14	LABEL, LOWER
15	LABEL, UPPER
16	WCI G179800
17	WCI G185566
18	WCI G187329-01
19	FREEZER DOOR-COFFEE
19	FREEZER DOOR-WHITE
19	FREEZER DOOR-AVOCADO
19	FREEZER DOOR-WHEAT
19	FREEZER DOOR-ALMOND
20	REFRIGERATOR DOOR-WHEAT
20	REFRIGERATOR DOOR-ALMOND
20	REFRIGERATOR DOOR-AVOCADO
20	REFRIGERATOR DOOR-WHITE
20	BEARING, HINGE (3)
20	REFRIGERATOR DOOR-COFFEE
21	WCI G179801
22	GASKET
23	DOOR, DAIRY (2)
24	WCI G187564-02
24	5304455651 Frigidaire Refrigerator Screw
25	WCI G161019-65
