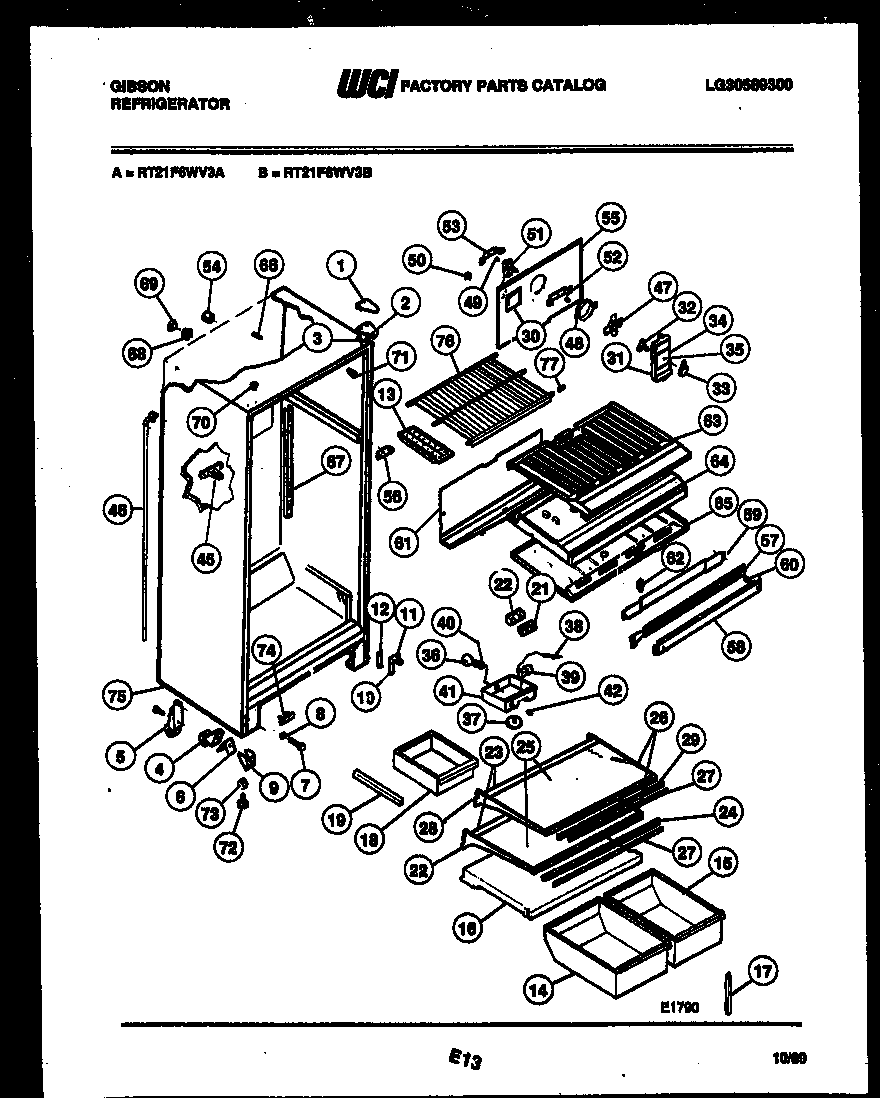

RT21F6WV3A 03 – CABINET PARTS

RT21F6WV3A 03 – CABINET PARTS

Written by

in

RT21F6WV3A 03 – CABINET PARTS

Products

PositionProduct
NI5304455649 Frigidaire Refrigerator Screw
1COVER, TOP HINGE, ALMOND
1COVER, TOP HINGE, AVOCADO
1COVER HINGE, WHITE
1COVER HINGE, WHEAT
1COVER HINGE, COFFEE
2BRACKET, TOP HINGE
3WCI G183861
3241710601 Frigidaire Refrigerator Screw
3WCI G103903
4ROLLER FRONT, ADJUSTABLE (2)
55304455651 Frigidaire Refrigerator Screw
5ROLLER, REAR (2)
5BOLT ROLLER (2)
6SPRING-ROLLER (2)
7BOLT-ROLLER (2)
8WASHER
9SUPPORT, ROLLER (2)
10HINGE-BRACKET-BOTTOM
115303001321 Frigidaire Refrigerator Lower Hinge Pin
12SHIM, HINGE
13215667501 Frigidaire Refrigerator Ice Tray Primary
14PAN-CRISPER-LS
15PAN-CRISPER-RS
16GASKET, COVER
16WCI G490064-08
17SUPPORT, CRISPER COVER
18WCI G187181-01
19WCI 3018890
19HANGER-LH (NON-ILLUSTRATED)
20WCI G162178
21WCI 3204206
22WCI G181608-04
23TRIM-FULL SHELF, REAR
24RETAINER-GLASS-FULL SHELF
25WCI 5303206577
26RAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
27WCI 5303206578
28WCI 5303206573
29RETAINER-GLASS
30PLUG, DECORATIVE
31WCI G162512-08
32NUT, DAMPER MOUNTING
32DAMPER FAN COVER
33KNOB
34LABEL – UPPER
35LABEL – LOWER
36316538904 Frigidaire Oven Lamp Light
37KNOB-TEMP CONTROL
38TUBE
39CONTROL-TEMPERATURE
39WCI G107080
40SOCKET LIGHT
41WCI 5303206574
42SWITCH-ROCKER
45PIN PUSH SPOUT (2)
45SPOUT DRAIN TUBE
46TUBE, DRAIN
46RING, SEAL (NON-ILLUSTRATED)
475308000010 Frigidaire Refrigerator Evaporator Fan Blade
48RING, FAN ORIFICE
49G187559 Frigidaire Refrigerator Bushing
50WCI G164571
515300158289 Frigidaire Evaporator Fan Motor
52WCI G185302
53WCI G185303
54TUBE, INSULATION (2)
55WCI G184609
55NUT, ORIFICE (2)
56WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
56WASHER (2)
56WCI G142220
56SCREW, BRACKET MOUNTING (4)
56BRACKET, HINGE CENTER
57WCI G177254
58WCI G180373-11
58WCI G180373-09
58WCI G180373-10
58WCI G180373-08
58MULLION, WHITE
59STRAP, MULLION MOUNTING
60SPACER (NON-ILLUSTRATED)
61WCI G177534
625309918806 Frigidaire Refrigerator Light Switch Door
63WCI G184604
64WCI 3019039
65SCREW (5)
65WCI 3019038
66WCI G163669
67WCI G1660567
67CHANNEL, SHELF (2)
68WCI G174733
69WCI G174734
70WCI G174747-11
70WCI G174747-08
70WCI G174747–01
70WCI G174747-09
70WCI G174747-10
71TRIM-CORNER, ALMOND (4)
71WCI G179684-09
71WCI G179684-10
71TRIM CORNER (4), AVOCADO
71WCI G179684-01
72WCI G186713
73NUT, ANCHOR (2)
74WCI G166912
75WCI G490004-02
76BUTTON, LINER
76SHELF-FREEZER
765304509705 Frigidaire Refrigerator Grommet
765304500407 Frigidaire Refrigerator Shelf Mounting Grommet
77WCI G193992
