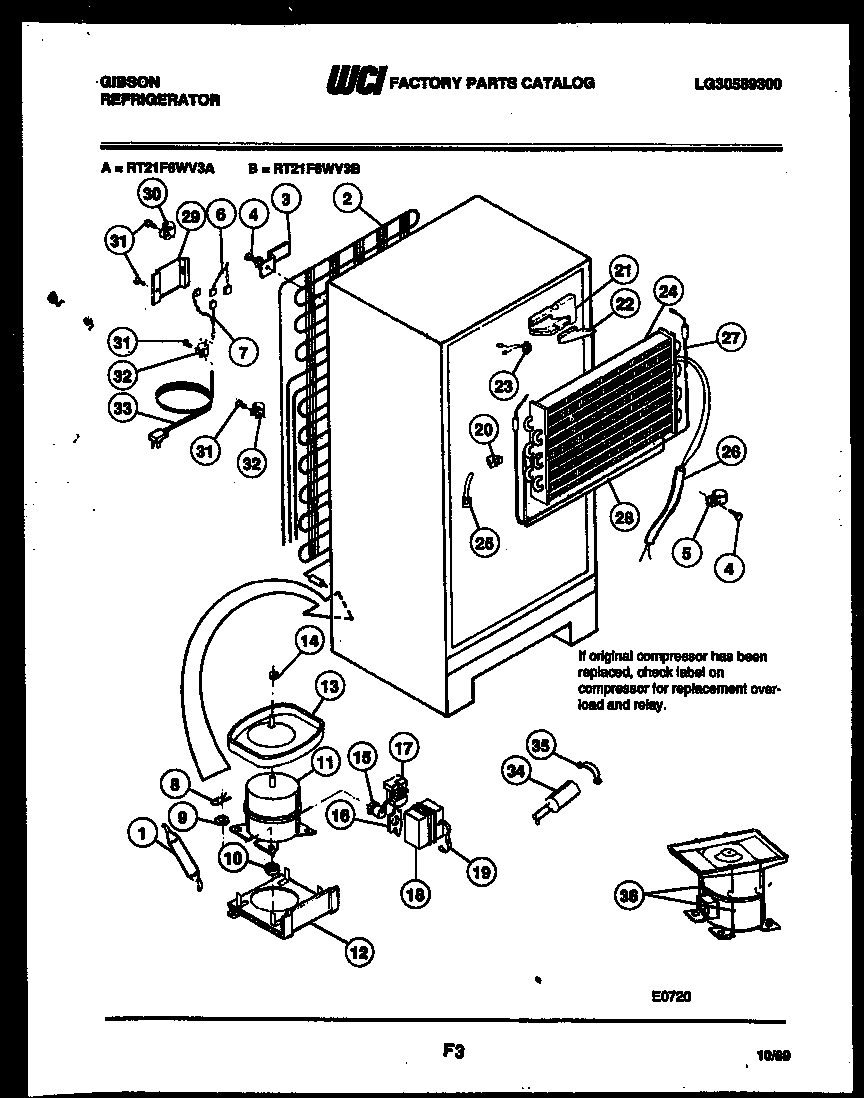

RT21F6WV3B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*16027HOT TUBE REPAIR KIT
*160275300158289 Frigidaire Evaporator Fan Motor
*160285303305677 Frigidaire Replacement Filter Dryer Filters
2WCI G163133
3BRACKET-CONDENSER MOUNTING (4)
45308000039 Frigidaire Refrigerator Screw
6HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
7HARNESS-COMPRESSOR
8CLIP, COMPRESSOR MOUNTING (4)
9WASHER, COMPRESSOR MOUNTING (4)
10218513300 Frigidaire Refrigerator Compressor Mount Grommet
11WCI 3916012
12PLATE
13DEFROST PAN
13DEFROST PAN & NUT
14NUT, LOCK
15WCI 3202863
16WCI 3202891
17WCI 3007173
18WCI 08016583
19STRAP-BALE
20BLOCK, LEFT SIDE
21BLOCK, EVAPORATOR, RH
22PLUG, EVAPORATOR INSULATION BLOCK, R H
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24EVAPORATOR
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26HEAT, EXCHANGE
275317842502 Frigidaire Defrost Heater
28INSULATOR
29WCI G183584
29CLAMP-CABLE
30240396801 Frigidaire Refrigerator Tube Clamp
315304455651 Frigidaire Refrigerator Screw
325303001199 Frigidaire Refrigerator Wiring Harness Clamp
33CORD, SERVICE
34CAPACITOR
35STRAP-CAPACITOR
36PAN RETAINER KIT-SERVICE
