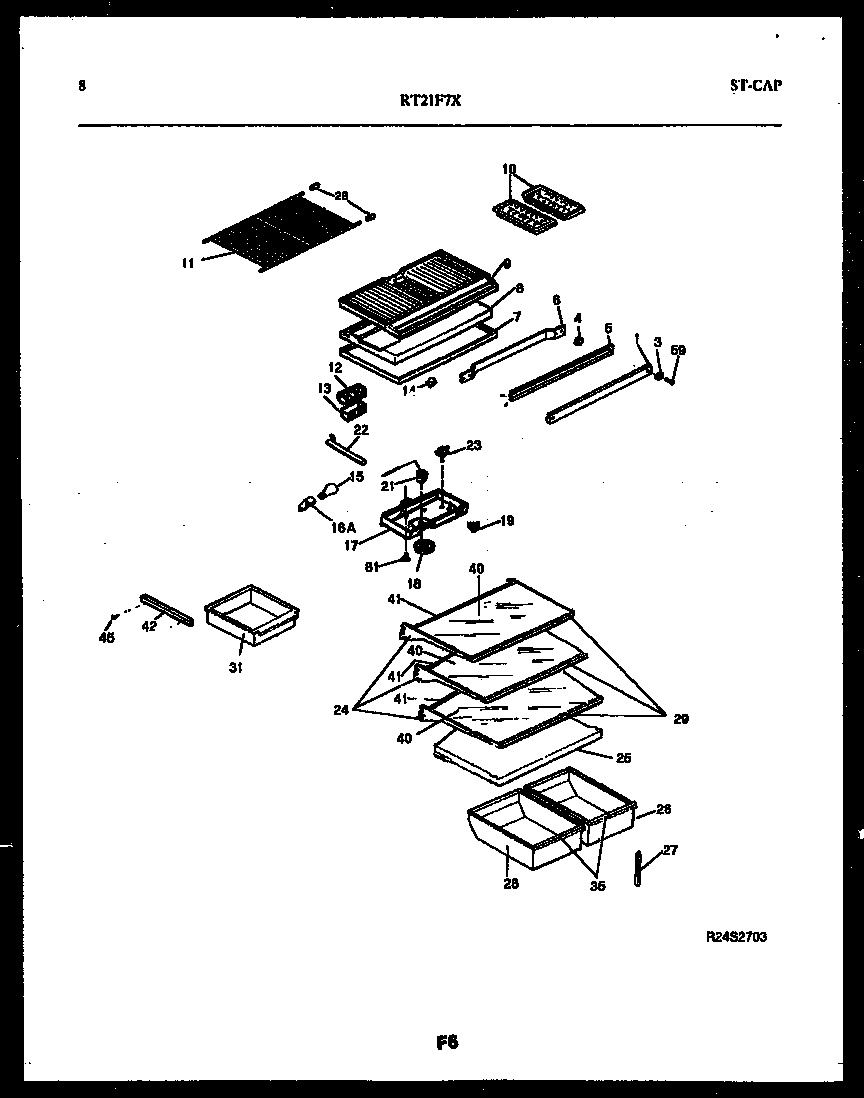

RT21F7DX3D 05 – SHELVES AND SUPPORTS

RT21F7DX3D 05 – SHELVES AND SUPPORTS

Written by

in

RT21F7DX3D 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7WCI 5303001380
7WCI 3019038
8WCI 5303019039
83205266 Frigidaire Refrigerator Edge Protector
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 3916129
125303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13EXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303272507
17WCI 08016567
18WCI 5303209251
19WCI 5303207249
21WCI 5303018894
21WCI 5303001260
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
235304455649 Frigidaire Refrigerator Screw
24FRAME, MEAT KPR SHLF, CANTILEVER
24FRAME-FULL SHELF, CANTILEVER, (2)
25COVER-CRISPER PAN
26WCI 5303275274
26WCI 5303274981
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29TRIM-FULL SHELF, SNAP-ON, FRONT
29WCI 5303209274
31WCI 5303275012
35WCI 5303274987
35WCI 5303274986
40SHELF-GLASS
41TRIM-FULL SHELF, REAR
41LOCK-SHELF TRIM, REAR
42HANGER-PAN LH
42HANGER-PAN RH (NON-ILLUSTRATED)
45WCI 08014528
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
49275CLIP-CANTILEVER SHLF
