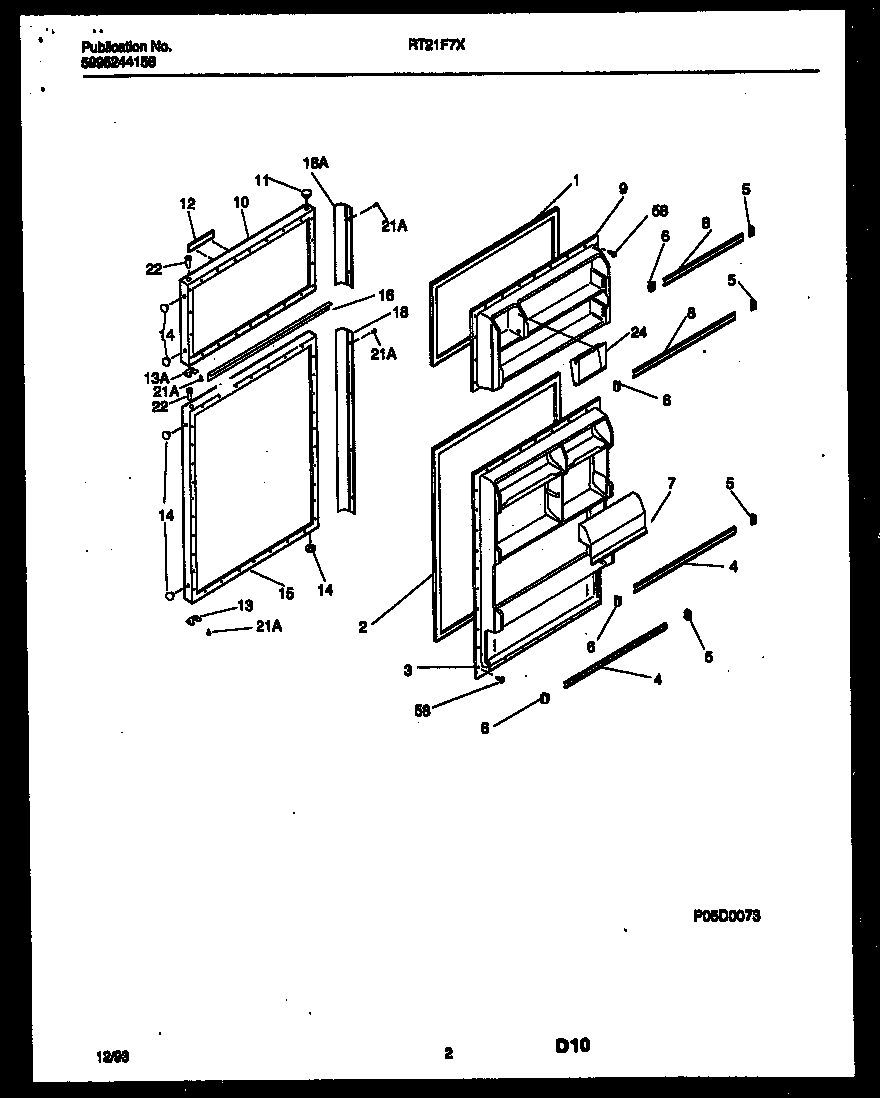

RT21F7DX3E 02 – DOOR PARTS

RT21F7DX3E 02 – DOOR PARTS

Written by

in

RT21F7DX3E 02 – DOOR PARTS

Products

PositionProduct
*61513INSULATION
1GASKET-FRZR
2GASKET-REFRIG DOOR
3WCI 5303275125
4WCI 5303275027
5WCI 5303274990
6WCI 5303274989
7WCI 5303275014
8WCI 5303275028
9WCI 5303275055
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 3916119
12NAMEPLATE ASSY
13AWCI 5308000255
13DOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND
16WCI 5318755102
18WCI 5303281406
18AHANDLE-DOOR, 19.25“ LONG, TRADITIONAL OAK
21AWCI 5308011745
22BEARING-HINGE
24WCI 5303275052
585304455651 Frigidaire Refrigerator Screw
