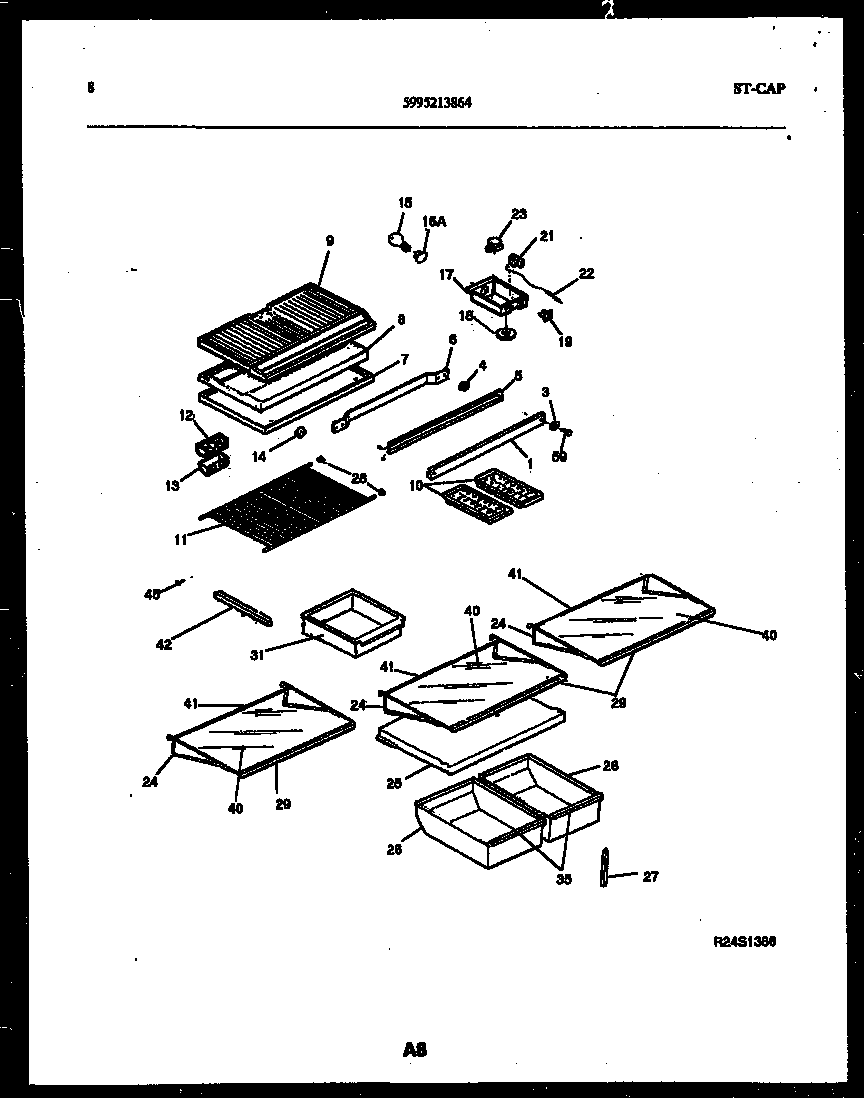

RT21F7WX3C 05 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 5303200366
3	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4	SPACER-MULLION MTG, STEEL
5	WCI 5303210351
6	WCI 5308010008
7	WCI 3019038
7	WCI 5303001380
8	HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8	WCI 5303019039
9	3205266 Frigidaire Refrigerator Edge Protector
9	BOTTOM, FREEZER
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11	WCI 3916129
12	DEFLECTRO, AIR, W/SEAL
12	EXTENSION, AIR DEFLECTOR, WITH INSULATION
12	5303001449 Frigidaire Refrigerator Seal
13	WCI 5303001448
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16A	218906802 Frigidaire Light Lamp Socket
17	WCI 5303272507
17	5304455650 Frigidaire Refrigerator Screw
18	WCI 5303209251
19	WCI 5303207249
21	WCI 5303001260
21	WCI 5303018894
22	WCI 3018891
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23	5304455649 Frigidaire Refrigerator Screw
24	FRAME, MEAT KPR SHLF, CANTILEVER
24	CLIP-CANTILEVER SHLF
24	FRAME-FULL SHELF, CANTILEVER, (2)
25	COVER-CRISPER PAN
26	WCI 5303274981
26	WCI 5303275274
27	SUPPORT-CRISPER CVR, ADJUSTABLE
28	END CAP-SHELF,PROTECTOR
29	TRIM-FULL SHELF, SNAP-ON, FRONT
31	WCI 5303275012
35	WCI 5303274986
35	WCI 5303274987
40	WCI 5303209274
40	SHELF-GLASS
41	LOCK-SHELF TRIM, REAR
41	TRIM-FULL SHELF, REAR
42	HANGER-PAN LH
42	HANGER-PAN RH (NON-ILLUSTRATED)
45	WCI 08014528
59	WCI 5308012258
