RT21F7WX3D 02 – DOOR PARTS

RT21F7WX3D 02 – DOOR PARTS

Written by

in

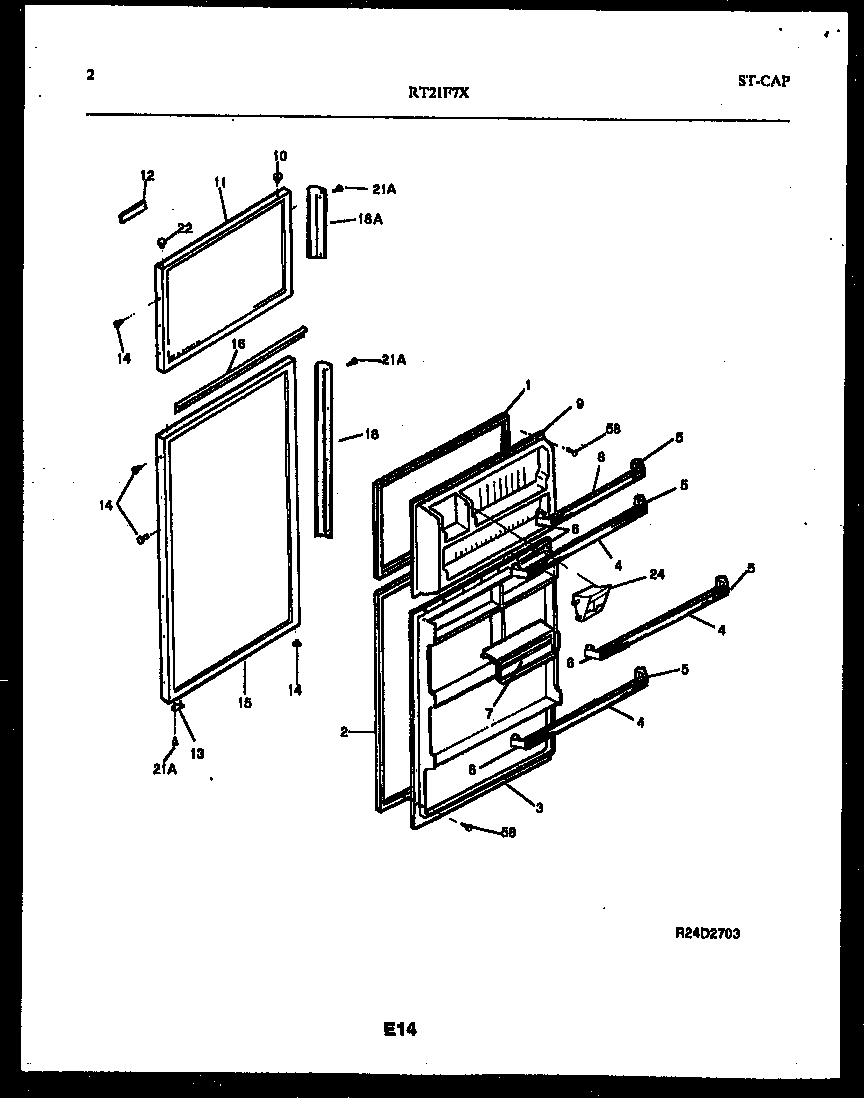

RT21F7WX3D 02 – DOOR PARTS

Products

PositionProduct
*49256INSULATION-BULK (NON-ILLUSTRATED)
1GASKET-FRZR
2GASKET-REFRIG DOOR
3WCI 5303275125
4WCI 5303275027
5WCI 5303274990
6WCI 5303274989
7WCI 5303275014
8WCI 5303275028
9WCI 5303275055
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303916115
12NAMEPLATE ASSY
13DOOR STOP, REFR SECTION
13WCI 5308000255
14240494001 Frigidaire Refrigerator Plug Button
15PANEL-REFR DOOR, WHITE
16WCI 5318755102
18WCI 5303281406
18AHANDLE-DOOR, 19.25“ LONG, TRADITIONAL OAK
21AWCI 5308011745
22BEARING-HINGE
24WCI 5303275052
585304455651 Frigidaire Refrigerator Screw
