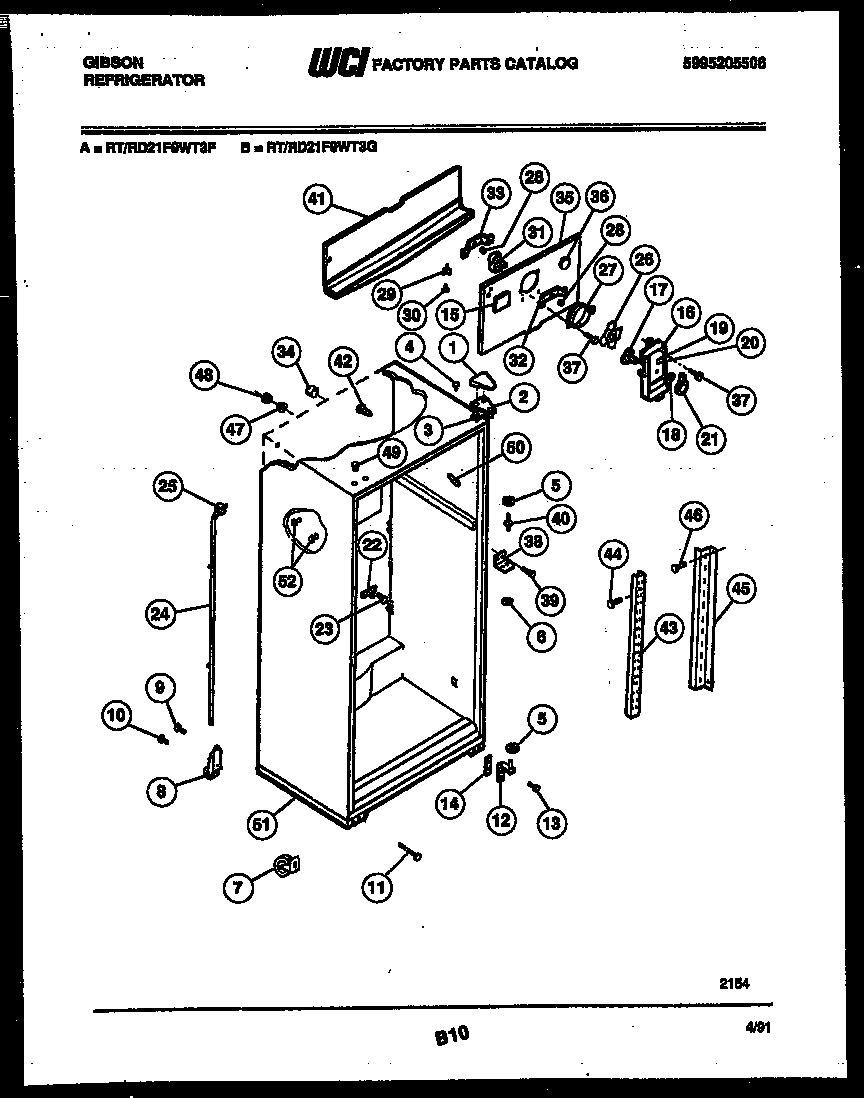

RT21F9WT3G 03 – CABINET PARTSadmin2025-04-26T10:25:31+00:00RT21F9WT3G 03 – CABINET PARTS
Products
| Position | Product |
|---|
| *43545 | 5304500407 Frigidaire Refrigerator Shelf Mounting Grommet |
| *43545 | PLUG, BUTTON, CABINET LINER (NI) |
| *43545 | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| 1 | COVER-UPPER HINGE, WHITE |
| 1 | COVER-HINGE-AVOCADO |
| 1 | COVER - HINGE-WHEAT |
| 1 | WCI 5303001666 |
| 1 | COVER-UPPER HINGE, ALMOND |
| 2 | BRACKET-UPPER HINGE |
| 3 | SHIM - UPPER HINGE |
| 5 | WASHER, .34 X .62 X .05, NYLON |
| 6 | WCI 5308000186 |
| 7 | WCI 5303212490 |
| 8 | WCI 5308009773 |
| 9 | 5304455651 Frigidaire Refrigerator Screw |
| 10 | BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2) |
| 11 | BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750 |
| 12B | TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED) |
| 12 | BRACKET-LOWER HINGE, W/ HINGE PIN |
| 12A | TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED) |
| 13 | 241710601 Frigidaire Refrigerator Screw |
| 14 | WCI 5303212488 |
| 15 | BUTTON - DECORATIVE PLUG |
| 16 | WCI 5303201444 |
| 17 | DAMPER-FAN COVER |
| 18 | Nut,push-on |
| 19 | LABEL - UPPER |
| 20 | LABEL - LOWER |
| 21 | WCI 5308011763 |
| 22 | WCI 5308000056 |
| 23 | WCI 5303001361 |
| 24 | WCI 5303210377 |
| 25 | WCI 5303207353 |
| 26 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 27 | RING-FAN ORIFICE |
| 28 | G187559 Frigidaire Refrigerator Bushing |
| 29 | WCI 5308000107 |
| 31 | 5300158289 Frigidaire Evaporator Fan Motor |
| 32 | WCI 5303205118 |
| 33 | BRACKET-MOTOR MTG, REAR |
| 34 | TUBE-RUBBER |
| 35 | COVER, COIL |
| 35A | NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED) |
| 36 | 5303208309 Frigidaire Refrigerator Plug Hole |
| 37 | 5304455650 Frigidaire Refrigerator Screw |
| 38 | BRACKET-CTR HINGE |
| 39 | WCI 5308012258 |
| 40 | WCI 5308000184 |
| 41 | WCI 5303001470 |
| 42 | SUPPORT-COIL COVER |
| 43 | WCI 5303015409 |
| 44 | WCI 5308016568 |
| 45 | CHANNEL, RH & LH |
| 46 | 5304455852 Frigidaire Refrigerator Screw |
| 47 | WCI 5303001286 |
| 48 | WCI 5303001287 |
| 49 | PLUG-BUTTON, WHITE |
| 49 | PLUG-BUTTON, ALMOND, UPR HINGE HOLES |
| 49 | BUTTON-HINGE-WHEAT |
| 49 | BUTTON-HINGE-AVOCADO |
| 49 | PLUG, COFFEE |
| 50 | WCI 5303202338 |
| 50 | WCI 5303202339 |
| 50 | TRIM-CABINET CORNER, ALMOND |
| 50 | TRIM-CABINET CORNER, WHITE |
| 50 | CORNER |
| 51 | WCI 5303212487 |
| 52 | 5304509705 Frigidaire Refrigerator Grommet |
