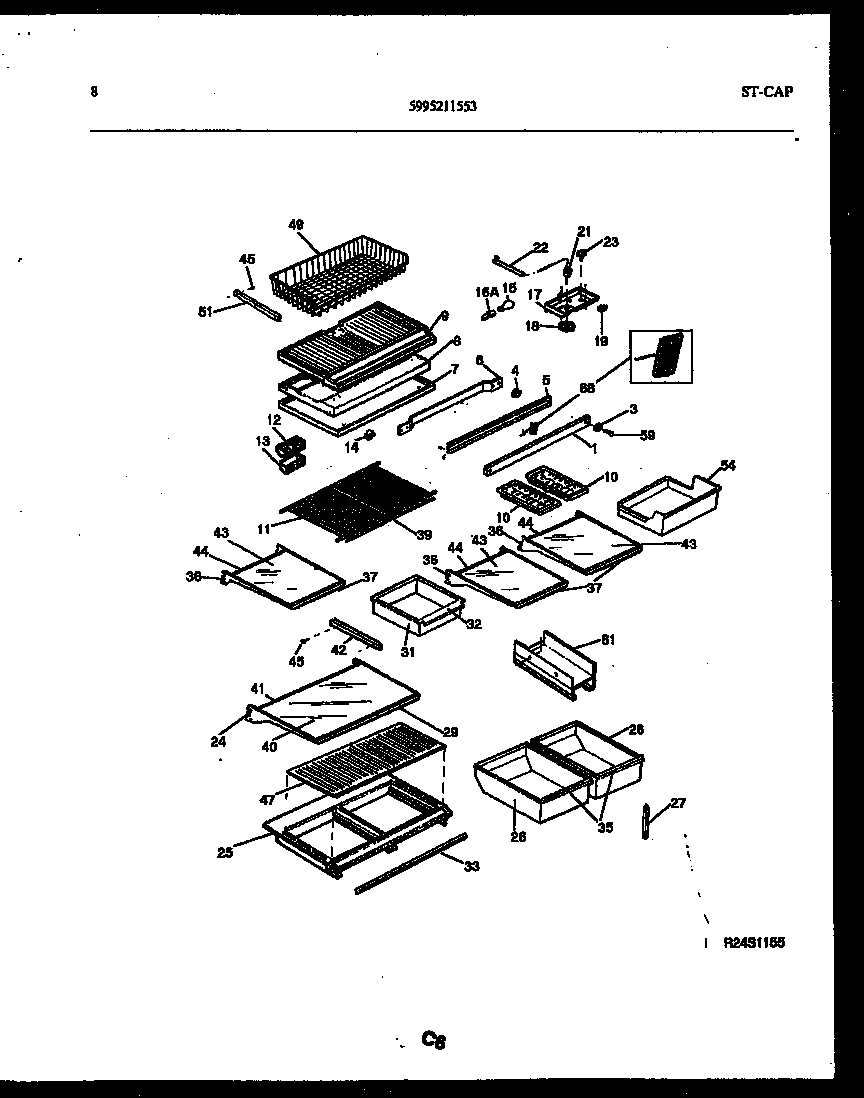

RT21F9WX3A 05 – SHELVES AND SUPPORTS

RT21F9WX3A 05 – SHELVES AND SUPPORTS

Written by

in

RT21F9WX3A 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303211920
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7WCI 5303001380
7WCI 3019038
8WCI 5303019039
8WCI 5303211926
9BOTTOM, FREEZER
93205266 Frigidaire Refrigerator Edge Protector
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF
12EXTENSION, AIR DEFLECTOR, WITH INSULATION
125303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
175304455650 Frigidaire Refrigerator Screw
17WCI 5303272507
18WCI 5303209251
19WCI 5303272508
21WCI 5303018894
21WCI 5303001260
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
235304455649 Frigidaire Refrigerator Screw
24CLIP-CANTILEVER SHLF
24FRAME-FULL SHELF, CANTILEVER, (2)
25COVER-CRISPER PAN
25WCI 5303279636
26WCI 5303274981
26WCI 5303275274
26WCI 5303279635
27WCI 5303206505
29TRIM-FULL SHELF, SNAP-ON, FRONT
31WCI 5303279569
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
35WCI 5303274987
35WCI 5303274986
36WCI 5303209270
36WCI 5303209266
37WCI 5303279765
37WCI 5303279766
39TRIM-FRZR SHELF
40SHELF-GLASS
40WCI 5303209274
41TRIM-FULL SHELF, REAR
41LOCK-SHELF TRIM, REAR
42HANGER-PAN RH (NON-ILLUSTRATED)
42HANGER-PAN LH
43WCI 5303279785
43RETAINER-GLASS, (3) (NON-ILLUSTRATED)
43WCI 5303279786
44WCI 5303279769
44WCI 5303279768
45WCI 08014528
47WCI 5303279700
49WCI 5303206649
51HANGER-BASKET, LH (NON-ILLUSTRATED)
51WCI 5303206521
545303212918 Frigidaire Refrigerator Cont
59WCI 5308012258
61WCI 5318609501
68WCI 5303211924
37927WCI 5303279879
37927WCI 5303211925
