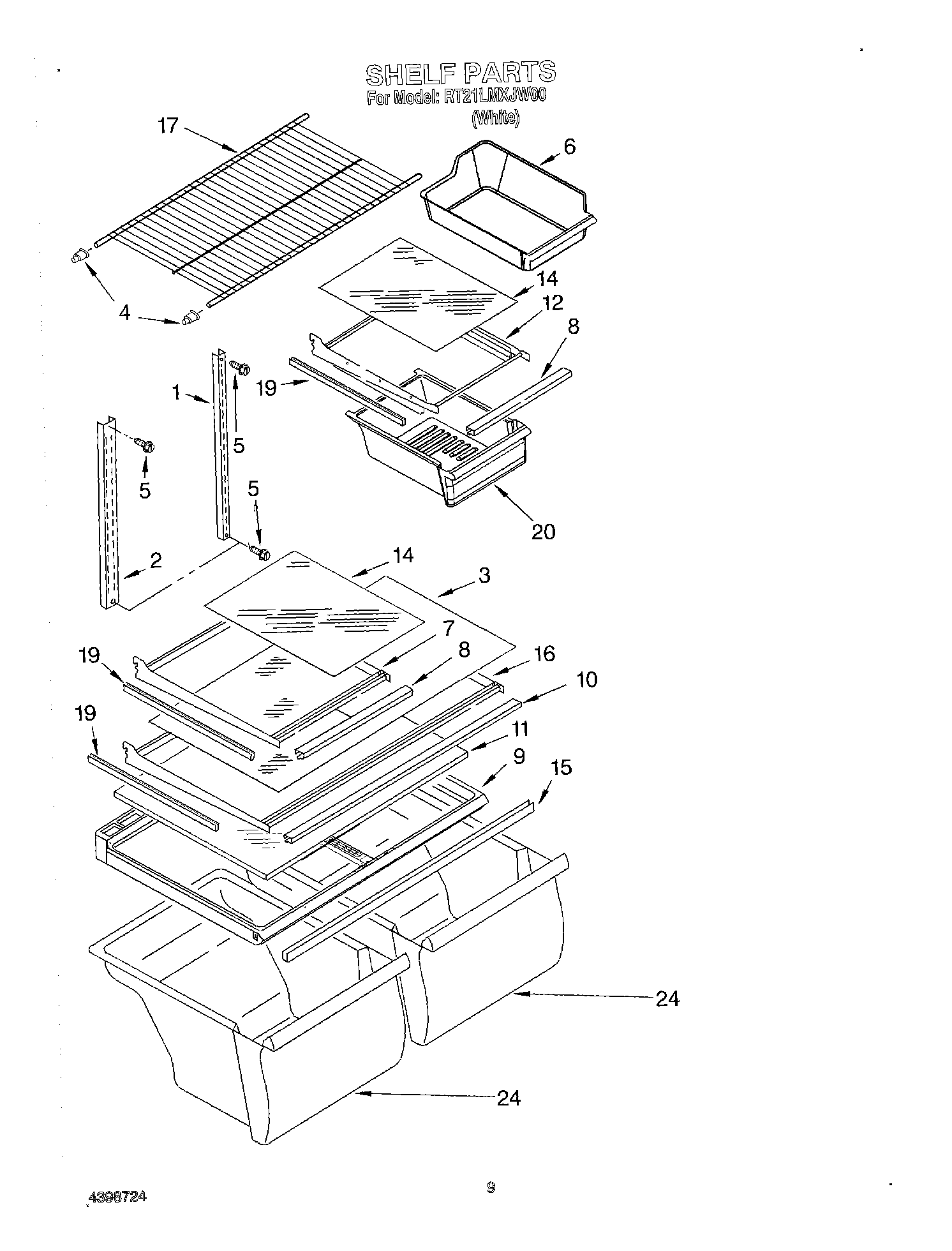

| 1 | Shelf, Ladder (2) |
| 2 | Shelf, Ladder |
| 3 | Glass, Full Shelf |
| 4 | 2163762 Whirlpool Refrigerator Cup Assembly |
| 5 | Screw, Anchor (3) |
| 6 | 2254352A Whirlpool Refrigerator Ice Container |
| 7 | Shelf, Cantilever |
| 8 | Trim, Shelf Front |
| 9 | WP2314549 Whirlpool Refrigerator Cover |
| 10 | Trim, Shelf Front Front/Rear F.W. |
| 11 | WP2176225 Whirlpool Glass Shelf |
| 12 | Pan, Shelf Cantilever |
| 14 | Glass, Shelf |
| 15 | WP2172748 Whirlpool Drawer Support |
| 16 | Shelf, Full Cantilever |
| 17 | Shelf, Freezer |
| 19 | Trim, Shelf Side |
| 20 | WP2218132K Whirlpool Crisper Meat Pan |
| 24 | W10854037 Whirlpool Refrigerator Crisper Pan |
