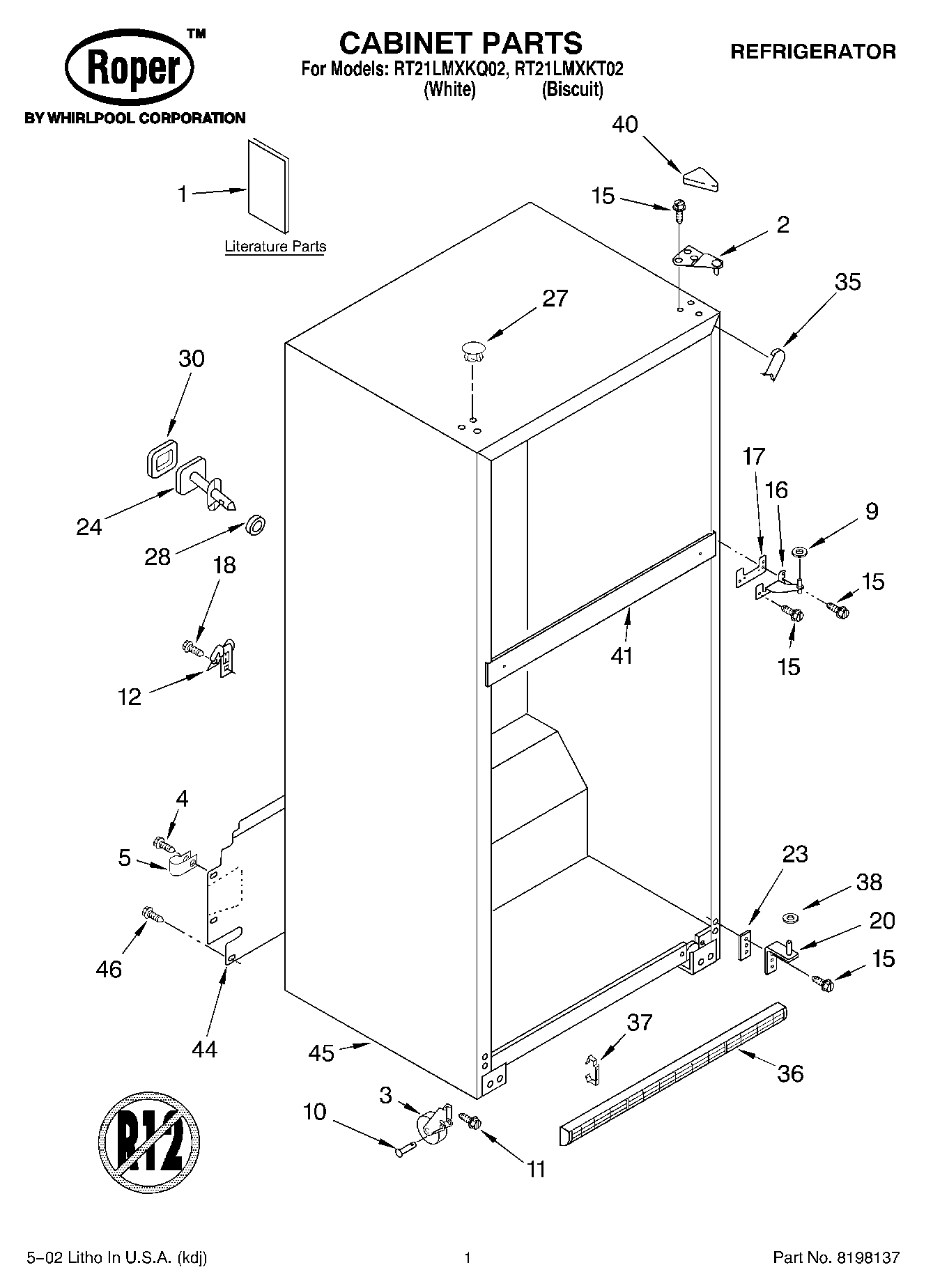

RT21LMXKQ02 01 – CABINET, LITERATURE

Products

Position	Product
1	LITERATURE PARTS (Customer Quick Tips)
1	Literature Parts (Energy Label)
1	Literature Parts (Service & Wiring Sheet)
1	Literature Parts (Use & Care Guide)
1	Modular Icemaker Service Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	WP489464 Whirlpool Refrigerator Screw
5	WP488366 Whirlpool Refrigerator Clamp
9	WP489467 Whirlpool Hinge Shim
10	W11594405 Whirlpool Axle
11	WP3400504 Whirlpool Refrigerator Screw
12	549193 Whirlpool Refrigerator Power Clamp
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
20	WP2254473 Whirlpool Refrigerator Door Hinge
23	Shim, Bottom Hinge
24	Fitting, Water Tube (Not Serviced)
27	WP2151652 Whirlpool Refrigerator Button Plug
27	Hole Plug (6) (Biscuit)
28	Seal, Front (Not Serviced)
30	Seal, Rear (Not Serviced)
35	WPW10283959 Whirlpool Refrigerator Filler
35	W10283958 Whirlpool Refrigerator Filler
36	Grille (Biscuit)
36	Grille (White)
37	CLIP, GRILLE
38	WP487576 Whirlpool Washer
40	WP2213360 Whirlpool Refrigerator Cover
40	2213364 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
44	Cover, Unit
45	Cabinet (Not A Serviceable Part)
46	WP489427 Whirlpool Refrigerator Screw
