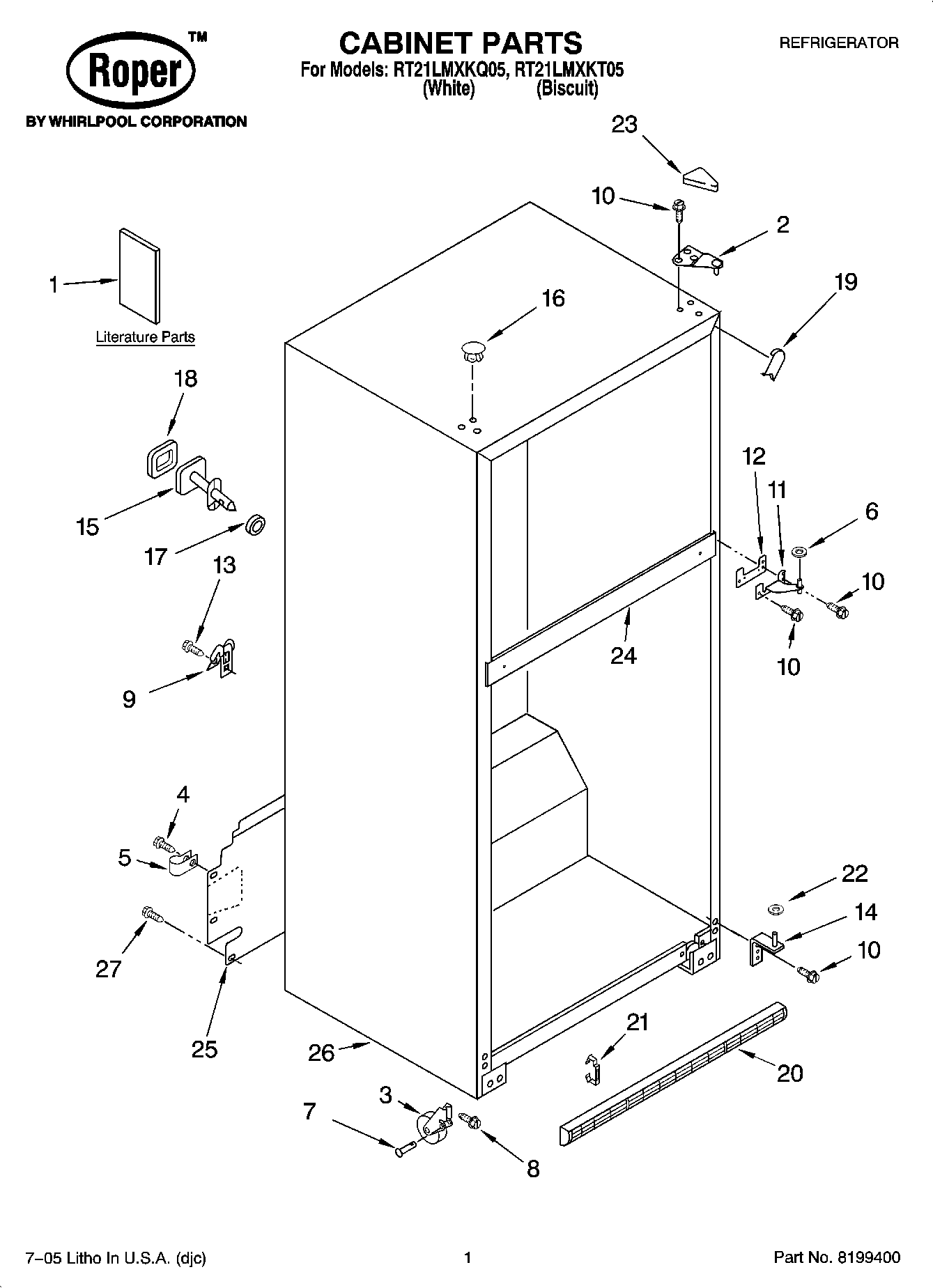

RT21LMXKQ05 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	Energy Label
1	Service & Wiring Sheet
1	Customer Instructions
1	Use & Care Guide
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	WP489464 Whirlpool Refrigerator Screw
5	WP488366 Whirlpool Refrigerator Clamp
6	WP489467 Whirlpool Hinge Shim
7	W11594405 Whirlpool Axle
8	WP3400504 Whirlpool Refrigerator Screw
9	549193 Whirlpool Refrigerator Power Clamp
10	WP489497 Whirlpool Screw
11	WP2254618 Whirlpool Center Door Hinge
12	WP2183854 Whirlpool Refrigerator Shim
14	WP2254473 Whirlpool Refrigerator Door Hinge
15	Fitting, Water Tube (Not Serviced)
16	WP2151652 Whirlpool Refrigerator Button Plug
16	Hole Plug (6) (Biscuit)
17	Seal, Front (Not Serviced)
18	Seal, Rear (Not Serviced)
19	WPW10283959 Whirlpool Refrigerator Filler
19	W10283958 Whirlpool Refrigerator Filler
20	Grille (White)
20	Grille (Biscuit)
21	CLIP, GRILLE
22	WP487576 Whirlpool Washer
23	2213364 Whirlpool Refrigerator Cover
23	WP2213360 Whirlpool Refrigerator Cover
24	Rail Center (Not Serviced)
25	Cover, Unit
26	Cabinet (Not A Serviceable Part)
27	WP489427 Whirlpool Refrigerator Screw
