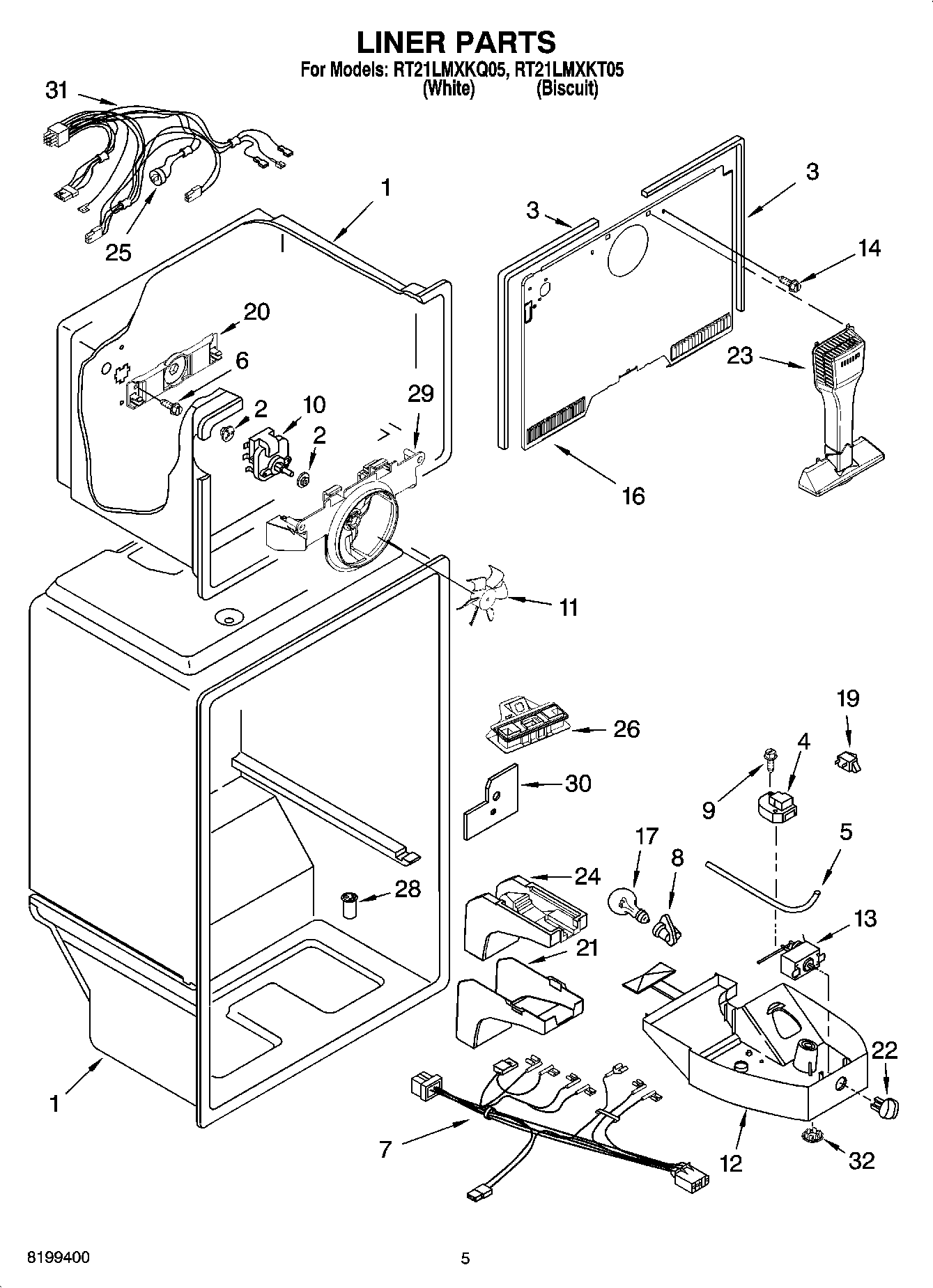

RT21LMXKQ05 03 – LINER PARTSadmin2025-04-26T12:50:02+00:00RT21LMXKQ05 03 – LINER PARTS ProductsPositionProduct1Liner (Not A Serviceable Part)2WP2264462 Whirlpool Refrigerator Grommet3WP2254360 Whirlpool Refrigerator Gasket4WP2314156 Whirlpool Refrigerator Defrost Timer5WP2196003 Whirlpool Refrigerator Bar Riser6WP488163 Whirlpool Refrigerator Screw7Wire Assy. Control Box84387478 Whirlpool Refrigerator Light Socket9WP98129 Whirlpool Screw10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor11WP2163777 Whirlpool Refrigerator Fan Blade12Control Box13WP2204605 Whirlpool Refrigerator Thermostat14WP489478 Whirlpool Refrigerator Screw16Cover, Evaporator17W10887190 Whirlpool Refrigerator Light Bulb19W11384469 Whirlpool Door Switch202254454 Whirlpool Refrigerator Bracket21Cover, Air Diffuser22WP2202885 Whirlpool Refrigerator Thermal Knob23WP2254354 Whirlpool Refrigerator Air Tower24WP2189452 Whirlpool Refrigerator Diffuser25WP2321800 Whirlpool Refrigerator Bimetallic Defrost26Air Separator Assembly28WP2210509 Whirlpool Refrigerator Tub Valve29BRACKET, FAN MOTOR30Shield, heat312310099 Whirlpool Refrigerator Wire Harness32940014 Whirlpool Refrigerator Primary Button Plug
