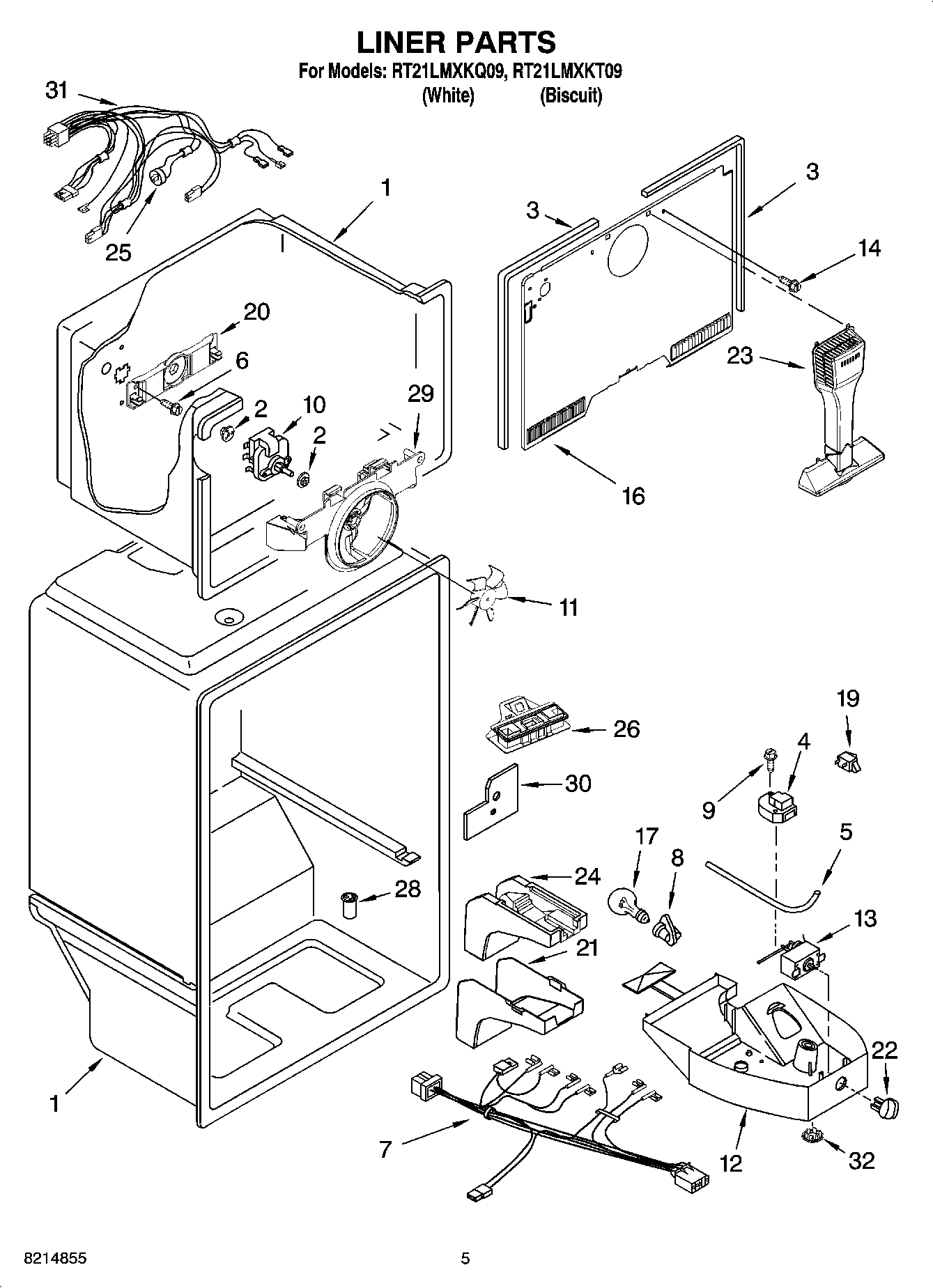

RT21LMXKQ09 03 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WP2314156 Whirlpool Refrigerator Defrost Timer
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	WP488163 Whirlpool Refrigerator Screw
7	Wire Assembly Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	WP98129 Whirlpool Screw
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	WP2204605 Whirlpool Refrigerator Thermostat
14	WP489478 Whirlpool Refrigerator Screw
16	Cover, Evaporator
17	W10887190 Whirlpool Refrigerator Light Bulb
19	W11384469 Whirlpool Door Switch
20	2254454 Whirlpool Refrigerator Bracket
21	Cover, Air Diffuser
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	WP2321800 Whirlpool Refrigerator Bimetallic Defrost
26	Air Separator Assembly
28	WP2210509 Whirlpool Refrigerator Tub Valve
29	BRACKET, FAN MOTOR
30	Shield, heat
31	2310099 Whirlpool Refrigerator Wire Harness
32	940014 Whirlpool Refrigerator Primary Button Plug
