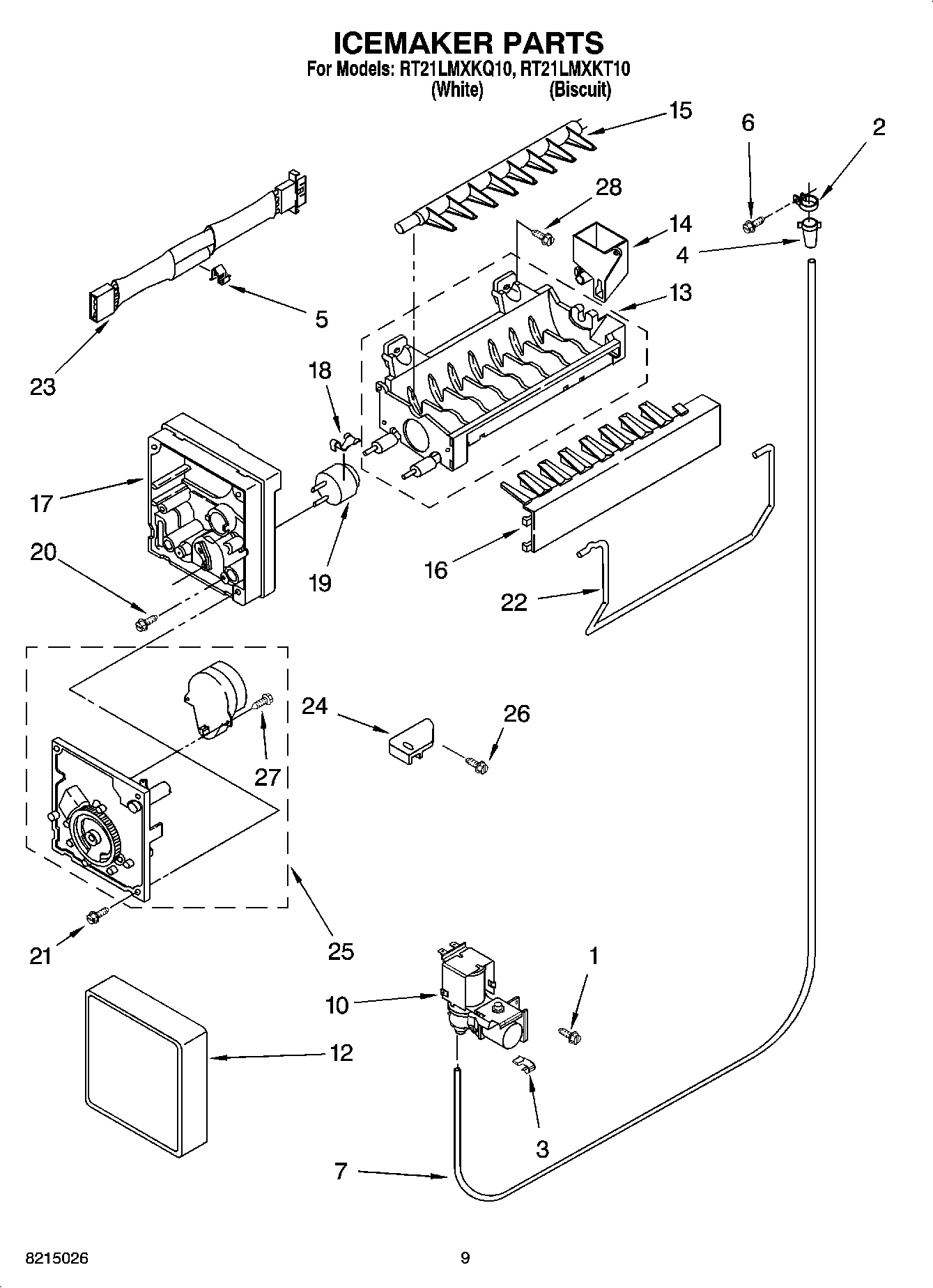

RT21LMXKQ10 05 – ICEMAKER PARTSadmin2025-04-26T12:53:36+00:00RT21LMXKQ10 05 – ICEMAKER PARTS ProductsPositionProduct1WP489464 Whirlpool Refrigerator Screw2WP488878 Whirlpool Refrigerator Tube Clamp32210495 Whirlpool Refrigerator Clip44387491 Whirlpool Refrigerator Insert5WP628379 Whirlpool Refrigerator Clip6WP488787 Whirlpool Refrigerator Screw7W10823511 Whirlpool Refrigerator Water Tube10VALVE-INLT12WPW10289690 Whirlpool Ice Maker Cover13WPW10190929 Whirlpool Refrigerator Ice Maker Mold14WP628356 Whirlpool Refrigerator Fill Cup15WP627843 Whirlpool Refrigerator Ejector Arm16WP2182124 Whirlpool Refrigerator Stripper Arm17WP2195914 Whirlpool Refrigerator Ice Maker Housing18WP2315522 Whirlpool Refrigerator Clip19WP627985 Whirlpool Icemaker Cycling Thermostat208533917 Whirlpool Refrigerator Screw21WP681249 Whirlpool Screw Assembly22WP627792 Whirlpool Refrigerator Shut Off Arm23WP2187464 Whirlpool Refrigerator Wire Harness24W11500948 Whirlpool Refrigerator Bracket25W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly26WP489478 Whirlpool Refrigerator Screw27489136 Whirlpool Refrigerator Screw28WP488163 Whirlpool Refrigerator Screw1004317943 Whirlpool Refrigerator Ice Maker Assembly
