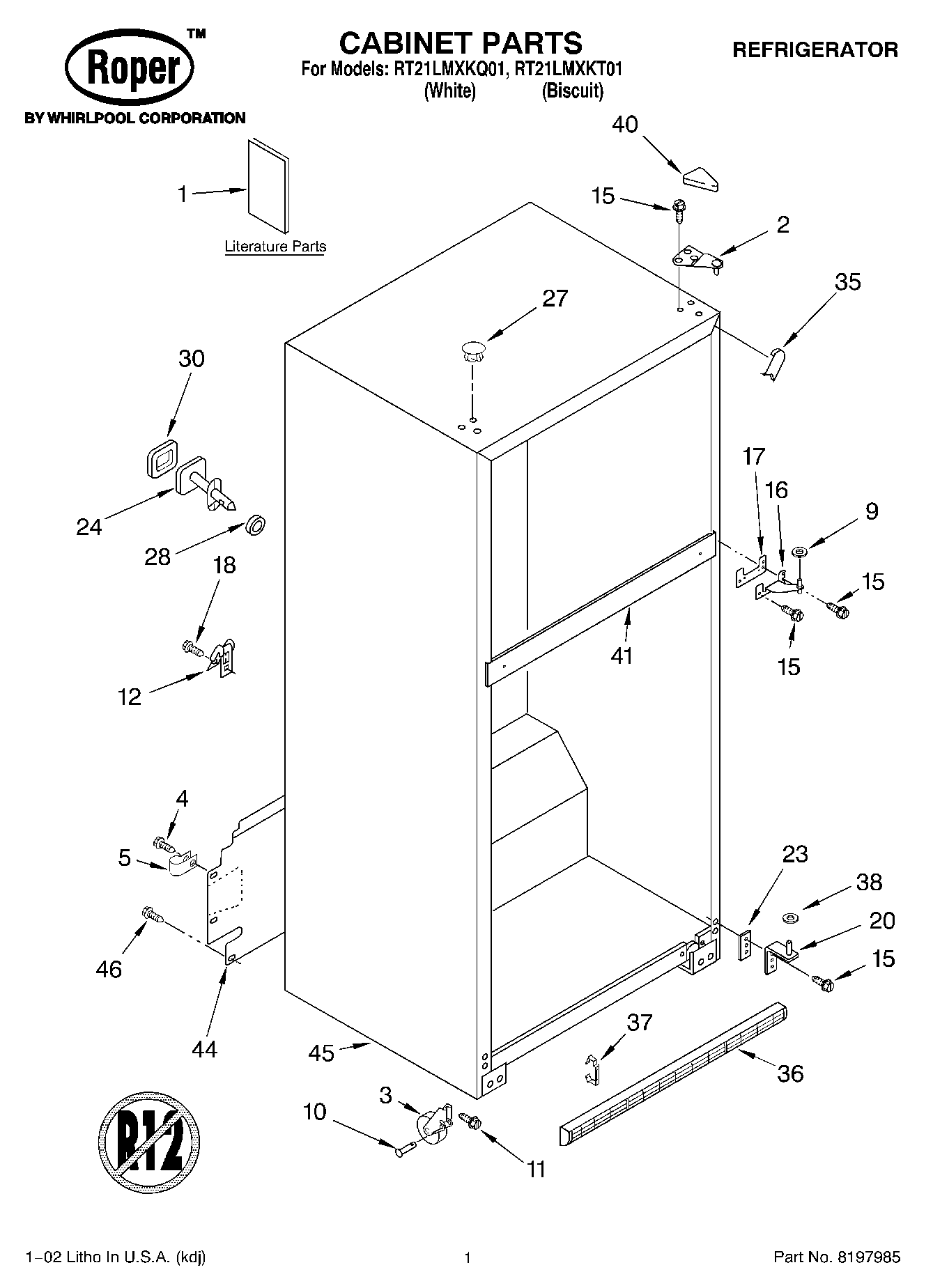

RT21LMXKT01 01 – CABINET, LITERATURE

Products

PositionProduct
1LITERATURE PARTS (Customer Quick Tips)
1Energy Label
1Literature Parts (Use & Care Guide)
1Literature Parts (Service & Wiring Sheet)
1Modular Icemaker Service Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP489464 Whirlpool Refrigerator Screw
5WP488366 Whirlpool Refrigerator Clamp
9WP489467 Whirlpool Hinge Shim
10W11594405 Whirlpool Axle
11WP3400504 Whirlpool Refrigerator Screw
12549193 Whirlpool Refrigerator Power Clamp
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
20WP2254473 Whirlpool Refrigerator Door Hinge
23Shim, Bottom Hinge
24Fitting, Water Tube (Not Serviced)
27WP2151652 Whirlpool Refrigerator Button Plug
27Hole Plug (6) (Biscuit)
28Seal, Front (Not Serviced)
30Seal, Rear (Not Serviced)
35WPW10283959 Whirlpool Refrigerator Filler
35W10283958 Whirlpool Refrigerator Filler
36Grille (White)
36Grille (Biscuit)
37CLIP, GRILLE
38WP487576 Whirlpool Washer
402213364 Whirlpool Refrigerator Cover
40WP2213360 Whirlpool Refrigerator Cover
41Rail Center (Not Serviced)
44Cover, Unit
45Cabinet (Not A Serviceable Part)
46WP489427 Whirlpool Refrigerator Screw
