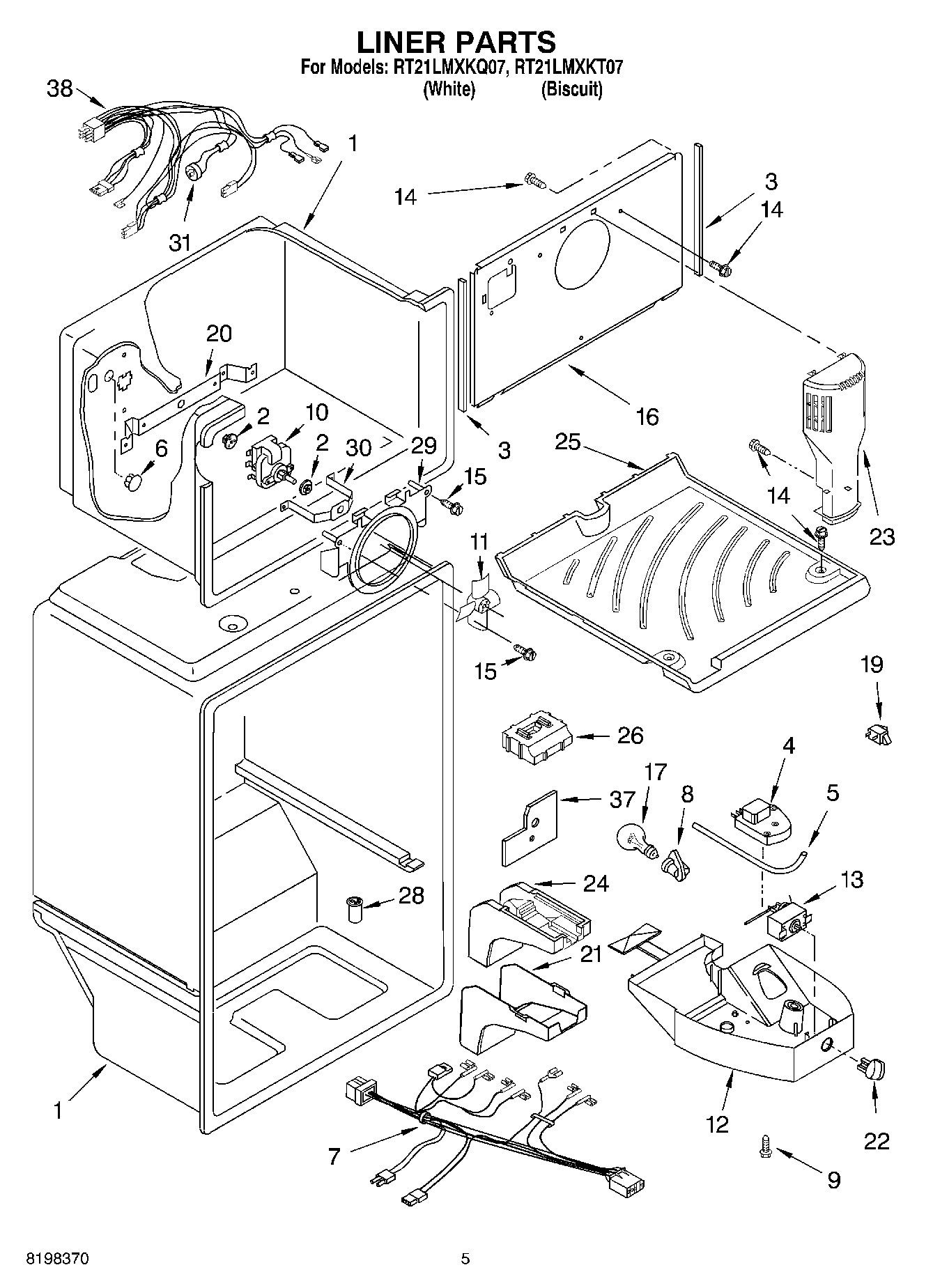

RT21LMXKT07 03 – LINER

RT21LMXKT07 03 – LINER

Written by

in

RT21LMXKT07 03 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4Defrost Timer
5WP2196003 Whirlpool Refrigerator Bar Riser
6WP941839 Whirlpool Refrigerator Button Plug
7Wire Assy. Control Box
84387478 Whirlpool Refrigerator Light Socket
9WP98129 Whirlpool Screw
10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13WP2204605 Whirlpool Refrigerator Thermostat
14WP693995 Whirlpool Screw
15WP489464 Whirlpool Refrigerator Screw
16Cover, Evaporator
17W10887190 Whirlpool Refrigerator Light Bulb
19W11384469 Whirlpool Door Switch
20Bracket, Evap. Fan, Rear
21Cover, Air Diffuser
22WP2202885 Whirlpool Refrigerator Thermal Knob
23Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
25Floor, Freezer
26AIR SEPARATOR ASSEMBLY
28WP2210509 Whirlpool Refrigerator Tub Valve
29Bracket, Fan Motor
30Bracket, Evap. Fan, Front
31WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
37Shield, heat
38Wire Assembly, Freezer Compartment
