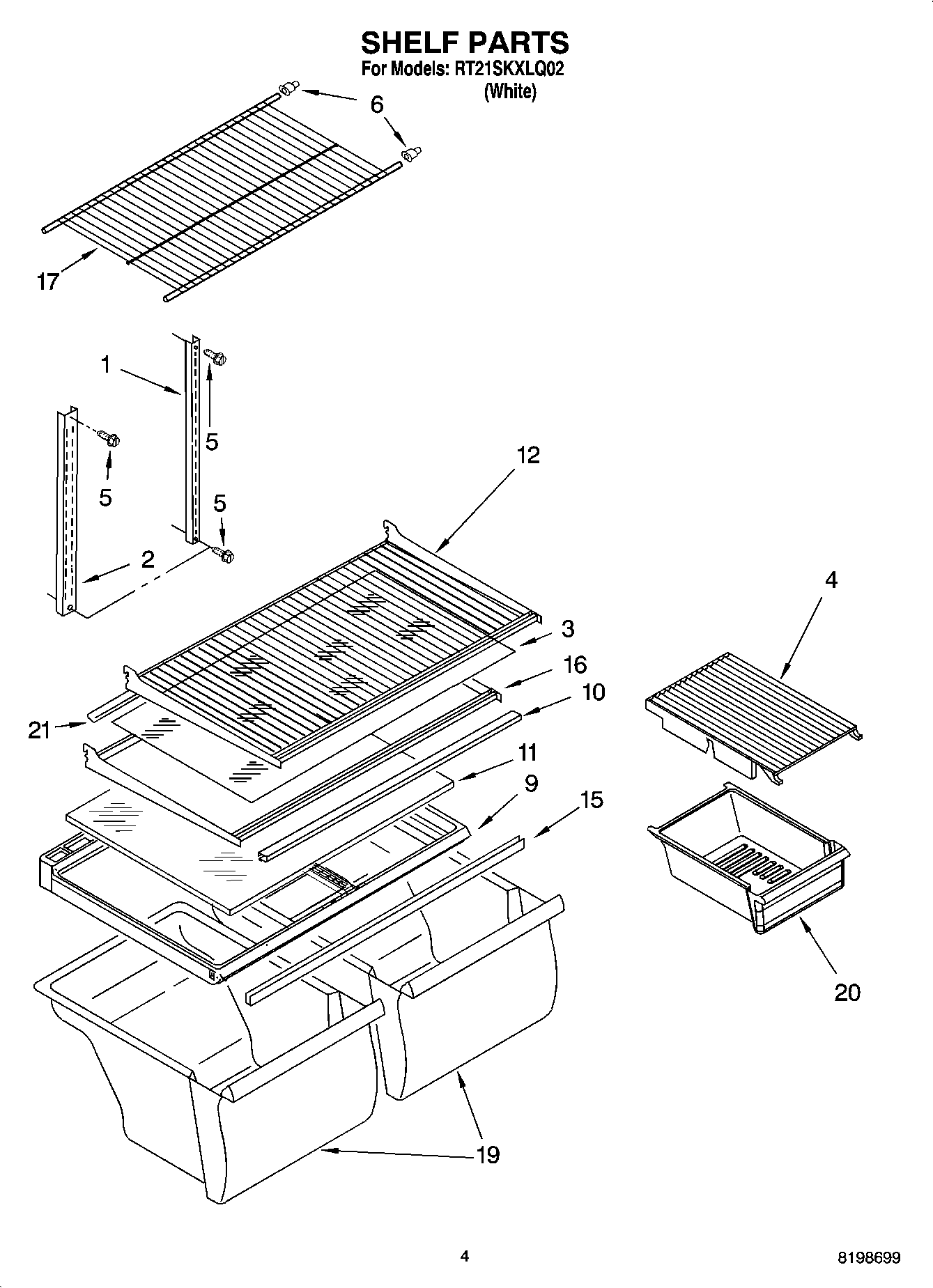

RT21SKXLQ02 03 – SHELF PARTS

RT21SKXLQ02 03 – SHELF PARTS

Written by

in

RT21SKXLQ02 03 – SHELF PARTS

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder
3Glass, Full Shelf
4Cover, Meat Pan
5WP489478 Whirlpool Refrigerator Screw
62163762 Whirlpool Refrigerator Cup Assembly
9WP2314549 Whirlpool Refrigerator Cover
10Trim, Shelf (Front)
11WP2176225 Whirlpool Glass Shelf
12Shelf, Full Cantilever (3)
15WP2172748 Whirlpool Drawer Support
16Shelf, Full Cantilever
17Shelf, Freezer
19W10854037 Whirlpool Refrigerator Crisper Pan
20PAN-MEAT
21WP2188689 Whirlpool Refrigerator Shelf Trim
