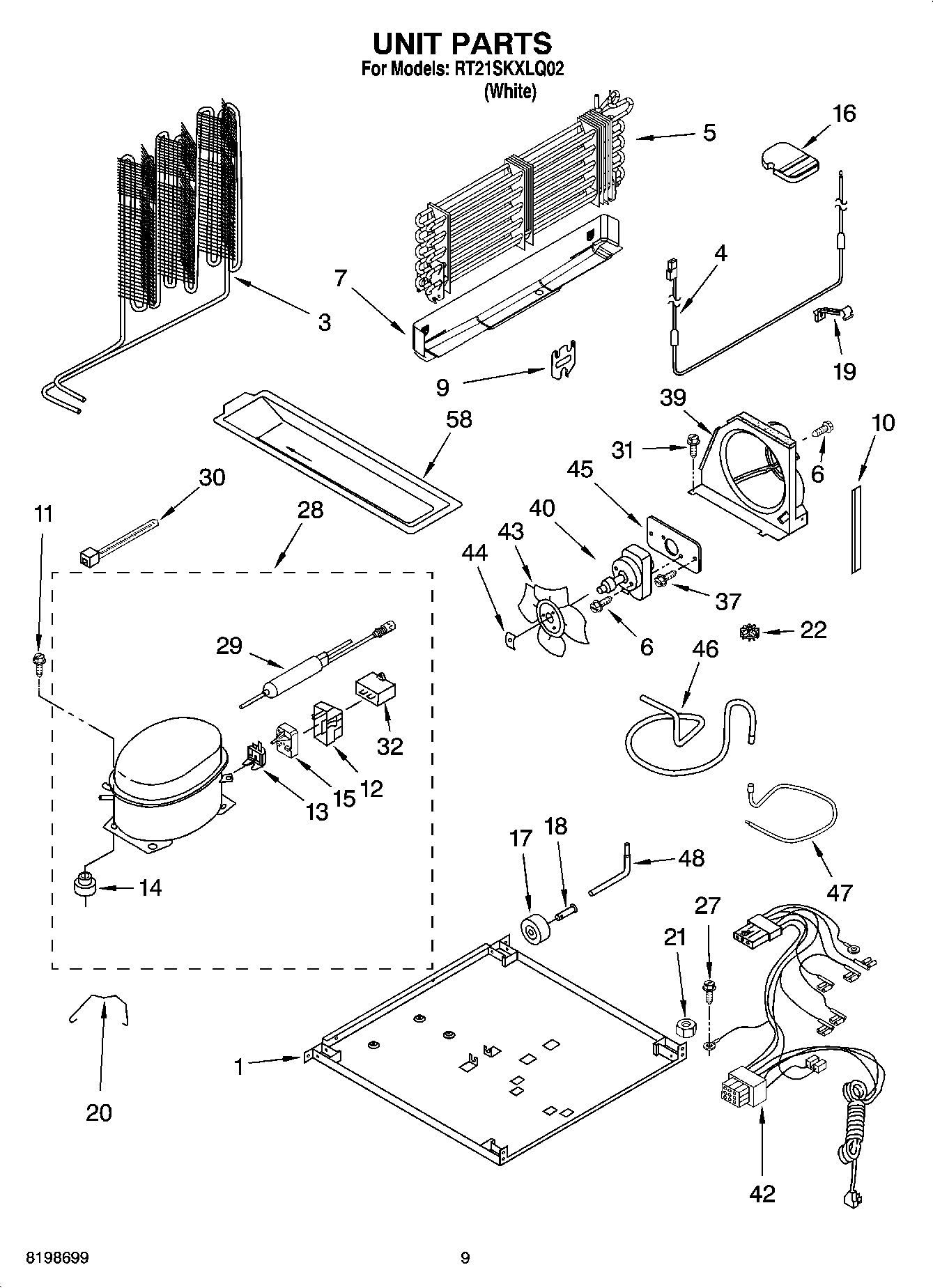

RT21SKXLQ02 06 – UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
285006 Whirlpool Spray
876370 Whirlpool Refrigerator Insulation
WPL ARI128288A
WPL ARI128292A
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
72032 Whirlpool Touch Up Paint Black
833938 Whirlpool Refrigerator Terminal
606755 Whirlpool Refrigerator Bag
799344 Whirlpool Refrigerator Paint
WPL ARI128291A
WP72107 Whirlpool Touchup
Almond (Uncut)
WPL ARI128290A
350956 Whirlpool Spray Assembly
WPL ARI128289A
WP503695 Whirlpool Refrigerator Sealer
350930 Whirlpool White Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
1Plate, Unit Mounting
3WP2214960 Whirlpool Refrigerator Condenser
4WP2315530 Whirlpool Refrigerator Heater
5EVAPORATOR ASSY.
68281197 Whirlpool Refrigerator Screw
7Drain Pan
9Bracket, Heater
10Extension, Air Baffle
12WP2162358 Whirlpool Refrigerator Terminal Cover
134387913 Whirlpool Refrigerator Primary Overload Relay
14WP4387558 Whirlpool Refrigerator Compressor Grommet
14876811 Whirlpool Grommet
15WP2225785 Whirlpool Refrigerator Start Device
16Support Block
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
202212996 Whirlpool Refrigerator Retainer
21Nut (Not Serviced)
22Grommet
27WP489128 Whirlpool Refrigerator Screw
28W10309988 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
313400518 Whirlpool Oven Foot Mount Screw
32WPW10662129 Whirlpool Refrigerator Run Capacitor
32WP4387764 Whirlpool Run Capacitor
37WP8281196 Whirlpool Screw
39Air Baffle
40W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
422187382 Whirlpool Refrigerator Wire Harness
43Blade, Fan
44WP486692 Whirlpool Refrigerator Nut
45Plate
46Tube, Discharge
47Tube, Suction
48W11676464 Whirlpool Tube
58VALVE, ACCESS (5/8“)
58VALVE, ACCESS (1/2“)
58WP978025 Whirlpool Refrigerator Valve
58REFRIGERANT CHARGE 4.0 Ozs. (R134A)
58Following Parts Not Illustrated and Optional Parts Not Included
58978030 Whirlpool Refrigerator Valve
58876764 Whirlpool Refrigerator Primary Valve
58978027 Whirlpool Refrigerator Primary Valve
58978026 Whirlpool Refrigerator Primary Valve
588201826 Whirlpool Refrigerator Evaporator Tray
