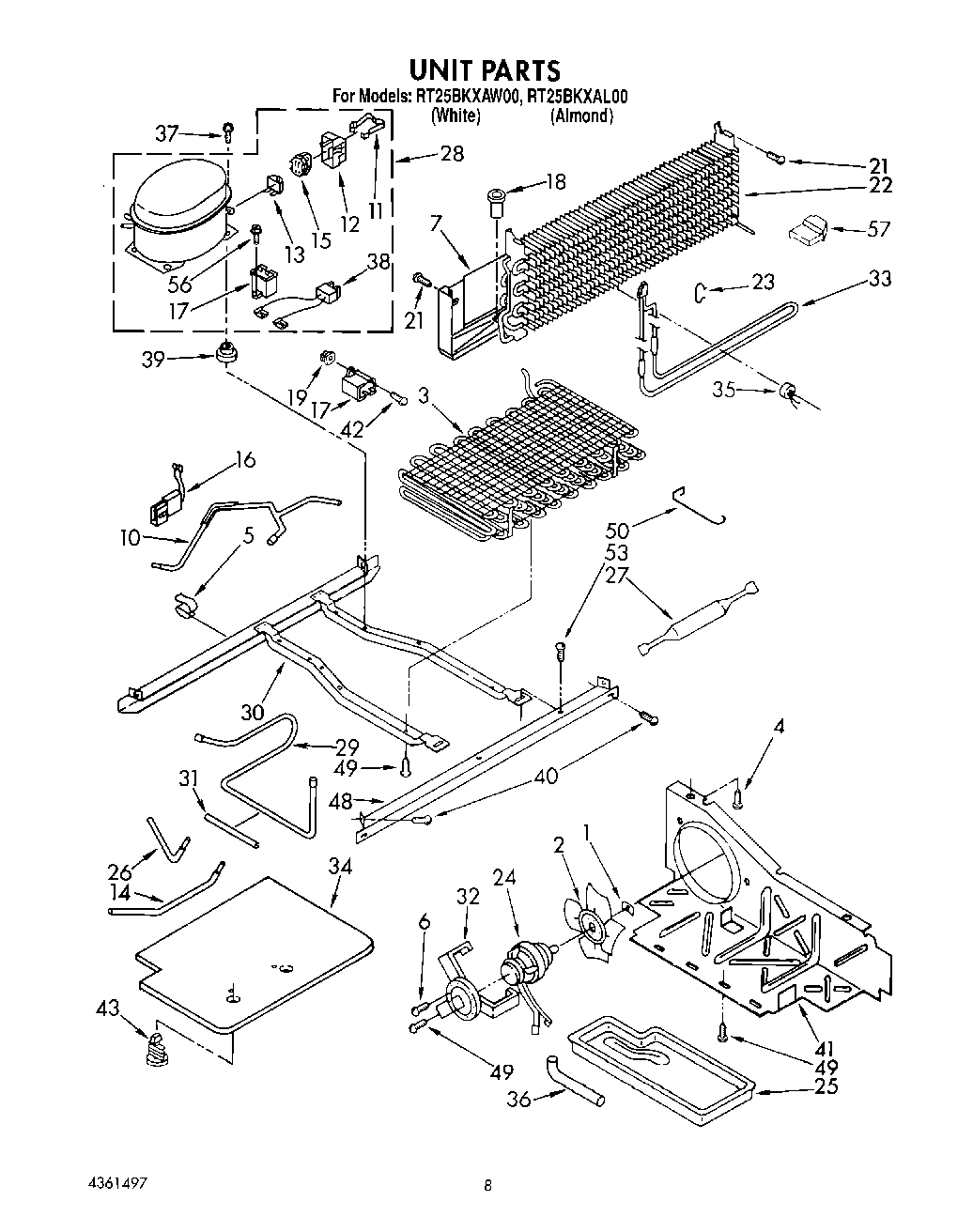

RT25BKXAL00 05 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489478 Whirlpool Refrigerator Screw
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
10	Tube, Discharge
11	Strap
11	WPW10339879 Whirlpool Wire Tie
12	Cover
13	4388953 Whirlpool Overload Relay
14	Tube, Condenser To Heat Loop
15	Relay (See Overload)
16	Housing Plug
17	Running Capacitor (Service)
18	Drain Fitting
19	Screw Grommet
21	WP965173 Whirlpool Dishwasher Screw
22	Evaporator
23	Support, Heater
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
26	2154109 Whirlpool Refrigerator Tube
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 11, 12, 13, 15, 17 & 38) (Also Order)
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	Tube, Suction
30	2304904 Whirlpool Frame Assembly
31	SLEEVE
32	Fan, Motor Bracket
33	Heater, Defrost
34	Cover, Unit Bottom
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
36	Drain Extension
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air Baffle
43	489396 Whirlpool Refrigerator Clip
48	2305374 Whirlpool Refrigerator Unit Rail
49	WP489464 Whirlpool Refrigerator Screw
50	Guard, Fan
53	WP489427 Whirlpool Refrigerator Screw
56	W11693756 Whirlpool Screw Assembly
57	978027 Whirlpool Refrigerator Primary Valve
57	VALVE, ACCESS (5/8“)
57	VALVE, ACCESS (1/2“)
57	Wedge, Air Baffle
57	WP978025 Whirlpool Refrigerator Valve
57	876764 Whirlpool Refrigerator Primary Valve
57	978026 Whirlpool Refrigerator Primary Valve
57	978030 Whirlpool Refrigerator Valve
