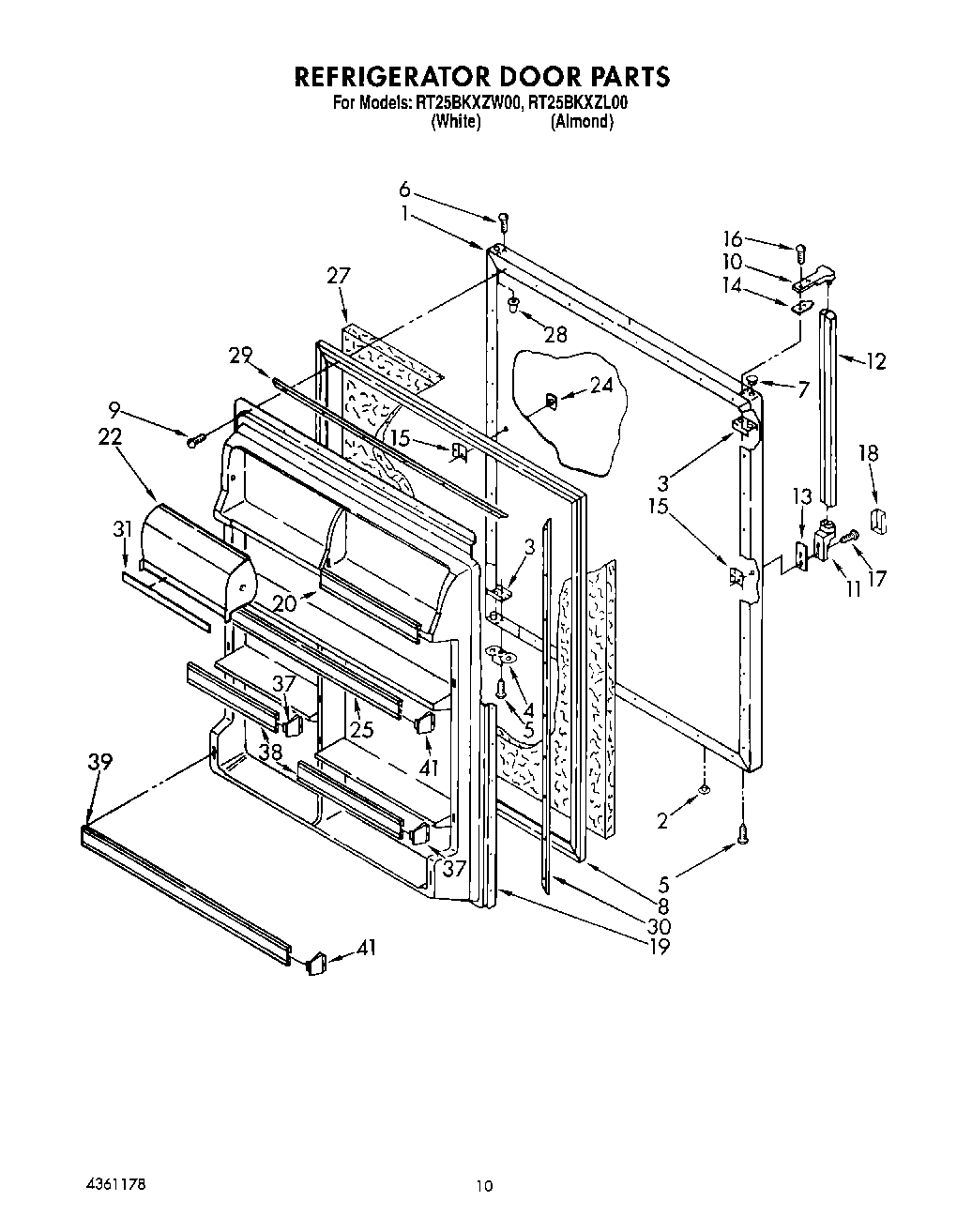

RT25BKXZW00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (White)
1	Panel, Refrigerator Door (Almond (Also Order Item 27))
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End,
12	Handle, Center
13	Shim, Handle
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Cover, End Cap
19	Interior Door Panel
20	Trim, Door Compartment
22	Door, Compartment
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
25	Trim, Shelf
27	WPL 876029
28	Cap, Hinge Sleeve (2)
29	Retainer, Gasket
30	Retainer, Gasket
31	Trim, Door
37	4388286 Whirlpool Refrigerator Shelf Bar Endcap Kit 2 Pack White
38	Trim, Door Shelf
39	Trim, Door Shelf
41	End Cap, Trim (4)
41	See Complete Cross-Reference Listing Film Card 800-A-1
