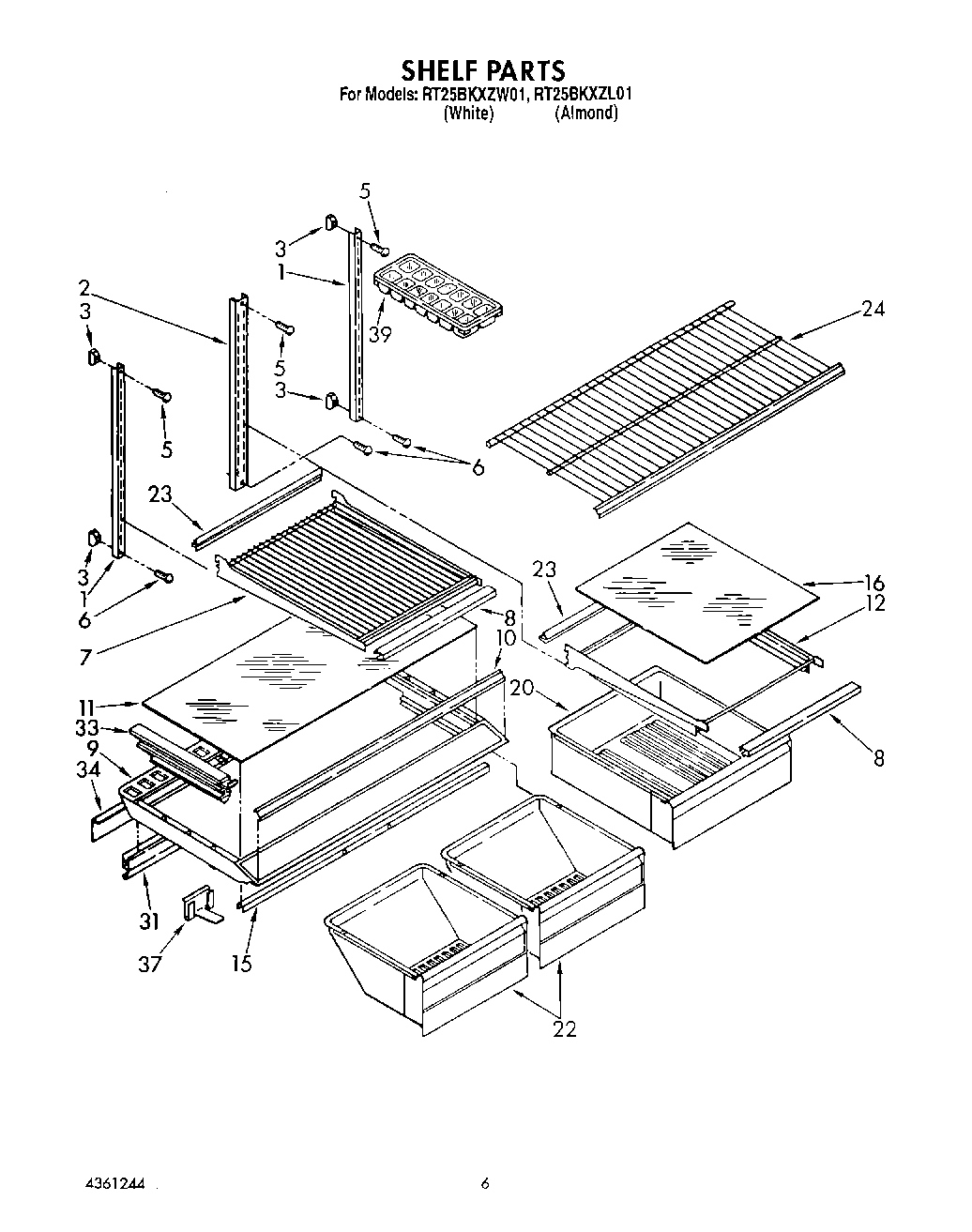

RT25BKXZW01 04 – SHELF, LIT/OPTIONAL

Written by

Products

Position	Product
	Torx Key
	WPL LIT2154989
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	WPL LIT2152554
	WPL LIT2152553
	WPL LIT4361244
1	Shelf, Ladder (2)
2	Shelf Ladder, Center
3	520965 Whirlpool Refrigerator Support
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever
8	Trim, Shelf
9	Crisper Cover
10	Trim, Crisper Cover
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
15	Support, Cover
16	Shelf, Glass
20	Pan, Meat
22	Pan, Crisper
23	Retainer, Shelf
24	Shelf, Freezer
31	Crisper, Gasket Rear
33	Crisper Track, Center
34	Support Bar
37	Clip (3)
39	285006 Whirlpool Spray
39	350942 Whirlpool Spray Paint
39	WP841180A Whirlpool Microwave Glass Turntable Tray
39	212643 Whirlpool Refrigerator Permagum Sealer
39	Almond (Uncut)
39	Leveler (Thinner)
39	WP72107 Whirlpool Touchup
39	799344 Whirlpool Refrigerator Paint
39	72017 Whirlpool Appliance Touch-Up Paint White
39	350956 Whirlpool Spray Assembly
39	511873 Whirlpool Refrigerator Paint
39	606755 Whirlpool Refrigerator Bag
39	833938 Whirlpool Refrigerator Terminal
39	72032 Whirlpool Touch Up Paint Black
39	WPL 876029
39	WPL 799833
39	CEMENT, ALUMILASTIC (1 1/4 OZ.)
39	WP542638 Whirlpool Refrigerator Grease
39	WP505587 Whirlpool Refrigerator Sealer
39	WP503695 Whirlpool Refrigerator Sealer
39	TAPE, VINYL (3/4 X 108“)
39	876370 Whirlpool Refrigerator Insulation
39	350930 Whirlpool White Spray Paint
