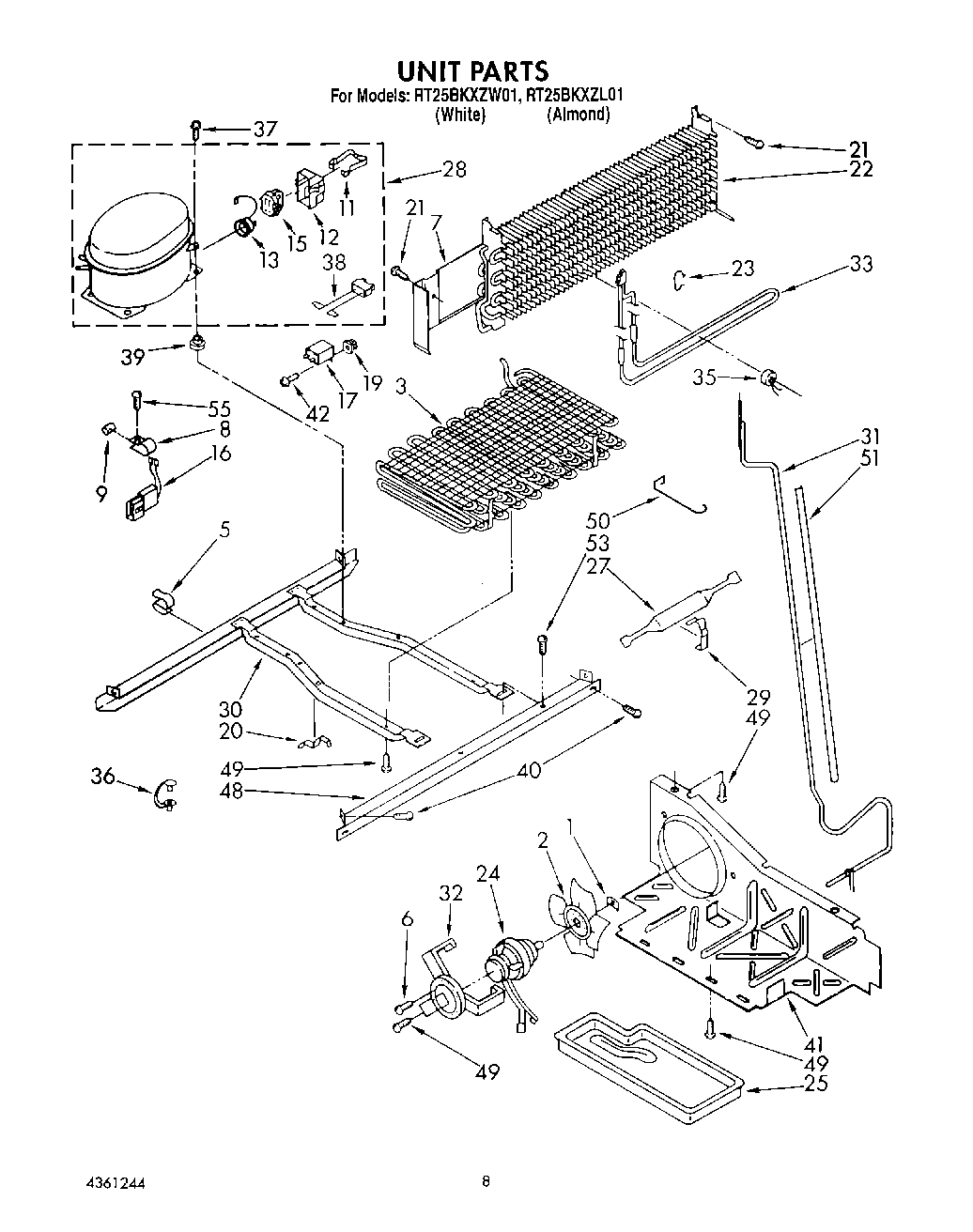

RT25BKXZW01 05 – UNIT

Written by

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
8	Clamp Tube
9	Dampener (2)
11	case spring
11	Strap
12	Case, Relay
12	Cover
13	Overload
13	Overload (Service (Includes Relay))
15	Relay (See Overload)
16	Housing Plug
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
17	Running Capacitor (Service)
19	Screw Grommet
20	Clip (2)
21	WP965173 Whirlpool Dishwasher Screw
22	Evaporator
23	Support, Heater
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 11, 12, 13, 14, 15, 38 & 39) (Also Order)
29	Clamp, Dryer
30	2304904 Whirlpool Frame Assembly
31	Exchanger, Heat
32	Bracket, Motor
33	Heater, Defrost
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
36	Clip, Wire (2)
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	W11693756 Whirlpool Screw Assembly
48	2305374 Whirlpool Refrigerator Unit Rail
49	Screw, 8 x 3/8
50	Guard, Fan
51	WP2002171 Whirlpool Refrigerator Sleeve
53	WP489427 Whirlpool Refrigerator Screw
55	978026 Whirlpool Refrigerator Primary Valve
55	978027 Whirlpool Refrigerator Primary Valve
55	978030 Whirlpool Refrigerator Valve
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
55	WP978025 Whirlpool Refrigerator Valve
55	VALVE, ACCESS (1/2“)
55	876764 Whirlpool Refrigerator Primary Valve
55	VALVE, ACCESS (5/8“)
