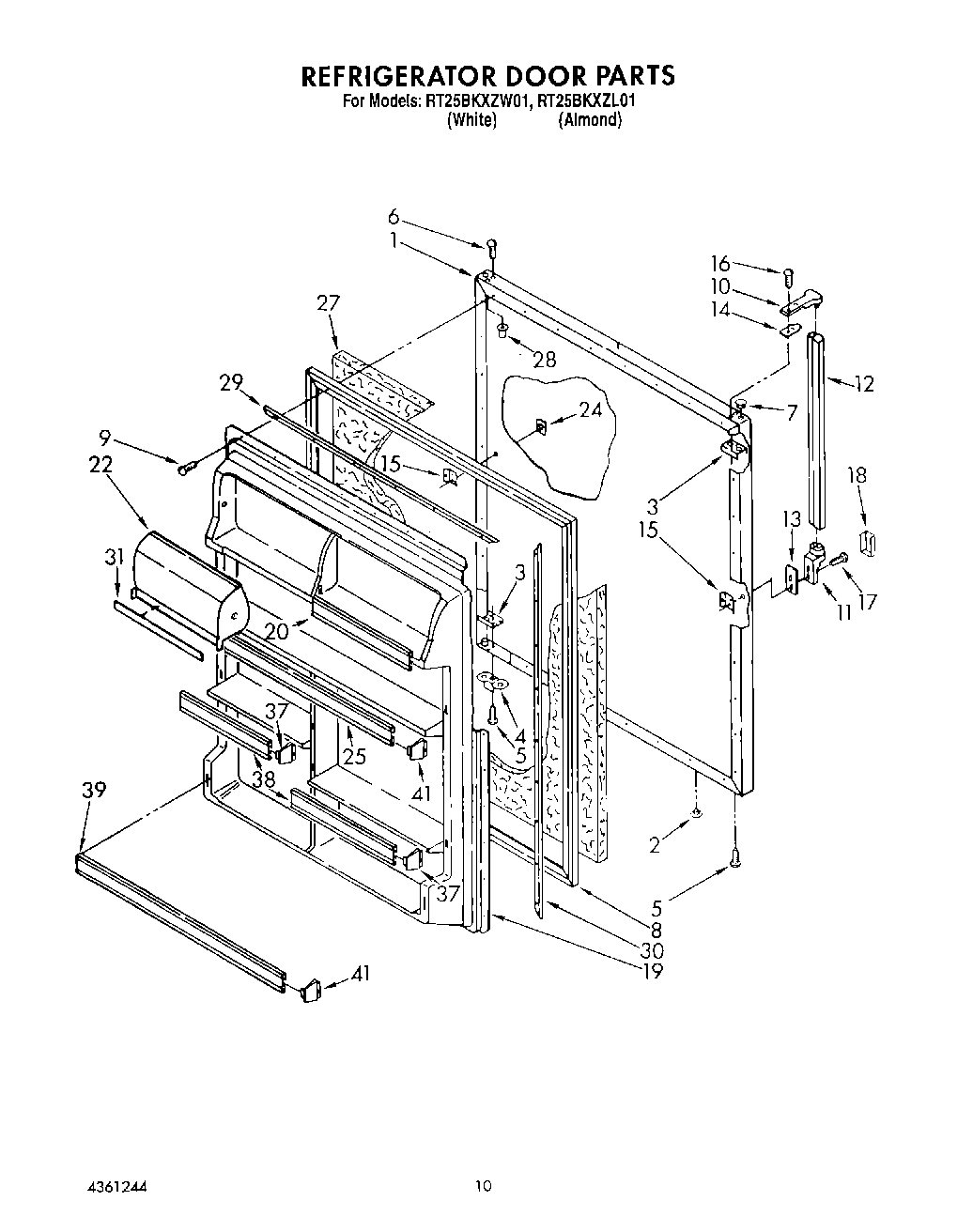

RT25BKXZW01 06 – REFRIGERATOR DOORadmin2025-04-26T12:50:27+00:00RT25BKXZW01 06 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Panel, Refrigerator Door (White) |
| 1 | Panel, Refrigerator Door (Almond (Also Order Item 27)) |
| 2 | Hole Plug (2) |
| 3 | W10833053 Whirlpool Refrigerator Plate |
| 4 | Bracket, Door Stop |
| 5 | WP488921 Whirlpool Refrigerator Screw |
| 6 | WP8281206 Whirlpool Refrigerator Screw |
| 7 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 7 | Hole Plug (Almond) |
| 8 | Door Gasket, Magnetic |
| 9 | WP489069 Whirlpool Compactor Screw |
| 10 | Handle End |
| 11 | Handle End, |
| 12 | Handle, Center |
| 13 | Shim, Handle |
| 14 | Spa |
| 15 | WP939101 Whirlpool Refrigerator Plate |
| 16 | WP488920 Whirlpool Refrigerator Screw |
| 17 | WP488729 Whirlpool Refrigerator Door Screw |
| 18 | Cover, End Cap |
| 19 | Interior Door Panel |
| 20 | Trim, Door Compartment |
| 22 | Door, Compartment |
| 24 | Hole Plug, Handle (Almond) |
| 24 | WP2189000 Whirlpool Refrigerator Handle Plug |
| 25 | Trim, Shelf |
| 27 | WPL 876029 |
| 28 | Cap, Hinge Sleeve (2) |
| 29 | Retainer, Gasket |
| 30 | Retainer, Gasket |
| 31 | Trim, Compartment Door |
| 37 | 4388286 Whirlpool Refrigerator Shelf Bar Endcap Kit 2 Pack White |
| 38 | Trim, Door Shelf |
| 39 | Trim, Door Shelf |
| 41 | End Cap, Trim (4) |
| 41 | See Complete Cross-Reference Listing Film Card 800-A-1 |
