RTD2100DAE 06 – UNIT COMPARTMENT & SYSTEM
Written by
in

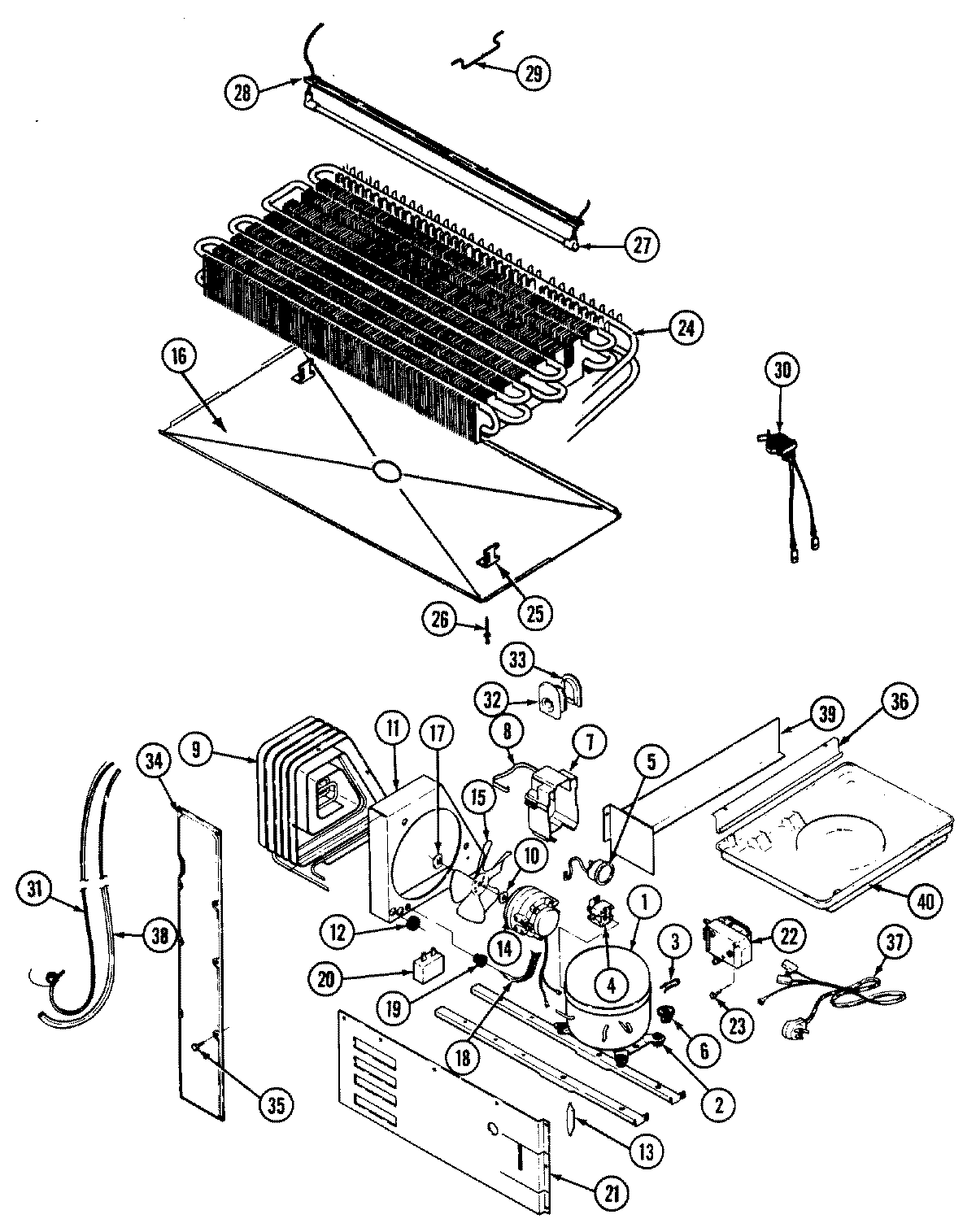

RTD2100DAE 06 – UNIT COMPARTMENT & SYSTEM
Products
Position
Product
NI
MAY 16000327
NI
MAY 61001068
1
MAY RA1032
2
MAY 17245-4
3
MAY 52778-2
4
WP10097202 Whirlpool Refrigerator Start Device
5
4388953 Whirlpool Overload Relay
6
MAY 52656-2
7
MAY 69754-1
8
MAY 59596-1
9
MAY 60434-3
9
MAY 414001-1
9
MAY 60408-2
10
MAY 69063-1
11
MAY 66228-1
12
MAY 53351-1
13
MAY 13900
14
MAY 65275-33
14
MAY 68445-1
14
MAY 61001016
15
WP12587601 Whirlpool Refrigerator Condenser Blade
16
MAY 69118-2
17
WP486692 Whirlpool Refrigerator Nut
18
MAY 69181-1
19
MAY 56933-1
20
WP65889-4 Whirlpool Refrigerator Capacitor
21
WP488729 Whirlpool Refrigerator Door Screw
21
MAY 69138-2
22
WP68233-2 Whirlpool Refrigerator Defrost Timer
23
MAY 405007-1
24
MAY 69822-7
25
MAY 60108-2
26
MAY 26397-9
27
WP60106-35 Whirlpool Defrost Heater Assembly
28
MAY 60109-5
29
MAY 68935-1
30
MAY 52085-33
31
MAY 65013-22
32
MAY 60068-1
33
MAY 60069-1
34
MAY 70169-2
34
MAY 61001564
34
MAY 60110-2
34
MAY 60177-4
35
MAY 65275-50
36
MAY 60555-1
36
MAY 60555-2
37
MAY 52890-3
38
MAY 61001042
39
WP489478 Whirlpool Refrigerator Screw
39
MAY 66493-1
←
