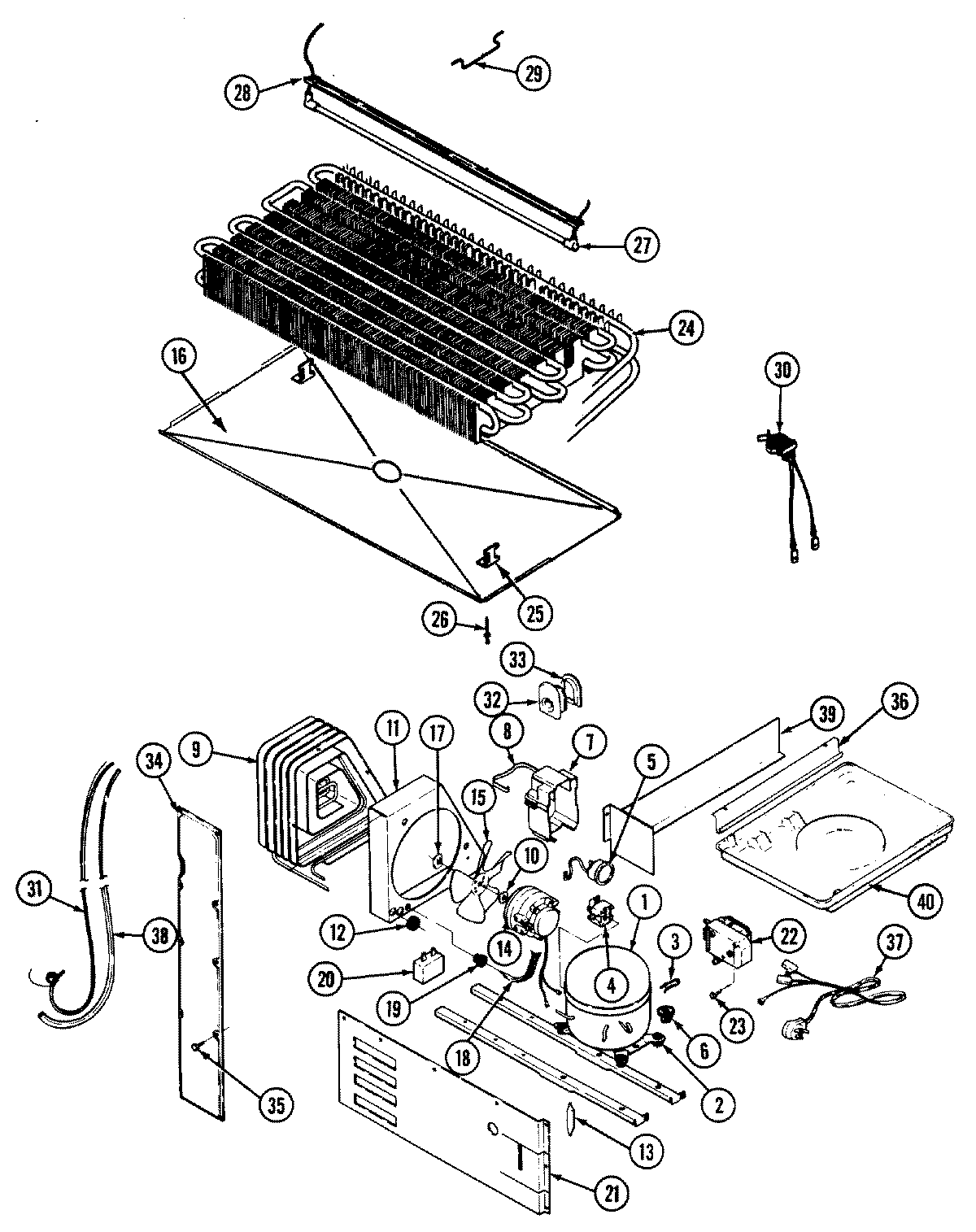

RTD2300DAE 06 – UNIT COMPARTMENT & SYSTEM

Products

Position	Product
NI	MAY 61001068
NI	MAY 16000327
1	MAY RA1032
2	MAY 17245-4
3	MAY 52778-2
4	WP10097202 Whirlpool Refrigerator Start Device
5	4388953 Whirlpool Overload Relay
6	MAY 52656-2
7	MAY 69754-1
8	MAY 59596-1
9	MAY 60408-2
9	MAY 60434-3
9	MAY 414001-1
10	MAY 69063-1
11	MAY 66228-1
12	MAY 53351-1
13	MAY 13900
14	MAY 61001562
14	MAY 68445-3
14	MAY 65275-33
15	WP12587601 Whirlpool Refrigerator Condenser Blade
16	MAY 69118-3
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 69181-1
19	MAY 56933-1
20	WP65889-4 Whirlpool Refrigerator Capacitor
21	MAY 65275-5
21	MAY 61001090
22	WP68233-2 Whirlpool Refrigerator Defrost Timer
23	MAY 405007-1
24	MAY 69822-8
25	MAY 60108-2
26	MAY 26397-9
27	MAY 60106-36
28	MAY 60109-6
29	MAY 68935-1
30	MAY 52085-33
31	MAY 65013-22
32	MAY 60068-1
33	MAY 60069-1
34	MAY 60110-2
34	MAY 70169-2
34	MAY 60177-4
34	MAY 61001564
35	MAY 65275-50
36	MAY 60555-2
36	MAY 60555-1
37	MAY 52890-3
38	MAY 61001042
39	WP489478 Whirlpool Refrigerator Screw
39	MAY 66493-1
