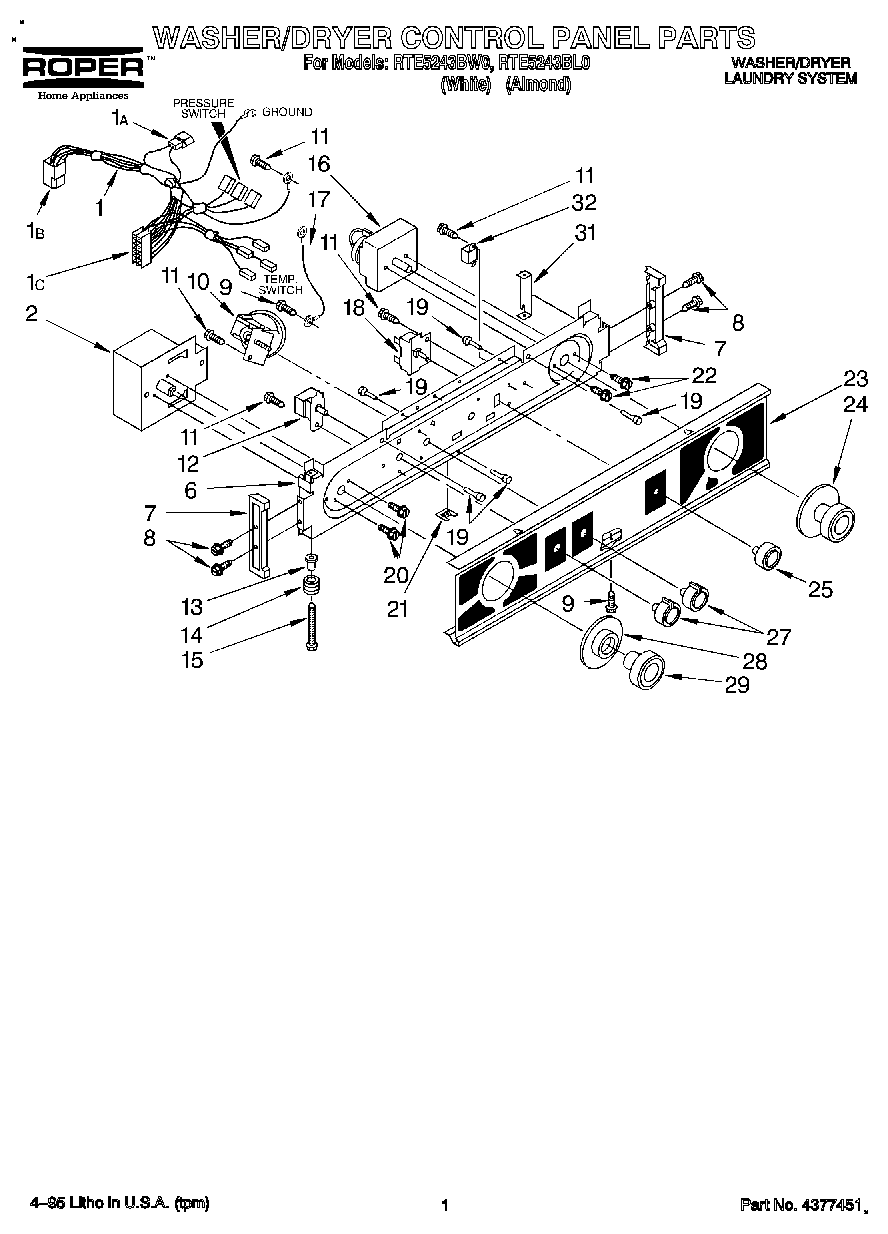

RTE5243BL0 01 – WASHER/DRYER CONTROL PANEL

RTE5243BL0 01 – WASHER/DRYER CONTROL PANEL

Written by

in

RTE5243BL0 01 – WASHER/DRYER CONTROL PANEL

Products

PositionProduct
1Harness, Console Wiring (Automatic) (Includes Illus. 1A, 1B & 1C)
1CW10876590 Whirlpool Connector
1B696073 Whirlpool Connector
1A3350130 Whirlpool Connector
2WP3946432 Whirlpool Timer
6Bracket, Control
7End Cap, Console (L.H. & R.H.)
8NAMEPLATE
9WP694091 Whirlpool Screw
10WP3362987 Whirlpool Washer Water Level Switch
11WP3390631 Whirlpool Screw
12Switch, Water Temperature
13693711 Whirlpool Sleeve
14WP693151 Whirlpool Lock Spring
15Screw, Console Lock (2)
16Timer, Control (60 Hz.) (Dryer) (Timer Motor Not Serviceable)
17Strut, Console
18Switch, Push-To-Start
19693152 Whirlpool Bumper
20WP356418 Whirlpool Screw
21694037 Whirlpool Clip
22WP3400882 Whirlpool Screw
23Panel, Control
24Knob, Timer (Dryer)
25Knob, Push-To-Start
27Knob, Temperature
28Dial, Timer
29280193 Whirlpool Timer Knob
31WP692983 Whirlpool Console Lock
32WP694419 Whirlpool Buzzer Adjuster
