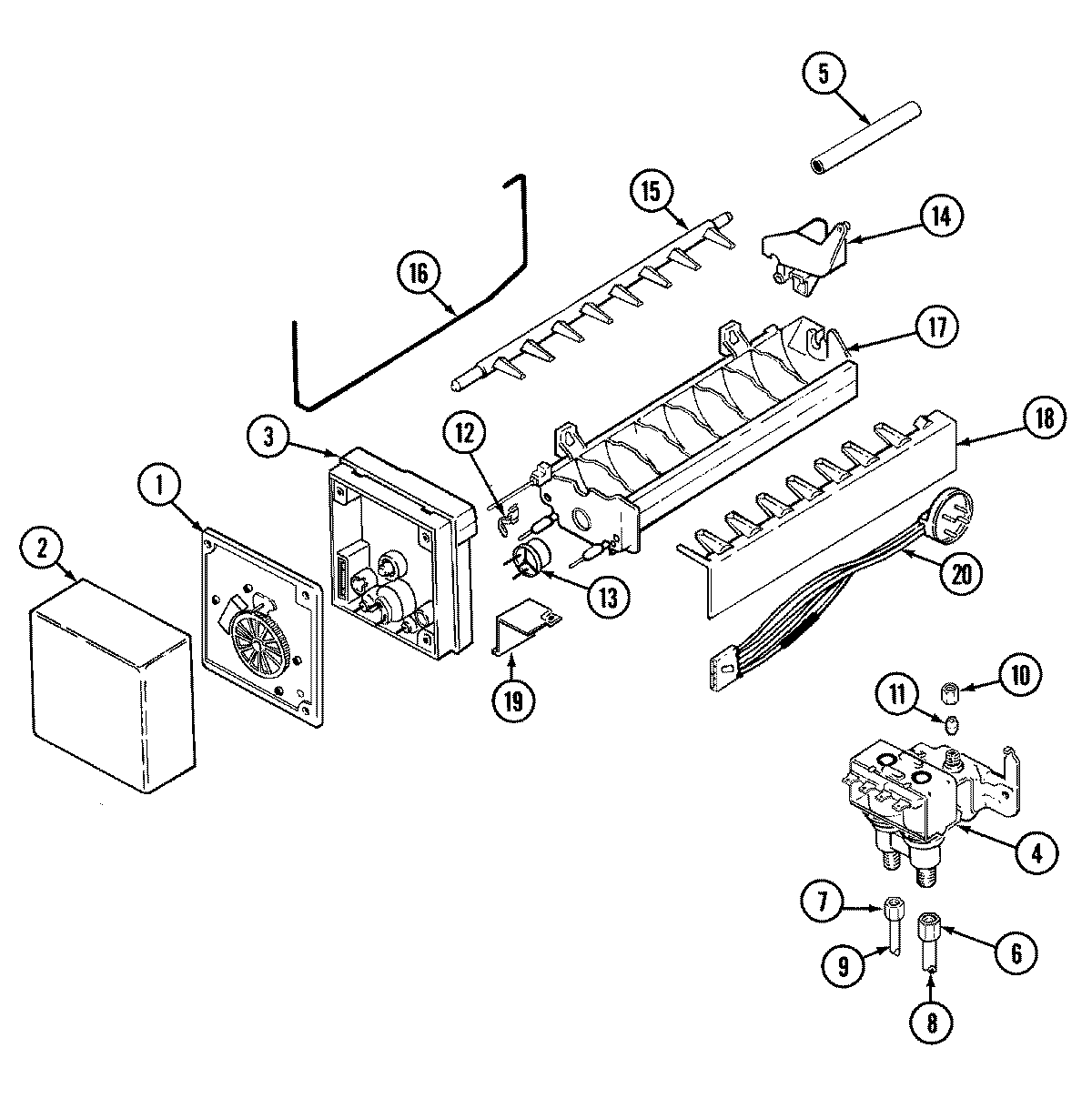

RTEA198AAE 05 – OPTIONAL ICE MAKER KIT

Products

Position	Product
NI	MAY 400021-1
NI	MAY 70198-1
NI	MAY 70198-2
NI	MAY 70198-3
1	MAY 95109-1
2	MAY 68328-2
3	WP2195914 Whirlpool Refrigerator Ice Maker Housing
3	SCREW
4	MAY 69364-1
4	MAY 401017-1
5	MAY 67666-8
6	MAY 69583-2
7	WP627018 Whirlpool Refrigerator Nut
8	MAY 67187-5
9	SCREW
9	W10833902 Whirlpool Refrigerator Clamp
9	MAY 67579-6
10	WP245183 Whirlpool Nut
11	WP487627 Whirlpool Refrigerator Sleeve
12	WP2315522 Whirlpool Refrigerator Clip
13	WP627985 Whirlpool Icemaker Cycling Thermostat
13	MAY 95093-1
14	WP628356 Whirlpool Refrigerator Fill Cup
15	WP627843 Whirlpool Refrigerator Ejector Arm
16	MAY 68112-1
17	WP99003172 Whirlpool Silicone L
17	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
18	WP2182124 Whirlpool Refrigerator Stripper Arm
19	BRACKET, MODULE & HEATER
19	MAY 95108-1
20	MAY 70076-1
20	MAY 68118-1
