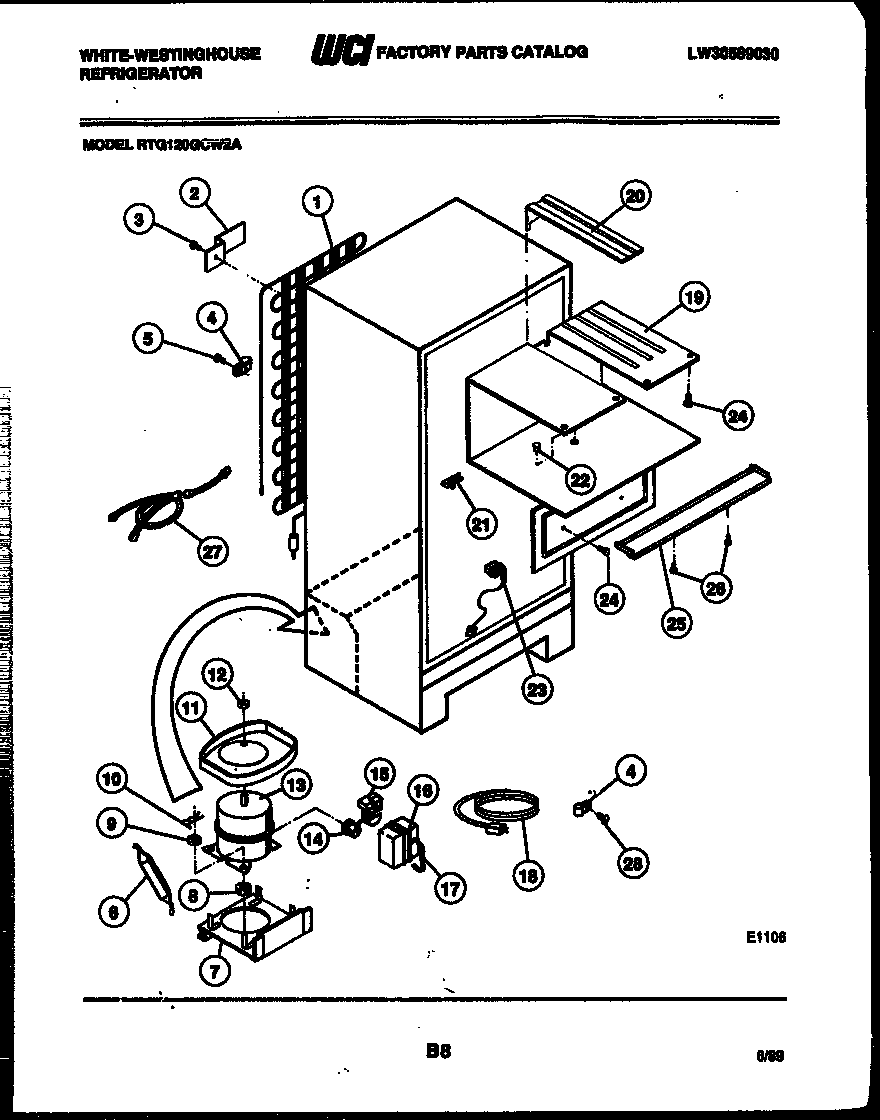

RTG120GCH2A 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*20708	HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
1	WCI G164857
2A	WASHER
2	BRACKET-CONDENSER MOUNTING (4)
3	5308000039 Frigidaire Refrigerator Screw
4	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
5	5304455651 Frigidaire Refrigerator Screw
6	5303305677 Frigidaire Replacement Filter Dryer Filters
7	WCI G162822
8	218513300 Frigidaire Refrigerator Compressor Mount Grommet
9	WASHER, COMPRESSOR MOUNTING (4)
10	CLIP, COMPRESSOR MOUNTING (4)
11C	PAN RETAINER KIT-SERVICE
11A	DEFROST PAN & NUT
11	DEFROST PAN
11B	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
12	NUT, LOCK
13	WCI G186043
14	WCI G187172
15	WCI 3200716
16	WCI G185792
17	STRAP-COVER
18	CORD, SERVICE
19	WCI G186727
20	WCI G189211
21	WCI G178497
22	WCI G164854
23	WCI G186467
24	5304455650 Frigidaire Refrigerator Screw
25	WCI G162980-01
26	SCREW (5)
27	WIRING HARNESS-MAIN
