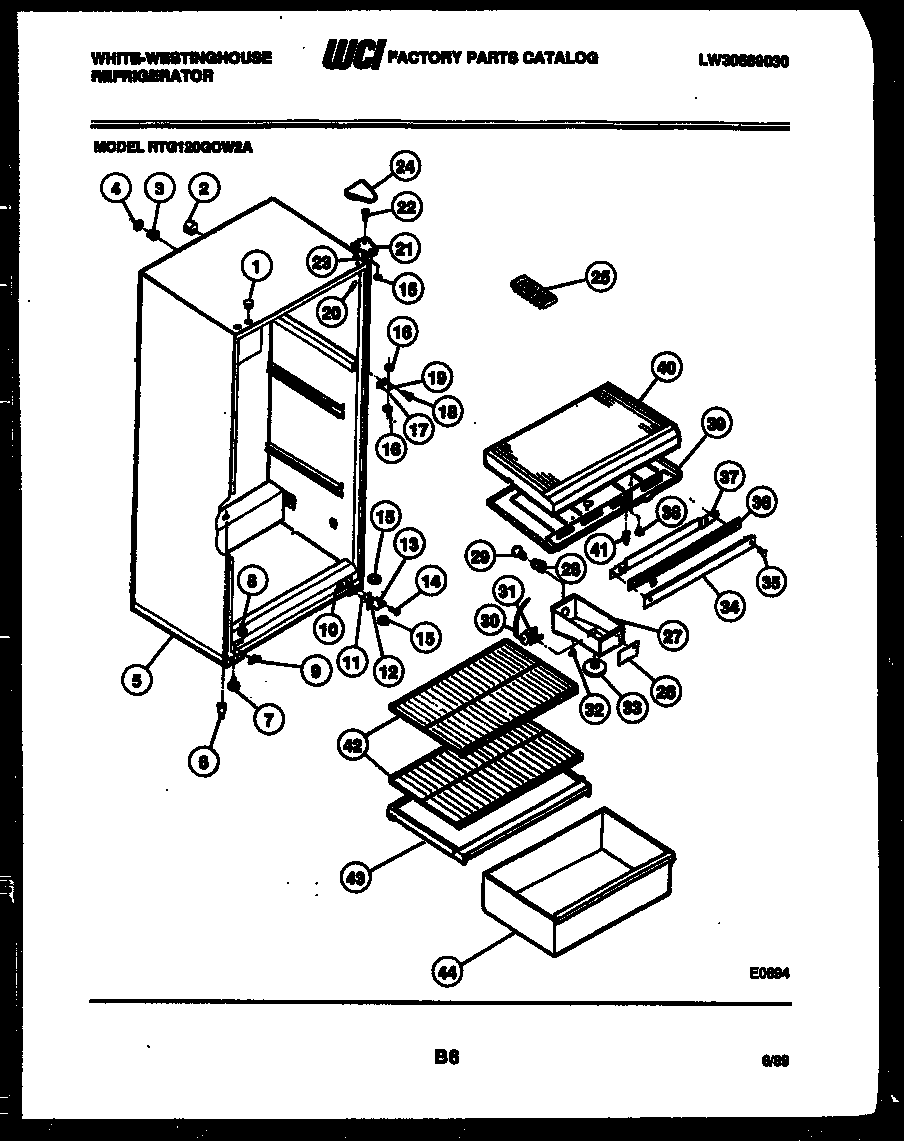

RTG120GCV2A 03 – CABINET PARTS

Products

Position	Product
1	WCI G174747-08
2	TUBE, INSULATION (2)
3	WCI G174733
4	WCI G174734
5	BASE-CABINET
6	CLIP (4)
7	LEG-LEVELING (2)
8	NUT, ANCHOR (2)
9	WCI G166912
10	TAPPING, PLATE (2)
11	SHIM, HINGE
12	BRACKET, HINGE, LOWER
13	5303001321 Frigidaire Refrigerator Lower Hinge Pin
15	WCI G103903
16	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
17	WCI G142220
19	BRACKET, HINGE CENTER
20	TRIM-CAB CORNER-AVOC
21A	TAPPING PLATE (2)
21	BRACKET, TOP HINGE
22	241710601 Frigidaire Refrigerator Screw
23	WCI G183861
24	COVER, TOP HINGE, AVOCADO
25	215667501 Frigidaire Refrigerator Ice Tray Primary
26	WCI G180037
27A	5304455650 Frigidaire Refrigerator Screw
27	WCI G176722-02
28	SOCKET LIGHT
29	316538904 Frigidaire Oven Lamp Light
30	TUBE
31A	WCI G107080
31	WCI G162205-09
32	WCI G176554-01
33	KNOB
34	WCI 3916135
35	SCREW, BRACKET MOUNTING (4)
35A	WASHER (2)
35B	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
36	WCI G187921
37	CLAMP, MULLION MOUNTING
38	SCREW (5)
39	WCI 3016980
40	WCI G163220
41	5309918806 Frigidaire Refrigerator Light Switch Door
42	SHELF-SLIDING (2)
43	COVER
44	WCI G162973-34
