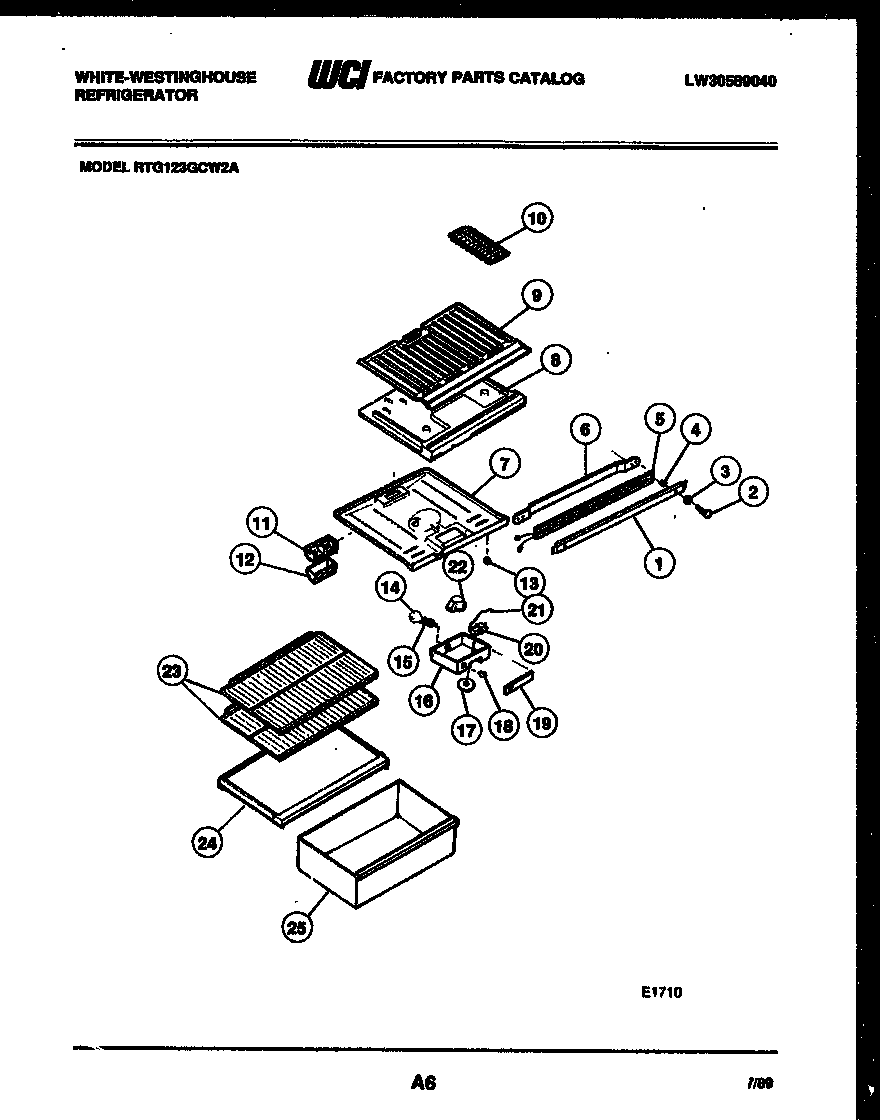

RTG123GCD2A 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 3916134
2	SCREW, BRACKET MOUNTING (4)
3	WASHER (2)
4	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
5	WCI G177567
6	CLAMP, MULLION MOUNTING
7	TOP-REFRIGERATOR
7A	SCREW (5)
8A	WIRING HARNESS-CONTROL
8	DIVIDER-COMPARTMENT
8B	240396801 Frigidaire Refrigerator Tube Clamp
9	BOTTOM ( FREEZER )
9A	PAD, FOAM (2)
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11	DEFLECTOR AIR
12	WCI G162178
13	5309918806 Frigidaire Refrigerator Light Switch Door
14	316538904 Frigidaire Oven Lamp Light
15	SOCKET LIGHT
16B	5304455650 Frigidaire Refrigerator Screw
16	WCI G176722-01
16A	PLUG BTN (NON-ILLUSTRATED)
17	KNOB
18	WCI G178402-02
19	LABEL-BOX
20	CONTROL-TEMP
20A	WCI G107080
21	TUBE
22A	5304455649 Frigidaire Refrigerator Screw
22	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23	SHELF-SLIDING (2)
24	COVER
25	WCI G162973-34
