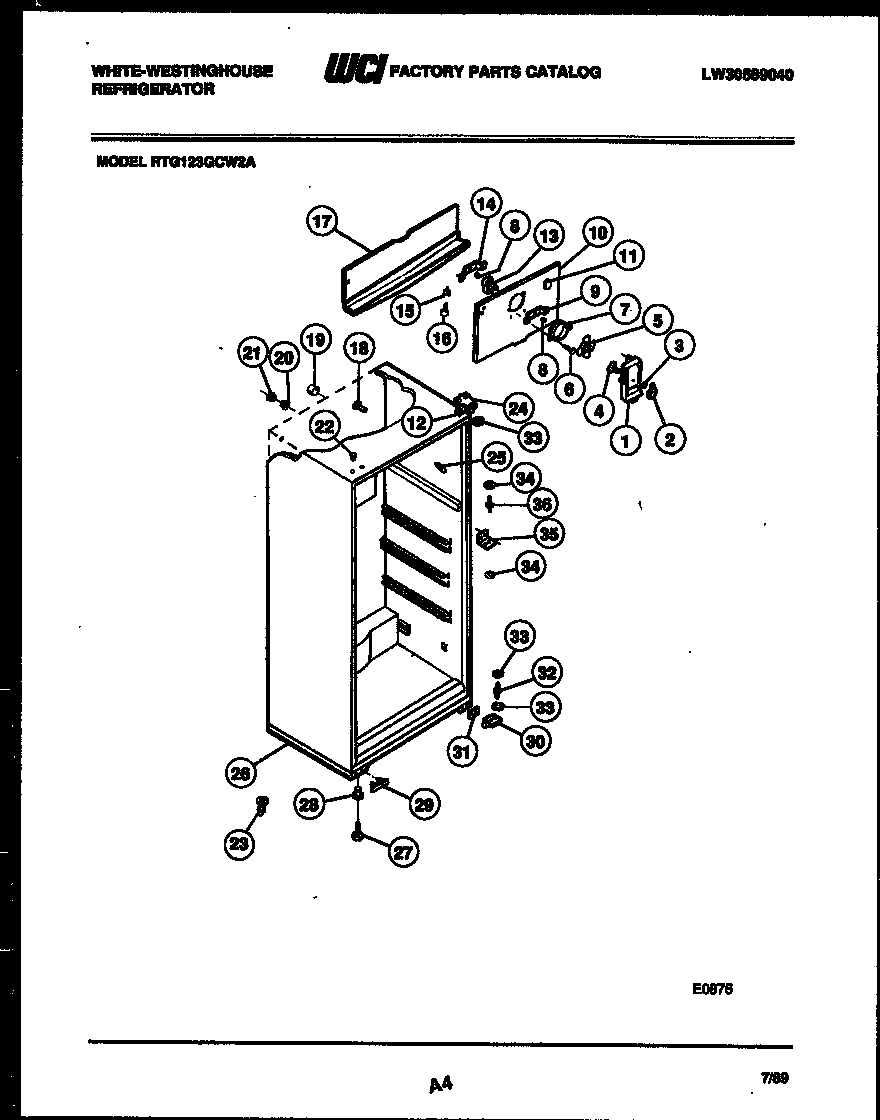

RTG123GCV2A 03 – CABINET PARTS

Products

Position	Product
1A	LABEL-FAN COVER (NON-ILLUSTRATED)
1	WCI G163061-26
2	WCI G162663-13
3	NUT, DAMPER MOUNTING
4	DAMPER FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING, FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI G185302
10A	5304455650 Frigidaire Refrigerator Screw
10	COVER-EVAPORATOR COIL (2)
10B	NUT, ORIFICE (2)
10C	240396801 Frigidaire Refrigerator Tube Clamp
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12	WCI G183861
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI G185303
15	WCI G164571
16	5304455651 Frigidaire Refrigerator Screw
17	WCI G163216
18	WCI G163669
19	TUBE, INSULATION (2)
20	WCI G174733
21	WCI G174734
22	WCI G174747-08
23	CLIP (4)
24A	TAPPING PLATE (2)
24B	241710601 Frigidaire Refrigerator Screw
24	BRACKET, TOP HINGE
25	TRIM-CAB CORNER-AVOC
26	BASE-CABINET
27	LEG-LEVELING (2)
28	NUT, ANCHOR (2)
29	WCI G166912
30	BRACKET, HINGE, LOWER
31A	TAPPING, PLATE (2)
31	SHIM, HINGE
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WCI G103903
34	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
35	BRACKET, HINGE CENTER
35A	SCREW, BRACKET MOUNTING (4)
36	WCI G142220
