RTG123GCW2A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

RTG123GCW2A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

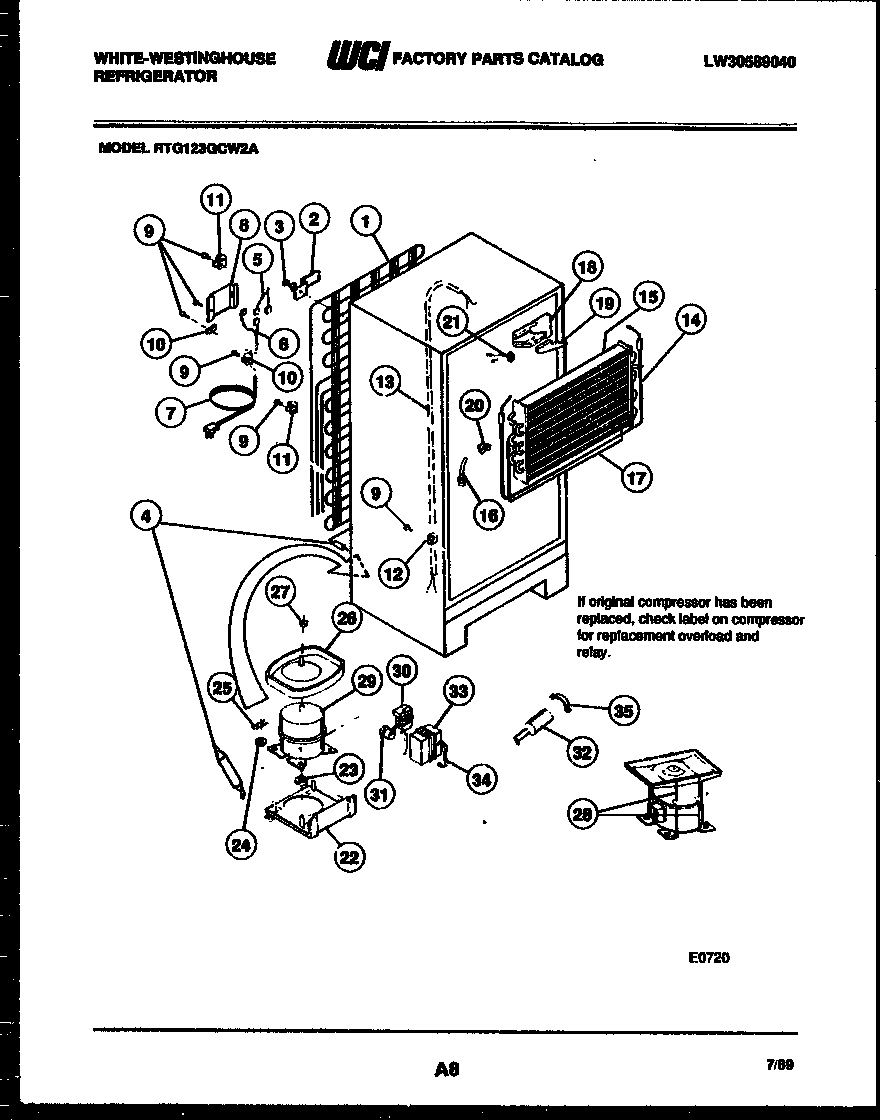

RTG123GCW2A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI G164924
2BRACKET-CONDENSER MOUNTING (4)
35308000039 Frigidaire Refrigerator Screw
3AWASHER
45303305677 Frigidaire Replacement Filter Dryer Filters
5WIRING HARNESS-CONTROL
6HARNESS-COMPRESSOR
7CORD, SERVICE
8WCI G183584
95304455651 Frigidaire Refrigerator Screw
105303001199 Frigidaire Refrigerator Wiring Harness Clamp
11240396801 Frigidaire Refrigerator Tube Clamp
13AWCI 3202596
13WCI 3201663
14WCI G162432-01
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAPORATOR
18BLOCK, EVAPORATOR, RH
19PLUG, EVAPORATOR INSULATION BLOCK, R H
20BLOCK, LEFT SIDE
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI G162822
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER, COMPRESSOR MOUNTING (4)
25CLIP, COMPRESSOR MOUNTING (4)
26A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
26DEFROST PAN & NUT
27NUT, LOCK
28PAN RETAINER KIT-SERVICE
29WCI G190360
30WCI G182225-18
31WCI G188877
32WCI 3018427
345303006412 Frigidaire Refrigerator Cover Mounting Strap
34AHOT TUBE REPAIR KIT (NON-ILLUSTRATED)
35STRAP CAPACITOR
