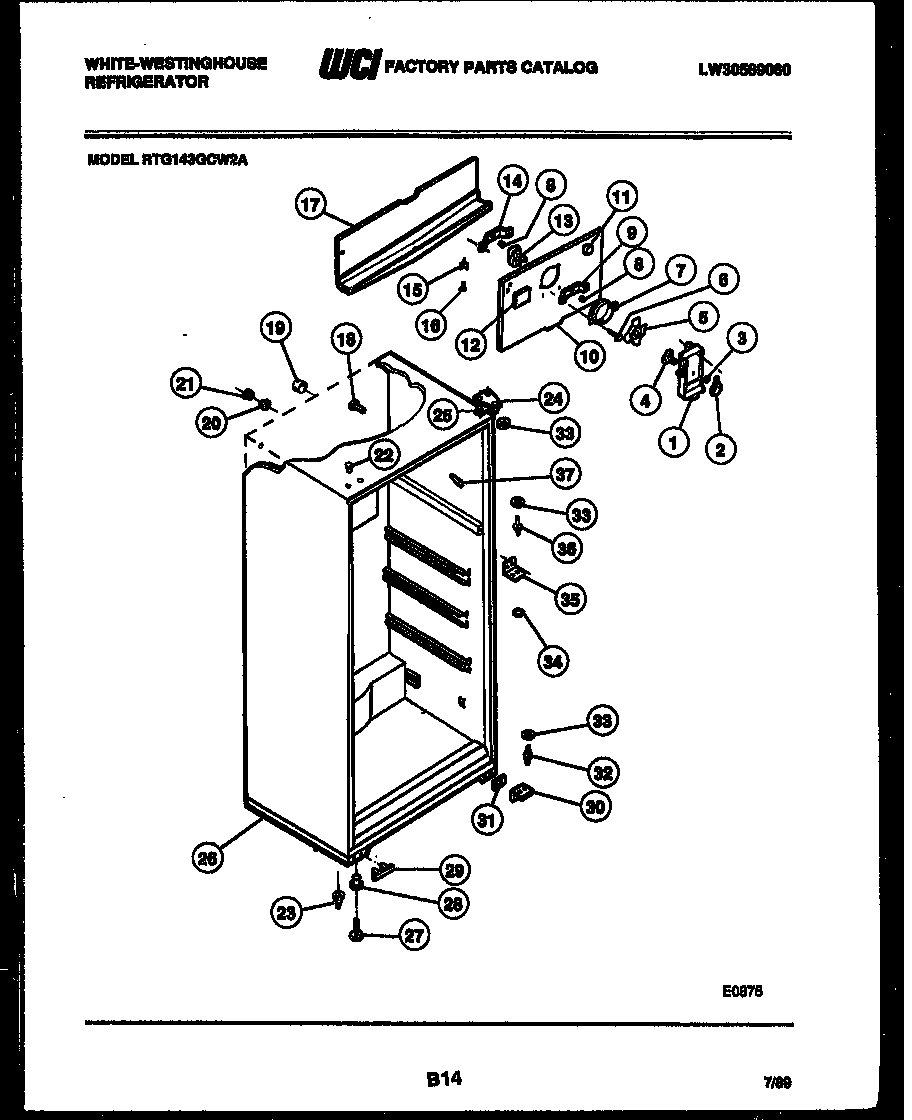

RTG143GCD2A 03 – CABINET PARTS

Products

Position	Product
*20764	BUTTON, LINER
1	COVER-FAN
1B	LABEL-FAN COVER (NON-ILLUSTRATED)
2	KNOB-DAMPER CNTRL
3	NUT, DAMPER MOUNTING
4	DAMPER FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING, FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 3205118
10	COVER-COIL
10C	240396801 Frigidaire Refrigerator Tube Clamp
10B	5304455650 Frigidaire Refrigerator Screw
10A	NUT, ORIFICE (2)
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12	PLUG, DECORATIVE
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI 3205119
15	WCI G164571
16	5304455651 Frigidaire Refrigerator Screw
17	TROUGH-DRAIN
18	WCI G163669
19	TUBE, INSULATION (2)
20	WCI G174733
21	WCI G174734
22	WCI G174747-11
23	CLIP (4)
24B	TAPPING PLATE (2)
24A	241710601 Frigidaire Refrigerator Screw
24	BRACKET, TOP HINGE
25	WCI G183861
26	BASE-CABINET
27	LEG-LEVELING (2)
28	NUT, ANCHOR (2)
29	WCI G166912
30	BRACKET, HINGE, LOWER
31	SHIM, HINGE
31A	TAPPING, PLATE (2)
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WCI G103903
34	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
35	BRACKET, HINGE CENTER
35A	SCREW, BRACKET MOUNTING (4)
36	WCI G142220
37	TRIM CORNER-ALMOND
